43

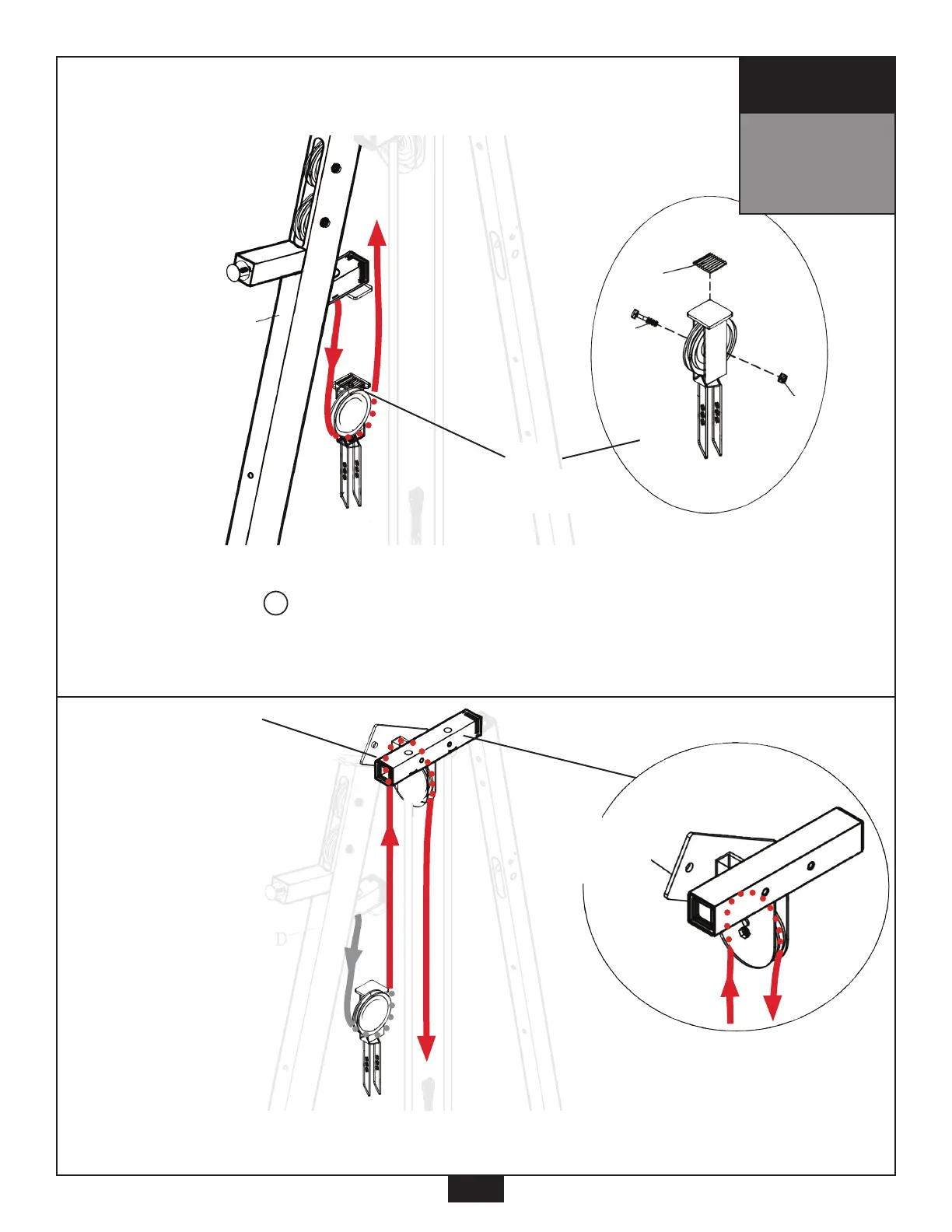

Route the Lat Pulldown Cable d23 from 2” x 4” Upright D through the top of the Double Pulley Holder U2
and then install a Pulley as shown using:
(1) a8 3/8”x 1 1/2” hex head bolt
(1) b2 3/8” nylon locking nut.
Attach Rubber Pad d9 to the top of Double Pulley Holder U2 as shown.
Route the Lat Pulldown Cable d23 up to the Weight Stack Top M, route the cable around the pulley and pull
entire length of Cable d23 through. Route the Lat Pulldown Cable d23 down toward the weight stack.
D
2” x 4” Upright
U2
Double Pulley
Holder
d9
77
77
7
M
Weight Stack
Top
M
Weight Stack
Top
STEP
7.3
77
88
88
b2
a8
NOTE:
Remove nger tightened pulleys as needed. Do Not wrench tighten until the
cables are installed.
To Next Page
