48
STEP
9.1
C
2” x 2” Upright
1
2
d26
Mid Pulley
Cable

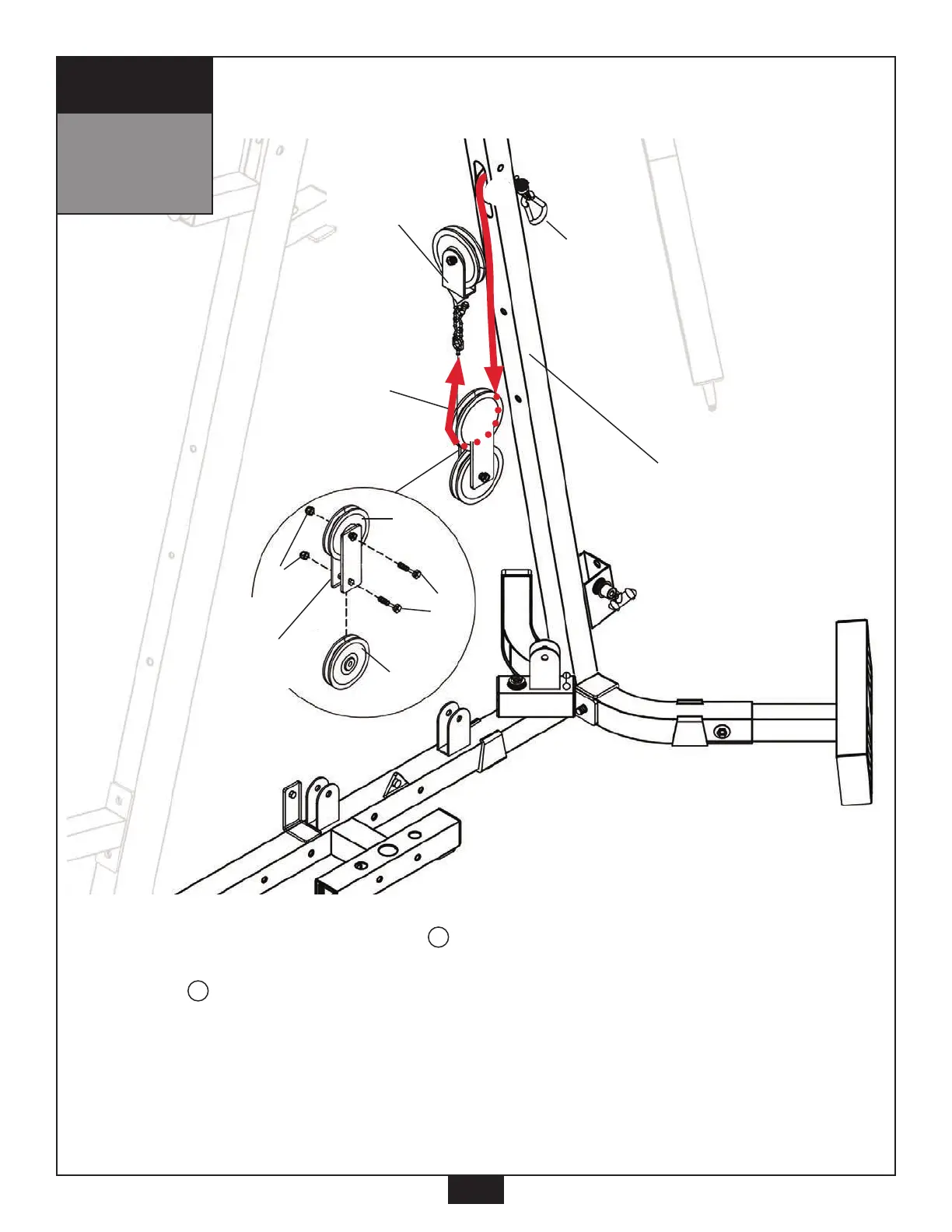

Insert chain end of the Mid Pulley Cable d26 into the opening in 2” x 2” Upright C above the
Back Pad, route the cable above the pulley and pull entire length through.
Route the Mid Pulley Cable d26 down and through the (2) Pulley Rectangles U, and install the
(2) Pulleys between the (2) Pulley Rectangles U as shown using:
(2) a7 3/8” x 1 3/4” hex head bolt
(2) b2 3/8” nylon locking nut
Route the Mid Pulley Cable d26 up from the (2) Pulley Rectangles U and attach to the hook on
the bottom of the Small Pulley Holder W.
NOTE:
At this point you should now wrench tighten all bolts and nuts on this step.
NOTE:
You can remove and reinstall
pulleys as needed.
d20
a7
d6
b2
d6
U
Pulley
Rectangles
1
2
NOTE:
Remove nger tightened pulleys as needed. Do Not wrench tighten until the
cables are installed.
W
Small Pulley
Holder
