52
STEP
10.3
b4
c3
d34
d34
d24
a15
a16

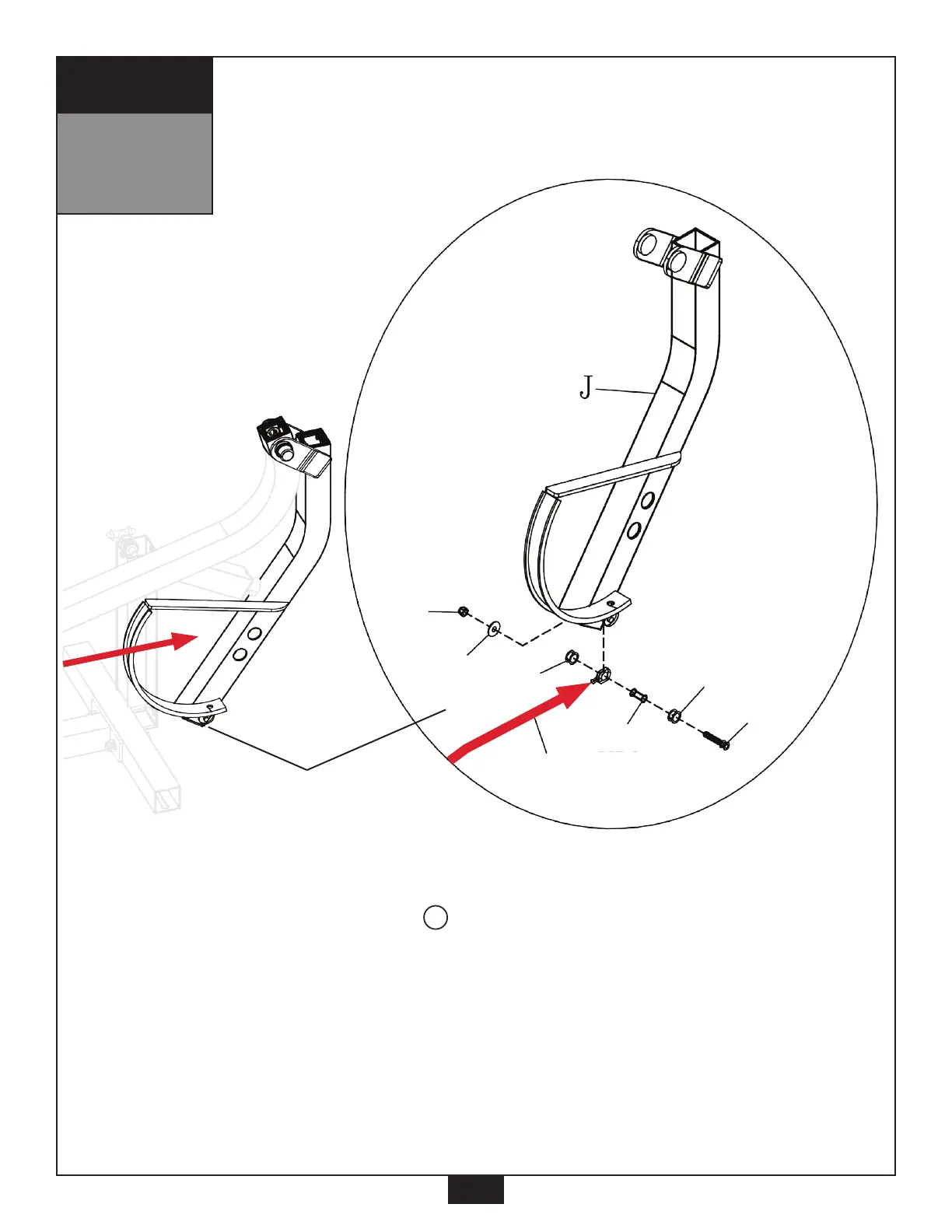

Route the Long Cable d24 forward from Pulley , and attach the Stamped Eye End to the Leg Extension
Frame J as shown using:
(1) a15 5/16”x 1 1/2” hex head bolt
(2) d34 3/4” x 8L steel bushing
(1) a16 1/2” x 22L sleeve
(1) c3 5/16” washer
(1) b4 5/16” nylon locking nut
9
NOTE:
At this point you should now wrench tighten all bolts and nuts on this step.
NOTE:
Remove nger tightened pulleys as needed. Do Not wrench tighten until the
cables are installed.
