STEP
10.2
51

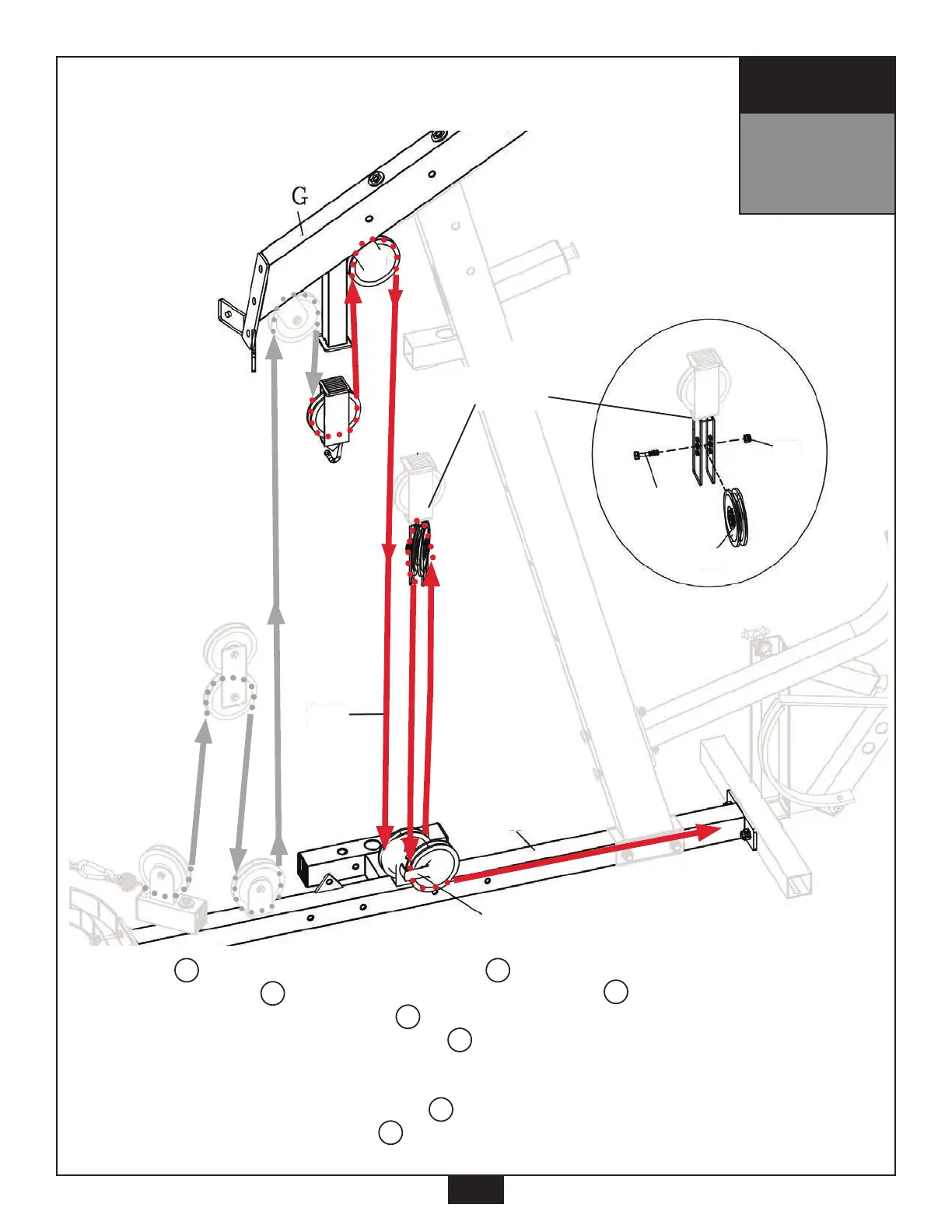

From Pulley route the Long Cable d24 up to Pulley attached to the bottom of Top Frame G and route
the cable around Pulley . Route the Long Cable d24 down to Pulley attached to the double anges
on Main Base Frame A, and around Pulley . Route the Long Cable d24 up and through the bottom of the
Double Pulley Holder U2 and then install a Pulley as shown using:
(1) a8 3/8”x 1 1/2” hex head bolt
(1) b2 3/8” nylon locking nut
Route the Long Cable d24 down toward Pulley , this is the pulley that is off to one side of Main Base
Frame A. Route the cable around Pulley and under the Pulley Cable Guide d18, route the cable d24
forward toward the front of the gym as shown.
5 6
6
7
7
8
9
9
55
88
66
77
99
d24
a8
b2
d6
d18
A
Main Base Frame
U2
Double Pulley
Holder
88
NOTE:
Remove nger tightened pulleys as needed. Do Not wrench tighten until the
cables are installed.
