50
11
22
44
55
33
T
2” x 2” Pulley Frame
A
Main Base Frame
U
Pulley Rectangles
V
Big Pulley
Holder
d20
d20
a12
d24
d9
d6
b2
a8

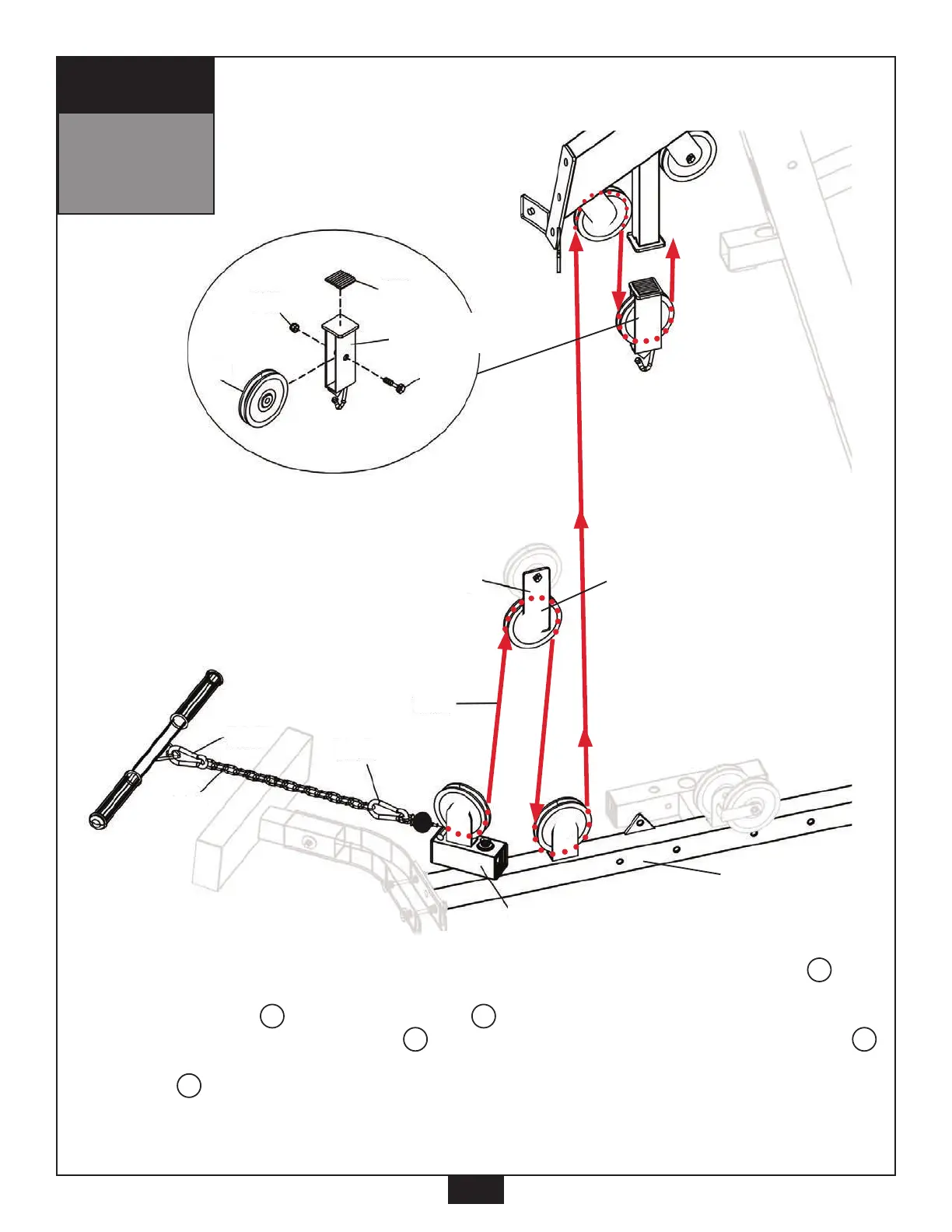

STEP
10.1
Insert the Stamped Eye End of the Long Cable d24 into the Small Pulley Frame T under the pulley and
pull entire length of cable through. Route the Long Cable d24 up and through the two Pulley Rectangles U
around the lower pulley and then down to Pulley attached to the double anges on Main Base Frame
A. Route the Long Cable d24 around Pulley and up from Main Base Frame A, then around the pulley
attached to the bottom of Top Frame G. Route the Long Cable d24 down and through Big Pulley Holder V and
install Pulley inside Big Pulley Holder V as shown using:
(1) a8 3/8”x 1 1/2” hex head bolt
(1) b2 3/8” nylon locking nut
Attach Rubber Pad d9 to the top of Big Pulley Holder V as shown.
1
2
5
3
3 4
Use the lower half of
this oating pulley
NOTE:
Remove nger tightened pulleys as needed. Do Not wrench tighten until the
cables are installed.
To Next Page
