ASSEMBLY INSTRUCTIONS
Page
F500
F500-092007

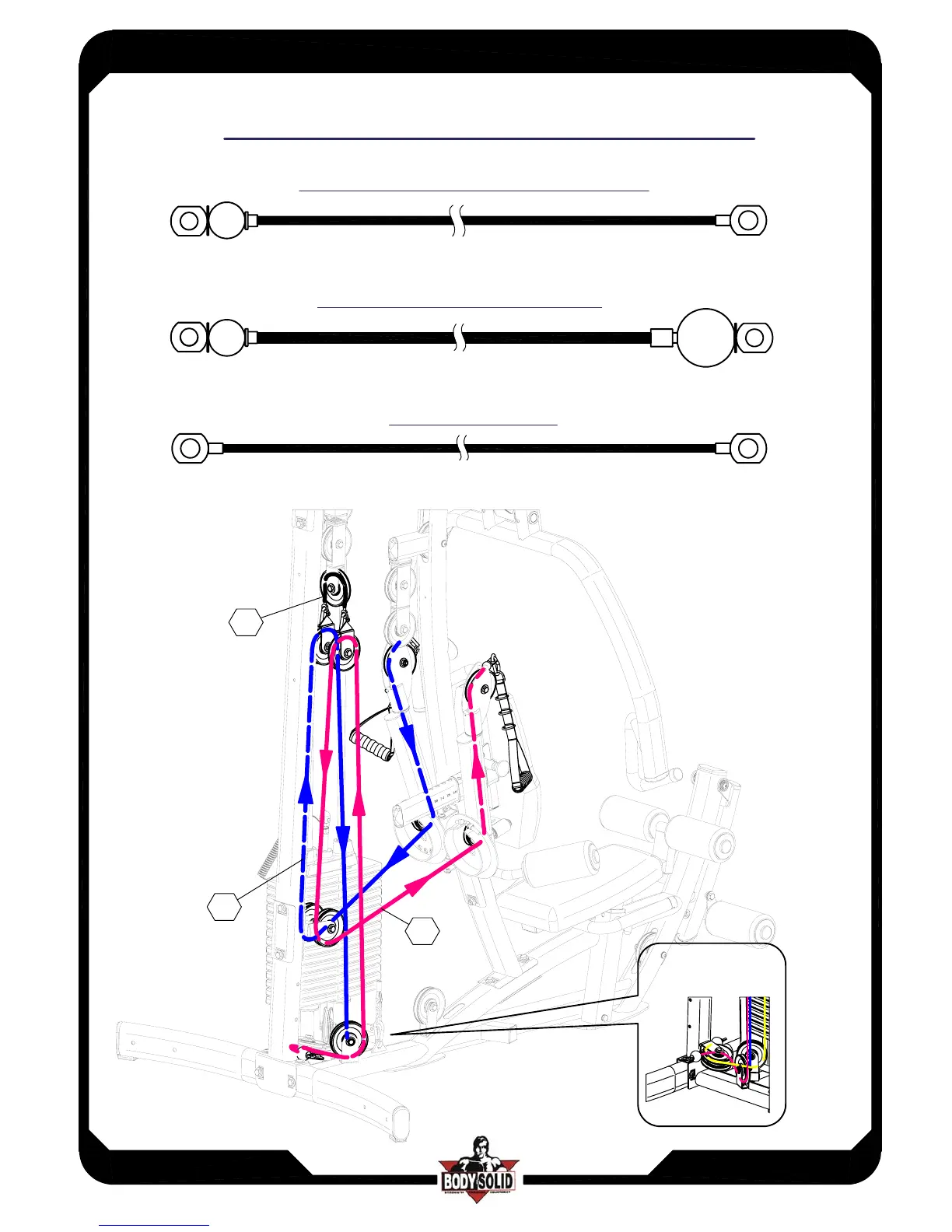

Cable to constitute illustration
DETAIL VIEW
13
FUNCTIONAL TRAINING ARM CABLE (105)
RIGHT ATTACHMENT CABLE (120)
Small Ball End
Small Ball End
Stamped Eye End
Big Ball End
3435mm
3028mm
120
105
SHORT CABLE (109)
775mm
Stamped Eye End
Stamped Eye End
109
