#691110(-) 12/15

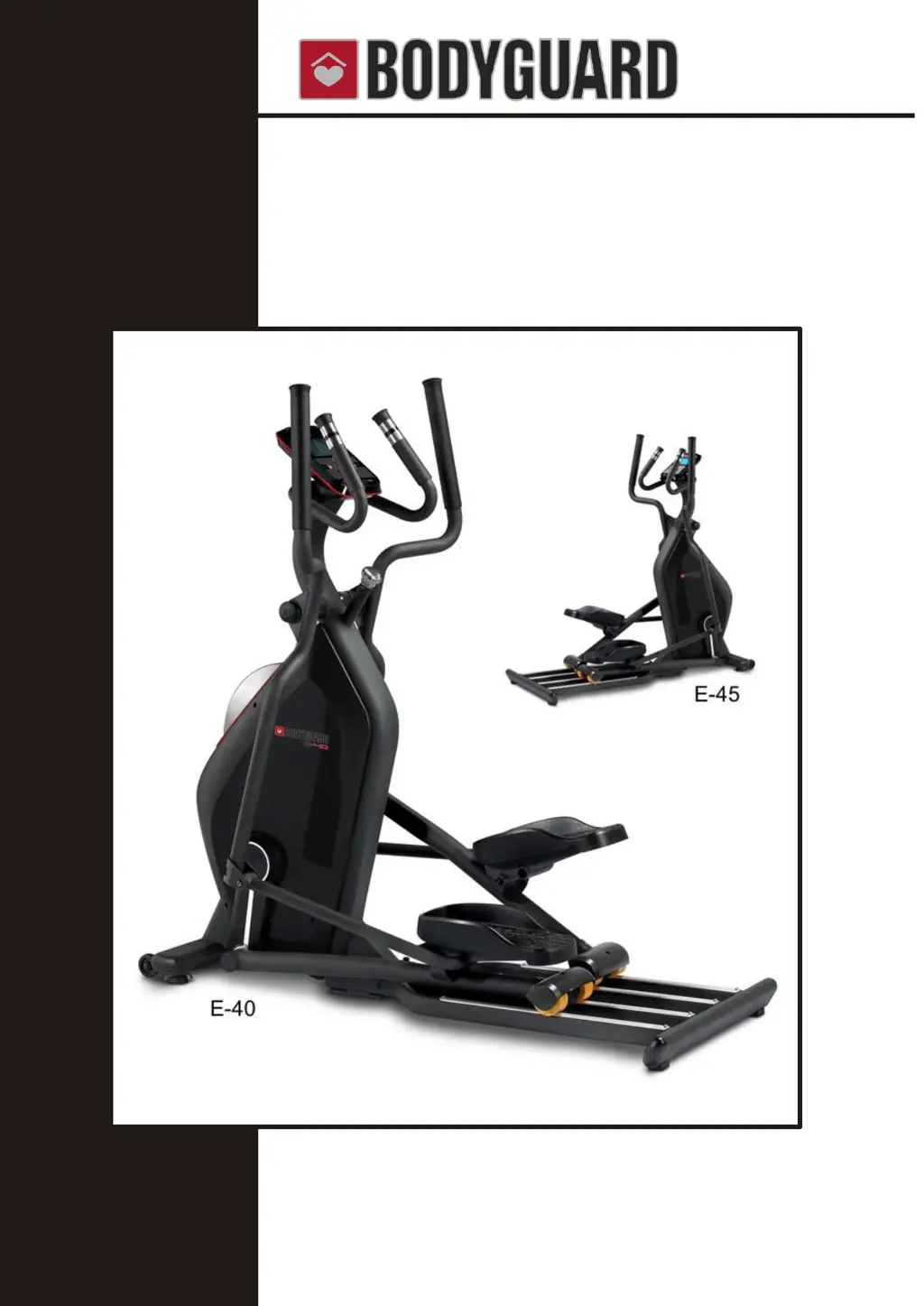

USER MANUAL
E-40 & E-45
ELLIPTICAL
MA
CHINE

Table of Contents

Questions and Answers

  • A
    Andrew SchneiderAug 20, 2025
    Why are the wheels on my Bodyguard Elliptical Trainer squeaking or making loud noises?
    • K
      Kristine WallaceAug 20, 2025
      The wheels on your Bodyguard Elliptical Trainer might be squeaking or making loud noises due to debris or pits on the wheels because the aluminum rails are not clean. To resolve this: * Clean the wheels. * Add a small amount of lubricant to the aluminum rails using a clean cloth. * Rotate the wheels from one side to the other. This may help create a different wear line on the wheel and stop the noise. * If the noise continues, consider replacing the wheel.
  • V
    vwilliamsAug 22, 2025
    What to do if the console on my Bodyguard Elliptical Trainer is not lighting up?
    • A
      Anthony HudsonAug 22, 2025
      If the console on your Bodyguard Elliptical Trainer is not lighting up, it could be due to flat batteries or a damaged console. First, try changing the batteries (2 x AA UM3, 1.5V). If that doesn't work, the console may need to be replaced.
  • I
    istevensonAug 25, 2025
    What to do if the Bodyguard Elliptical Trainer displays erratic readings with the wireless heart rate system?
    • J
      James HughesAug 25, 2025
      If you're experiencing erratic readings with the wireless heart rate system on your Bodyguard Elliptical Trainer: * Ensure the electrodes are adequately moistened with water. * Move the machine away from potential sources of interference. * Use the Diagnostics Menu to check the signal.
  • M
    Ms. Dawn GreenAug 26, 2025
    What should I do if my Bodyguard Elliptical Trainer is making clicking noises?
    • I
      Ivan BuckleyAug 26, 2025
      If your Bodyguard Elliptical Trainer is making clicking noises, consider the following: * Check that your shoelaces are securely tied. * Ensure the shroud screws are tight. * Verify the screws securing the pedals to the pedal link are tight. * Confirm that the securing bolts on the wheels are not loose. * Check that all bolts and nuts securing the stride arms, pedal links, and swing arms are securely tightened.
  • J
    Jerry PatrickAug 28, 2025
    Why is my Bodyguard Elliptical Trainer not showing a reading with the wireless heart rate system?
    • V
      Victoria KerrAug 28, 2025
      If your Bodyguard Elliptical Trainer is not showing a reading with the wireless heart rate system: * Ensure you are using a Polar compatible (5kHz) chest strap transmitter. * Replace the battery in the chest strap transmitter. * Moisten the electrodes with water. * Use the Diagnostics Menu to check the signal.
  • B
    Brian WrightAug 30, 2025
    What to do if Bodyguard Elliptical Trainer shows no reading with contact heart rate system?
    • T
      tyler47Aug 30, 2025
      If your Bodyguard Elliptical Trainer shows no reading with the contact heart rate system: * Ensure the palm of your hands is in direct contact with the metal plates. * Attach all wires/connectors per the wiring diagram. * Inspect wires/connectors for damage. * Change the CHR board. * Change the CHR sensor. * Replace the Display.
  • A
    Anthony JuarezSep 1, 2025
    What to do if my Bodyguard Elliptical Trainer is making rubbing or scraping noises?
    • L
      Luis ReyesSep 1, 2025
      If your Bodyguard Elliptical Trainer is making rubbing or scraping noises: * Check that the flywheel is not making contact with the flywheel cover. * Check that nothing has become stuck on the wheels. * Check that the brake pad is not completely worn down. * Check that nothing is making contact with the drive belt, pulley or flywheel.
  • J
    James VaughanSep 3, 2025
    Why is my Bodyguard Elliptical Trainer displaying a weak reading with the wireless heart rate system?
    • S
      Shannon JonesSep 3, 2025
      If your Bodyguard Elliptical Trainer is displaying a weak reading with the wireless heart rate system: * Replace the battery. * Moisten electrodes with water. * Adjust the chest strap to get a tight fit on the skin. * Use Diagnostics Menu to check signal. There is no solution if the issue is too much body fat.
  • C
    chriswilliamsSep 5, 2025
    What to do if Bodyguard Elliptical Trainer displays erratic readings with contact heart rate system?
    • C
      Connie BrownSep 5, 2025
      If your Bodyguard Elliptical Trainer displays erratic readings with the contact heart rate system: * Grasp the metal sensors and keep your hands in steady contact for 10 seconds. * Dry off excessive moisture. * Moisturize your hands. * Move equipment out of range of interfering force. * Change CHR board. * Replace Display. If the pulse is too light for a consistent reading, try the wireless chest transmitter.
  • N
    Nicolas CamposSep 7, 2025
    What should I do if my Bodyguard Elliptical Trainer is making loud knocking, popping, or vibration noises?
    • L
      larry20Sep 7, 2025
      If your Bodyguard Elliptical Trainer is making loud knocking, popping, or vibration noises: * Check that the front adjustable feet are balanced and locked and all frame connections are tight. * Check for a damaged bearing in a stride arm, link arm, wheel, pulley or flywheel.

Summary

Introduction and Contact Information

Product Warranty Details

Details on product registration and warranty activation.

Bodyguard Fitness Contact Information

Contact details for customer service, sales, and general inquiries.

Important Safety Instructions

Getting to Know Your Elliptical

Main Frame Components Overview

Identifies and labels the main physical parts of the elliptical machine.

E-40 Console Features

Describes the E-40 console display and button functions.

E-45 Console Features

Details the E-45 elliptical's large LCD display and features.

E-45 Console Buttons and Functions

Explains the function of each button on the E-45 console.

Workout Parameters and Glossary

Heart Rate Monitoring and Training

Measuring and Maximum Heart Rate

How to measure heart rate and calculate MHR & zones.

Heart Rate Recovery Test and Training Benefits

Recovery test procedure for E-40 and equipment training benefits.

Exercise Programs Overview

Program Category Grid

Overview of program categories available on E-40 and E-45.

Program Setup and Modes

E-40 Program Setup

How to select and set up programs on the E-40 model.

E-45 Program Setup and Modes

Navigating E-45 programs and understanding program modes.

E-45 Intensity Modes and JustGo Program

E-45 Intensity Modes

Adjusting intensity ranges (Low, Medium, High) on the E-45.

JustGo Program

Starting quick manual workouts with total resistance control.

Basic Program Descriptions

Manual, Calorie, Distance, Cross-Country, Interval Programs

Explains Manual, Calorie Goal, Distance Goal, Cross-Country, Interval programs.

Variety Program Descriptions

Random, Goodbye Fat, Track, Racing Modes Programs

Covers Random, Goodbye Fat, Track, and Racing Modes programs.

Heart Rate Control Program

Advanced Program Descriptions

Heart Rate Intervals, Fitness Test, Advanced Hills Programs

Details Heart Rate Intervals, Fitness Test, Advanced Hills programs.

Race, Beat My Race, Target Watts Programs

Explains Race, Beat My Race, and Target Watts programs.

Specialty Program Descriptions

Smart Reverse, Custom, and Memory Programs

Covers Smart Reverse, Custom Programs, and Memory Programs.

Settings Menu (E-45 only)

Settings Menu Access and Unit Configuration

Accessing menu, language, weight, and distance units.

User ID Management and Statistics

Managing user profiles and statistics.

User ID Details and Warm Up

User ID Creation, Editing, Deletion, and Statistics

Creating, editing, deleting users and viewing statistics.

Warm Up Feature

Optional warm-up period before workouts.

Console Settings: Cool Down to Custom Programs

Cool Down, Pause Time, Big Number, and Custom Programs

Cool down, pause time, big number display, and custom programs.

Console Settings: Memory to Intensity

Memory, Sound, Auto Power Off, and Intensity Range

Memory, sound, auto power off, and intensity range settings.

Diagnostics Menu Overview

Accessing Diagnostics Menu and NVRAM Test

Accessing the diagnostics menu and testing the NVRAM chip.

Diagnostic Tests: Console and Sensors

Keypad, Display, Heart Rate, Sound, USB, Brake, Speed Sensor Tests

Tests for console keys, display, heart rate, sound, USB, brake, and speed sensor.

Diagnostic Data and Calibration

Statistics, Battery Level, and Brake Calibration

Viewing usage data, battery status, and brake calibration.

General Maintenance

Maintenance Timetable

Schedule for cleaning, checks, and lubrication.

Software Updates

Troubleshooting Problems

Display Messages (E-45) and Common Noises

Understanding console messages and diagnosing noises.

Troubleshooting Noises

Noise Troubleshooting: Clicking, Rubbing, Loud Noises

Specific causes and solutions for clicking, rubbing, and loud noises.

Heart Rate Monitoring Troubleshooting

Contact Heart Rate System Issues

Specific problems and solutions for contact sensors.

Wireless Heart Rate System Issues

Specific problems and solutions for wireless transmitters.

General Troubleshooting List

Assembly Guide

E-40 Hardware Parts List

List of hardware components for E-40 assembly.

E-40 Assembly Steps 1-3

Attaching rear frame, swing arms, and pedals for E-40.

E-40 Assembly Steps 4-6

Attaching pedal link, heart rate bar, and console for E-40.

E-45 Assembly Guide

E-45 Hardware Parts List

List of hardware components for E-45 assembly.

E-45 Assembly Steps 1-3

Attaching rear frame, swing arms, and pedals for E-45.

E-45 Assembly Steps 4-6

Attaching pedal link, heart rate bar, and console for E-45.

E-45 Assembly Step 7: Bottle Holder

Attaching the bottle holder for E-45.

Bodyguard E-40 Specifications
