BOGE Operating instructions for
C
16 N...C 30 N, C
16
F N...C
30
F
N
series screw compressors

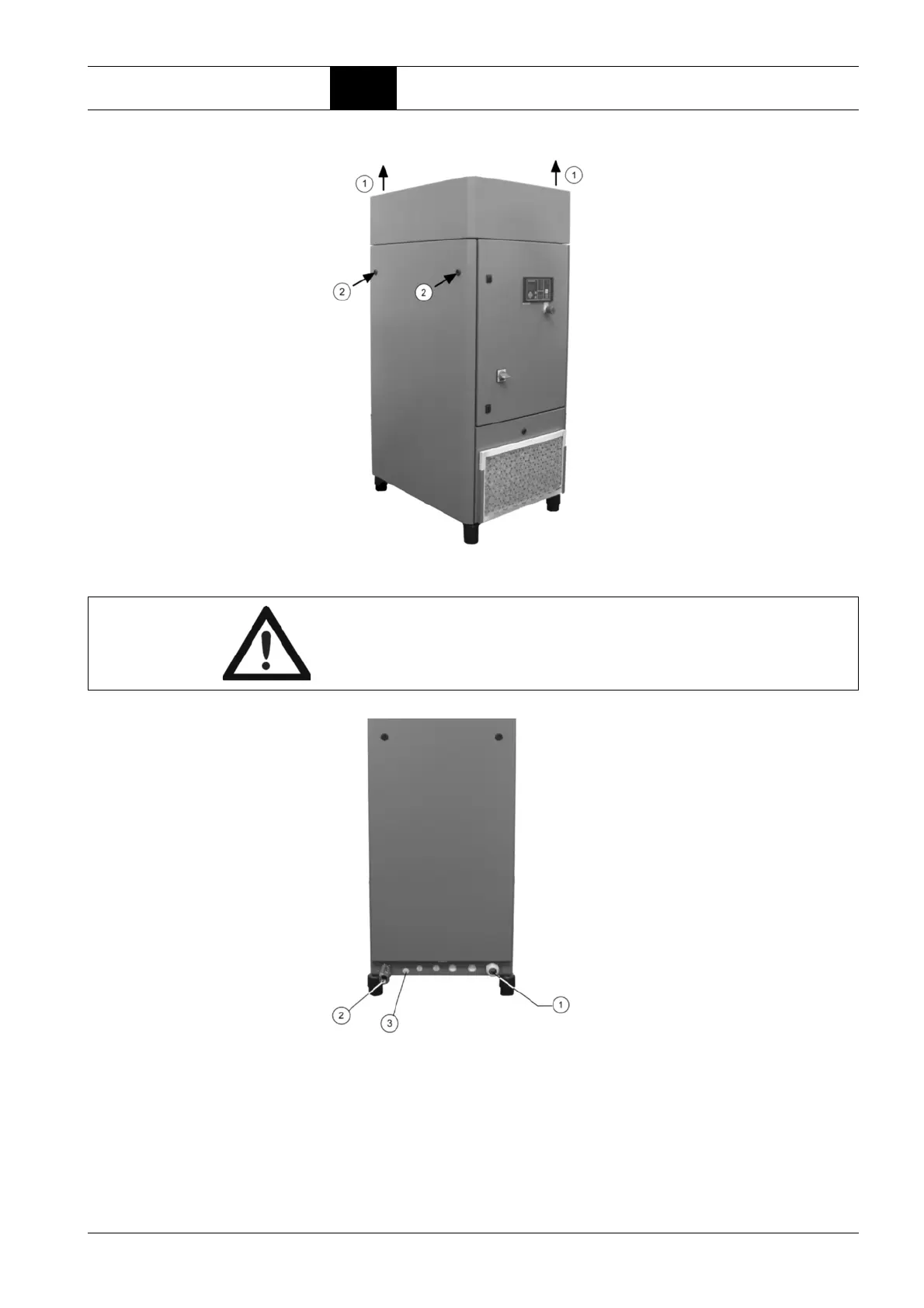

Page 31
Installation
3.3
Installation
Fig. 3.4: Remove cladding
Fig. 3.5: Connect compressor
1
Electrical connection
2
Compressed air outlet
3
Condensate line dryer
W
ARNING!
To avoid damages to the
cooler you mu
st counter
the screw connections at
the compre
ssed air ou
tlet with a sp
anner.
38
40
Table of Contents
Default Chapter
1
Operating Instructions
1
Table of Contents
5
General Safety Instructions
9
Safety Instructions for Compressor Operation
9
Part 1: 1.1 General Safety Instructions
9
Special Hazard Warnings
10
Electrical Energy Hazards
11
Obligations of the Owner
11
Personnel Requirements
11
Personal Protective Equipment
12
Safety Instructions for Maintenance and Repair
12
Accident Prevention Regulations
13
Disposal
13
Introduction
13
Symbols Used
14
Symbols on the Compressor
14
Intended Use
18
Foreseeable Misuse
18
Transport Damage
18
Data on the Type Plate
19
Service
19
Technical Data - Compressor
21
Part 2: 2.1 Technical Data – Compressor
21
Function Description Compressor
25
Function Principle of the Air End
25
Air Circuit
25
Oil Circuit
26
Water Cooling
27
Series Connection
27
Cooling Water
27
Water Connection (for Water Cooling)
27
Cooling Water Quality
28
Compressor Control
28
Network Pressure
28
Operating States
28
Operating Modes
29
Control of Compressors with Frequency Control (C F N)
29
Short Operating Times
29
Safety and Monitoring Devices
30
General
30
Safety Temperature Limiting Device
30
Safety Valve
30
Monitoring the Drive Motor
30
3.1 Transport and Storage
31
Part 3: Transport and Storage
31
General
31
Transport Possibilities
31
Part 3: 3.1 Transport and Storage
31
Intermediate Storage
32
Compressor Room
33
Pressed Air Receivers: Receiver Mounted or Seperately Installed
33
Installation Surface
33
Fire Protection
33
Sound Protection
34
Admissible Environmental Influences
34
Ventilation
34
Cooling Air Requirement
35
Ventilation Possibilities
36
Condensate Disposal
36
Installation
37
General
37
Checking the Delivery Scope
37
Installing the Compressor
37
Connection Condensate Drain
38
Connecting the Compressor to the Compressed Air Network
38
Remove Cladding
38
Activating the Belt Tensioning Device
40
Checking the Oil Level
40
Electrical Connection
40
Commissioning
41
Checking Installation Requirements
42
Checking the Rotational Direction
42
Checking Compressed Air Outlet for Tightness
43
Opening the Stop Valves
43
Checking for Leaks
43
Conducting Trial Run
44
Commissioning Following Extended Stoppages
44
Dismantling
45
BOGE-Duotherm BPT
47
Function
47
Assembly
47
Commissioning
47
Part 4: 4.1 BOGE-Duotherm BPT
47
Maintenance
48
General
49
Faults - Compressor
49
Part 5: 5.1 General
49
Safety Instructions
51
Part 6: 6.1 Safety Instructions
51
General
53
Maintenance through BOGE Customer Service
53
Review of Regular Maintenance Work
53
Maintenance Intervals
54
General Information Concerning the Lubricants Used
56
Disposal of Used Operating Material
56
Pressure Hoses
56
Spare and Wearing Parts
57
Maintenance Work Compressor
57
Cleaning or Changing Suction Filter
57
Cleaning the Filter Cartridge
58
Changing the Supply Air Filter Mats
58
Drive Motors with Permanent Lubrication
59
Changing the V-Belt
59
Settings of the GM-Drive System C 16 N
61
C 16 F N
61
Checking the Oil Level, Topping up Oil
62
Changing the Oil Filter
63
Changing Oil Separators
64
Oil Change
65
Flushing the Oil Circuit
67
Cleaning the Compressed Air/Oil Cooling Unit
67
Function Check of the Safety Valve
68
Inline Filter
69
Spare Parts and Optional Equipment
70
List of Spare and Wearing Parts of the Compressor (for Maintenance)
70
List of Available Optional Equipment
70
Part 7: Flow Chart
71
7.1 Flow Chart
72
Air Cooled Version, Standard, Series C 16 N
72
C 16 F N
72
Water Cooled Version, Serial Connection, Series C 16 N
74
C 20 F N
74
BOGE-Duotherm BPT Plate Heat Exchanger
76
Appendix
77
List of Maintenance and Service Work
77
