BOGE Operating instructions for C 16 N...C 30 N, C 16 F N...C 30 F N series screw compressors Page 55
Maintenance 6.3 Maintenance work compressor
Changing the oil filter
Change:
– After 3000 operating hours, however, no later than after one year.
– With each oil change!
– Slacken screws on service cover (3) and remove cover.
– Pull oil disperser cartridge (1) out of the o-ring seal.
– Check seat of o-ring.
– Lightly oil bottom of new cartridge in and press into o-ring seal.
– Check o-rings on service cover for damage and replace if necessary.
– Fit service cover (3) and tighten screws.
– Open the ball valve at the compressed air outlet.
– Switch on the compressor and heat up to operating temperature.
– Check tightness of service cover and re-tighten screws.

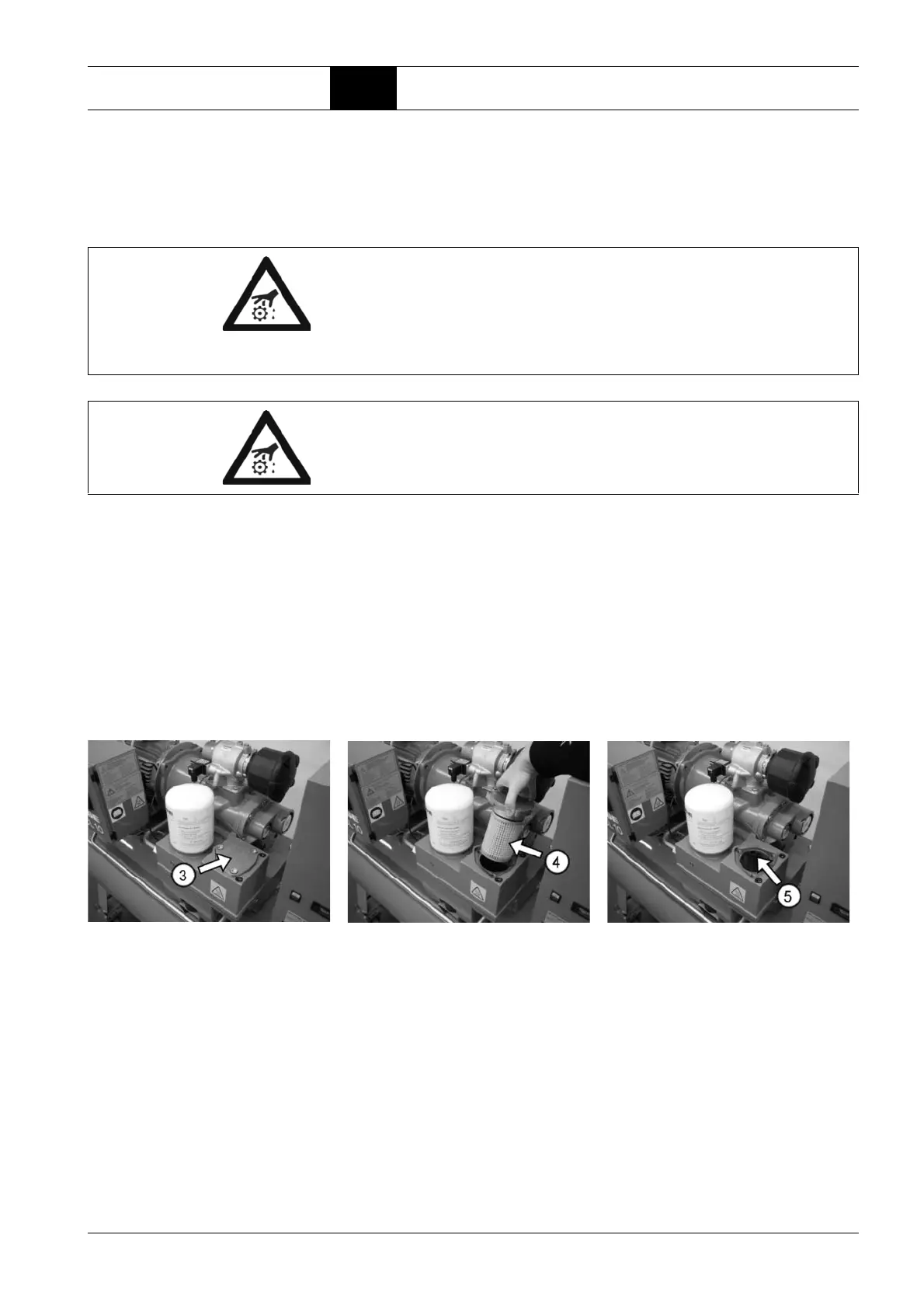

Fig. 6.6: Changing the oil filter / Changing the oil separators
WARNING: Risk of injury!
Do not touch hot surfaces!
– Slacken screws on service cover (3) and remove cover.
– Take out oil filter cartridge (4) and remove from support body (5).
– Slide support body into the new oil filter cartridge.
WARNING: Risk of injury!
Hot surfaces: Do not touch!
