Maintenance 6.3 Maintenance work compressor
Page 54 BOGE Operating instructions for C 16 N...C 30 N, C 16 F N...C 30 F N series screw compressors
Checking the oil level,
topping up oil
Check:
Prior to commissioning/start-up of the compressor.
Then every month.
Topping up:
If the oil level has dropped to a level 0.39 – 0.79 inch below the bottom
edge of the thread.
Switch off the compressor using the OFF button.
Close ball valve at the compressed air outlet.
Vent the compressor (as described in the beginning of the chapter).
Wait approx. 3 minutes to permit the oil to settle.

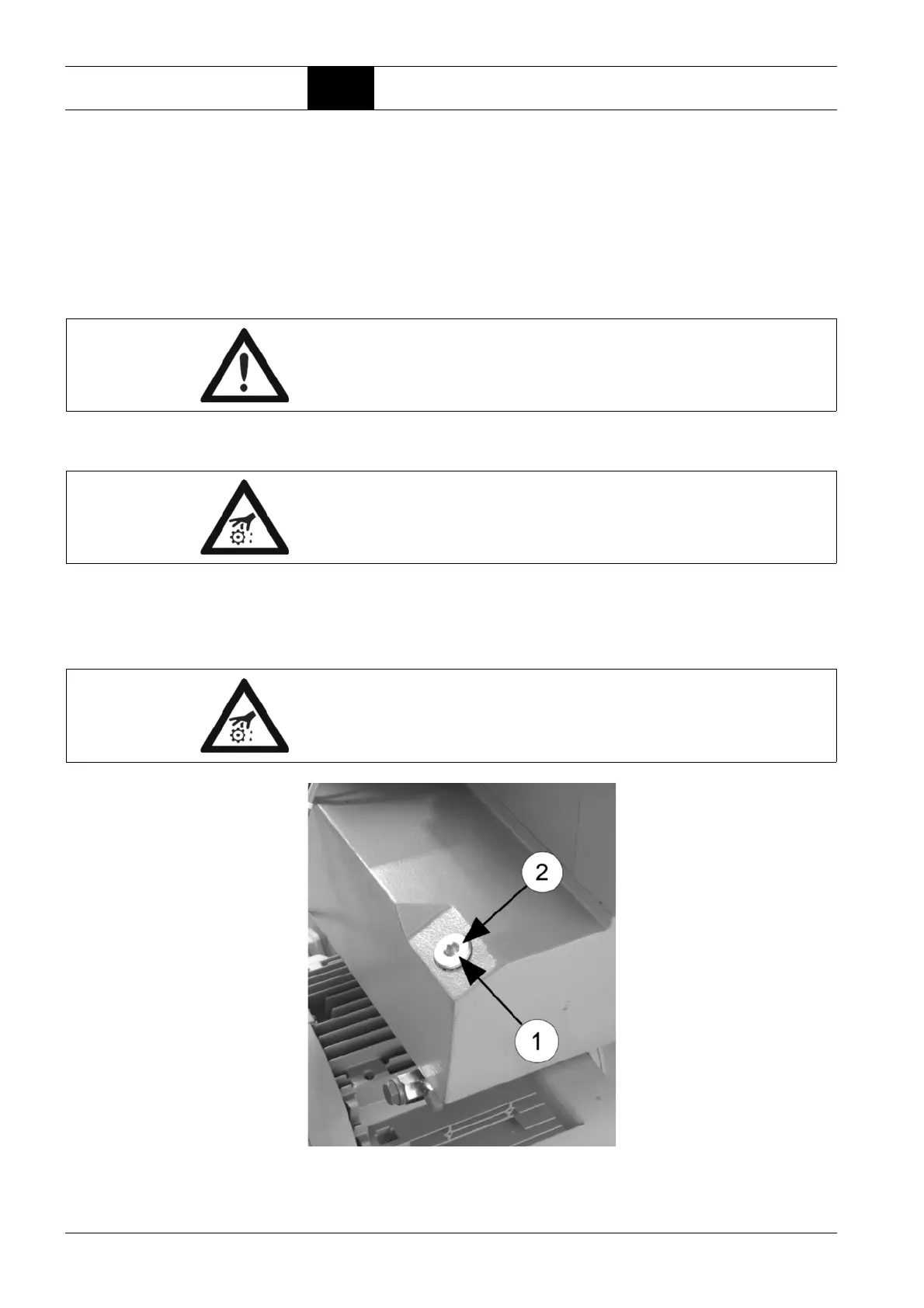

Fig. 6.5: Checking the oil level, topping up with oil
WARNING!
Always use the same oil type when topping up. Never mix different oil types
and brands.
WARNING: Risk of injury!
Actuate emergency-stop switch/button, open mains disconnecting device
and secure by means of lock out tag out.
WARNING: Risk of injury!
Danger of burning due to hot oil!
Always wear safety gloves!
Remove plug (2) from
oil filling socket (1) (see
figure below).
Check oil level.
The oil level must not
drop to a level more than
0.79 inch below the bot-
tom edge of the thread.
If necessary, top up with
oil to the lower edge of
the thread ("max." mark)
on the oil filling socket.
Screw plug (2) back in.
Open the ball valve at the
compressed air outlet.
