Maintenance 6.3 Maintenance work compressor
Page 52 BOGE Operating instructions for C 16 N...C 30 N, C 16 F N...C 30 F N series screw compressors
Switch off the compressor using the OFF button.
Changing the V-belt:
– Open safety sound insulation hood.
– Turn adusting nut (1) upwards. The two bushings inside the spring must
touch.
– Pull slackened belts from the pulley.
– Fit new V-belts.
– Turn adjusting screw (1) downwards as far as possible. The V-belts are
tensioned automatically by means of the BOGE GM drive system.
– Remount safety sound insulation hood.

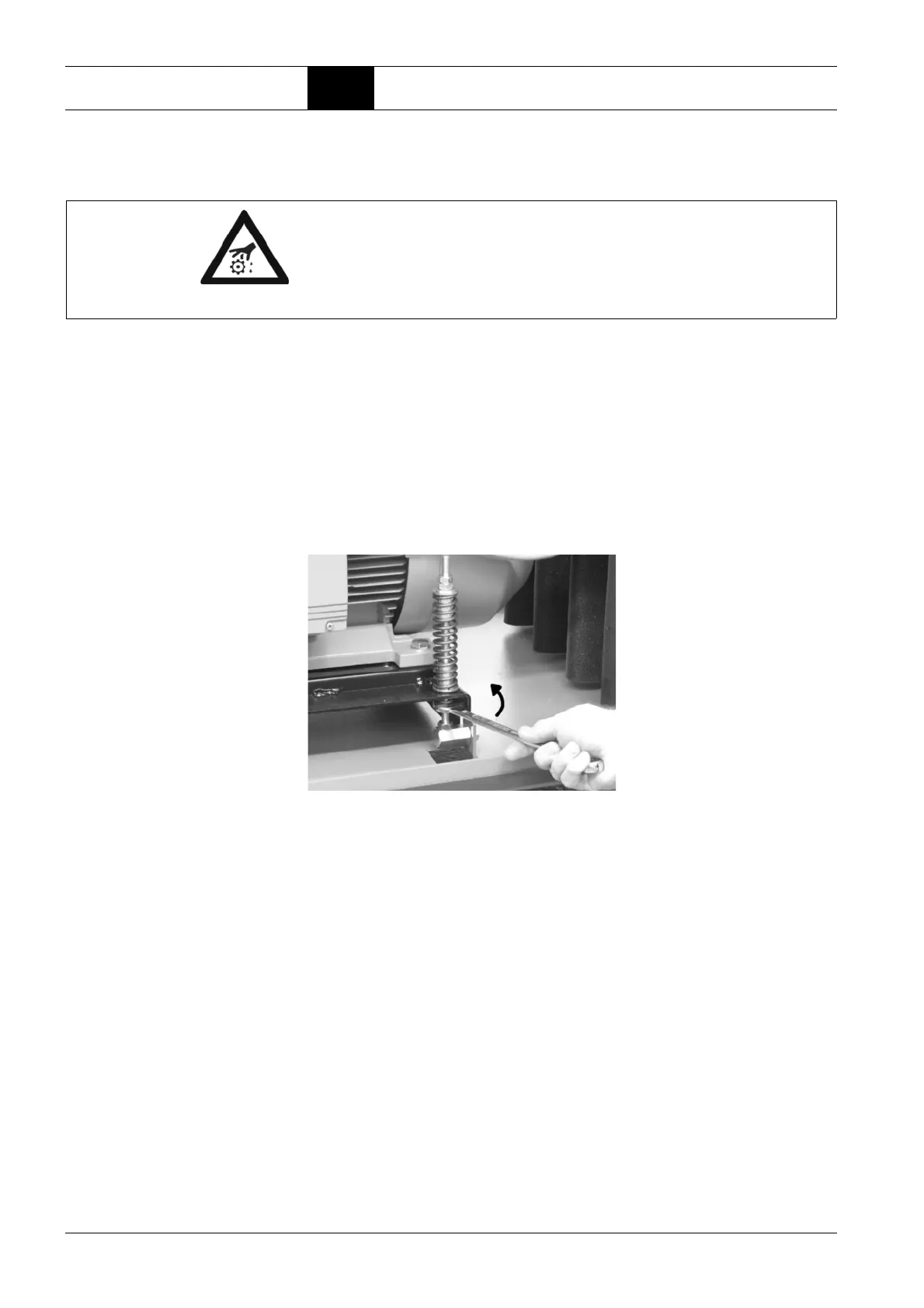

Fig. 6.4: Lift motor plate
WARNING: Risk of injury!
Actuate emergency-stop switch/button, open mains disconnecting device
and secure against unintentional switch on by means of a padlock.
Let the compressor cool down. Otherwise you can burn yourself when touch-
ing the approx. 176 – 194°F hot cooler.
