Bolin Technology KBD-1010 - Connector Pinout Definition

11

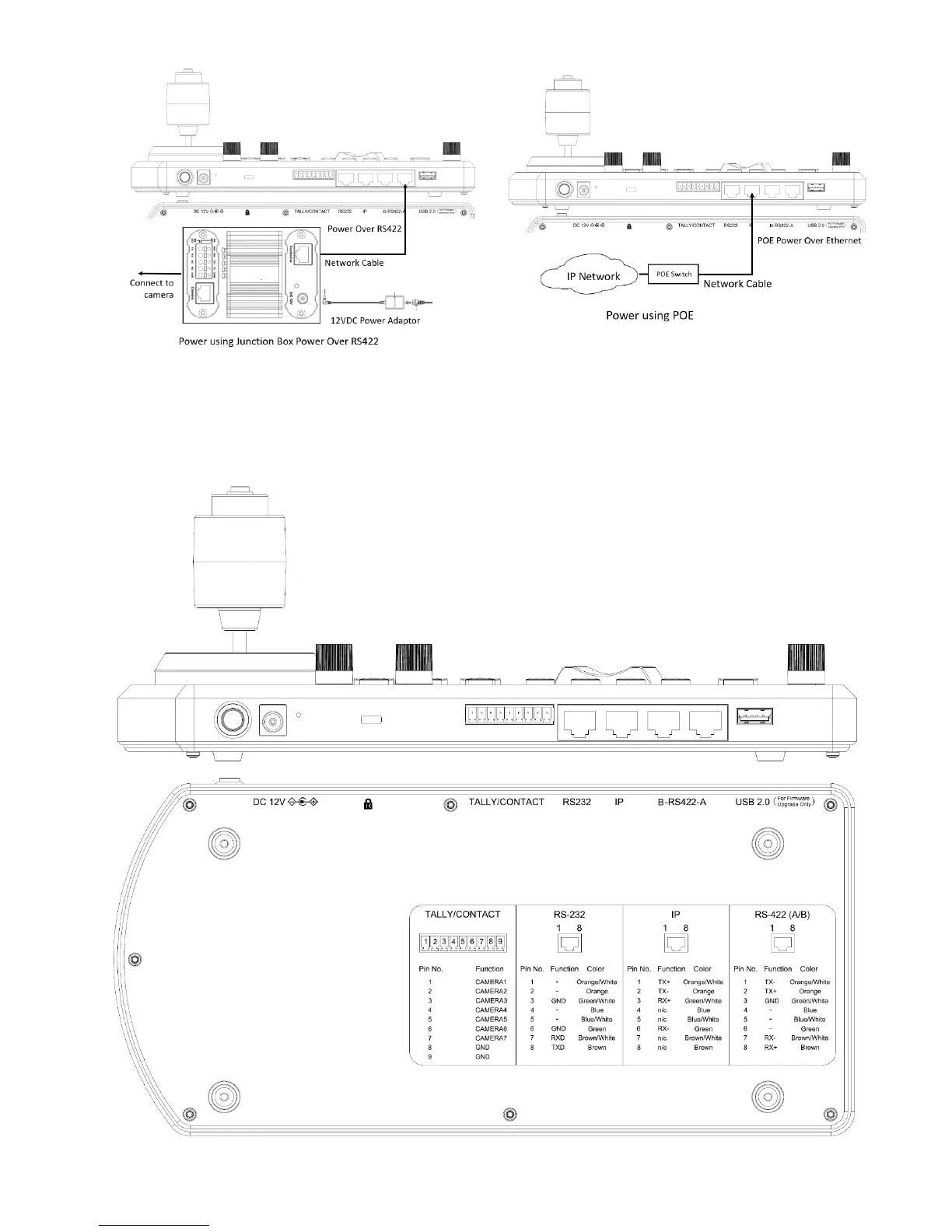

Figure 2 - Power supply is required at EITHER the keyboard OR the Junction Box. If the junction box is powered, no additional power supply is
needed for the keyboard, as the junction box will provide power to the keyboard via the control port
Connector Pinout Definition
