12
OK
OK

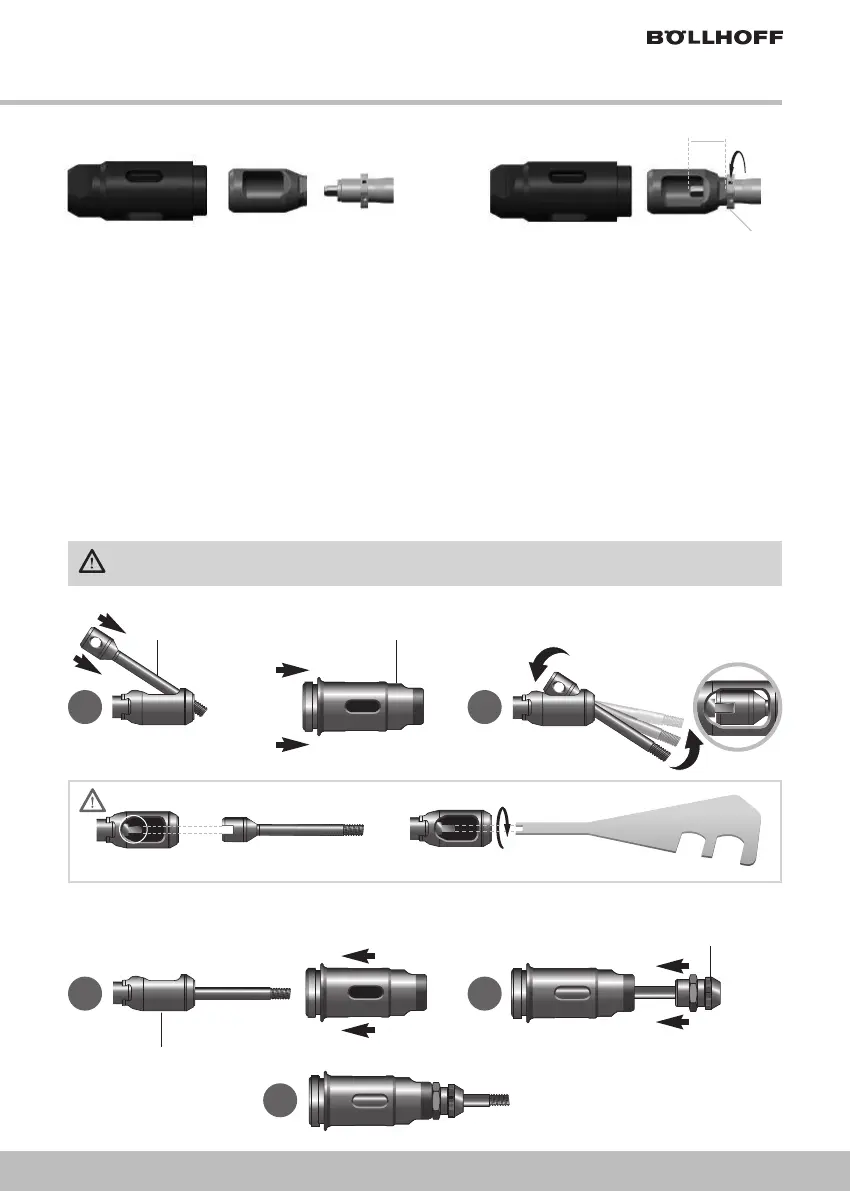

Based on the dimensions of the rivet, check that the following parts are present: mandrel ,
anvil
, see diagram above.
• Remove the mandrel
• Refit the new mandrel
by taking care to align the back side groove with the screwing driver
(see in figure 4). CAREFULL: grease (Multipurpose grease) has to be applyed between fork
and mandrel .
• Reposition the nose
• Retighten the nose to 15 Nm.
• Screw the new anvil
inside the nose and lock it after adjusting the correct position thanks
to the nut.
THE BATTERY HAS TO BE DISCONNECTED WHEN REPLACING THE TOOLING.
MANDREL (1) MOVES DURING USE. AVOID CONTACT AND PAY THE UTMOST ATTENTION.
OK
Mandrel Nose
Fork
Anvil
Figure 4 - Mandrel alignement
A
C D
E
B
Figure 3 - Fork and nose for studs & force >18 kN (M8 & M10)
21,5 mm
Force: 10 Nm
<>
12
Ref. 23616600213
