Maintenance every year
BOMAG56 BPR 45/55 D, BPR 55/65 D

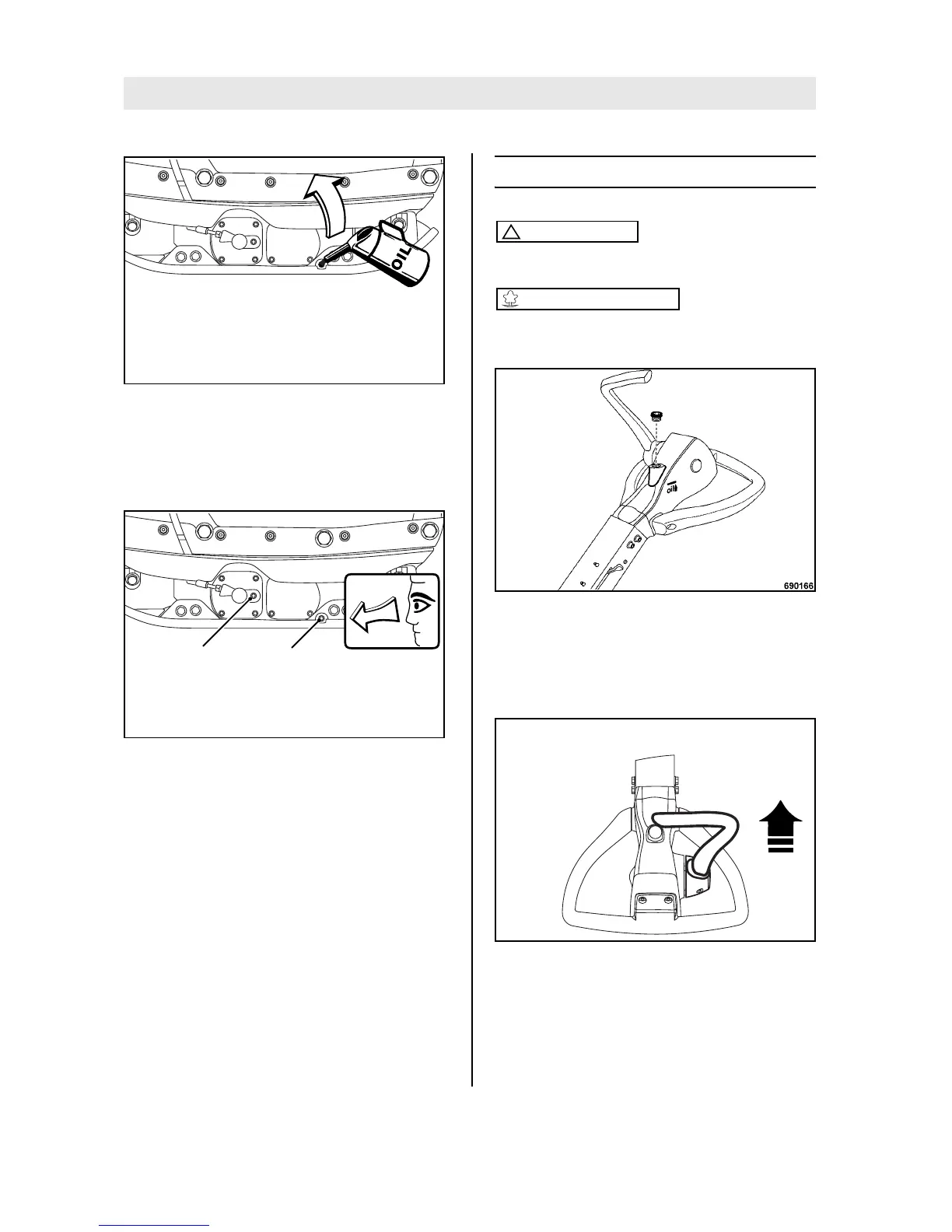

Fig. 66
l Tilt the machine to the opposite side and se-
cure it properly.
l Fill in fresh oil through the level inspection
opening (Fig. 66).
Fig. 67
l Stand the machine on level ground and check
the oil level (Fig. 67).
The oil level must reach the bottom edge of the oil
level inspection bore.
l Clean level plug (2) and screw in with sealing
agent (e.g. BOMAG 009 700 16).
l Screw vent plug (1) tightly back in.
6.18 Check the hydraulic oil level
Caution
!
Park the machine horizontally.
Environment
Catch running out oil, do not let it seep into the
ground and dispose off environmentally.
Fig. 68
l Adjust the steering rod with height adjustment
(Fig. 68) so that the area with the level inspec-
tion plugs is horizontal.
l Unscrew the plug.
Fig. 69
l Hold the travel lever in forward position (Fig.
69).
692082
692080
1 2
692060
