Bona Edge UX
14

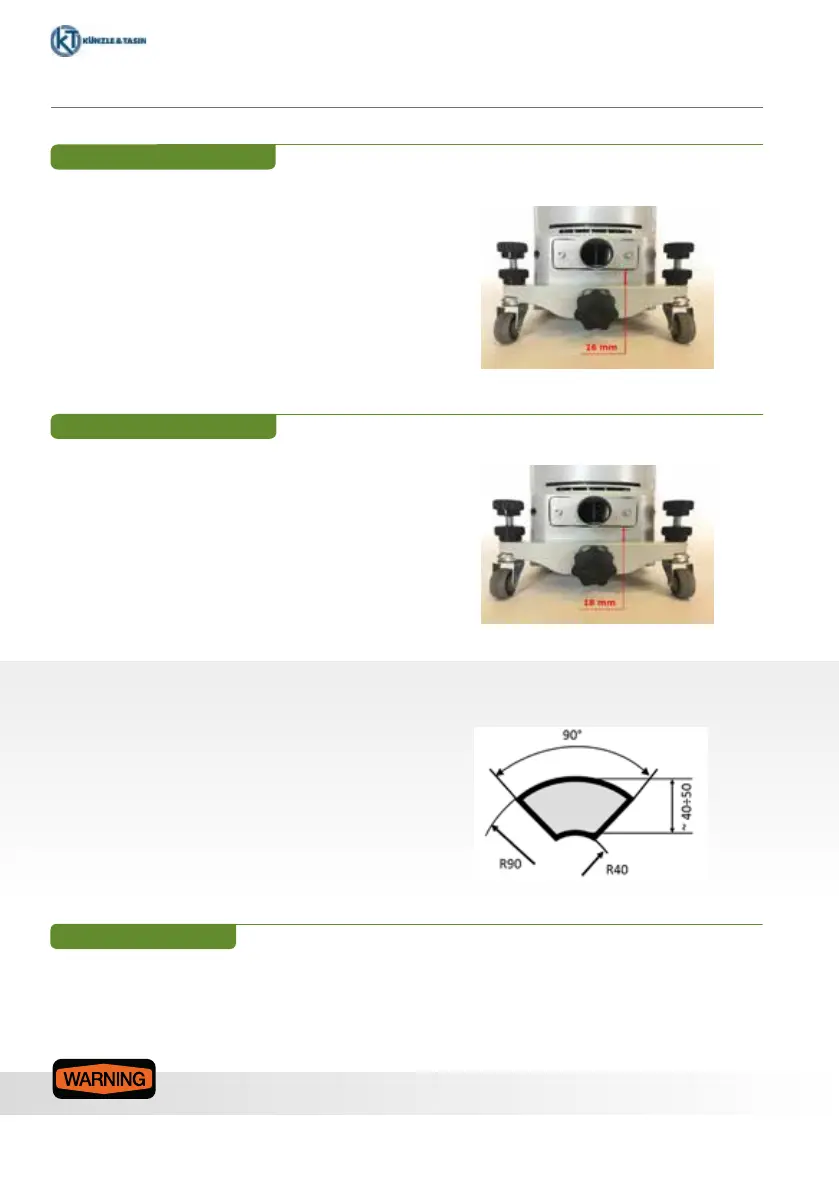

Machine Adjustment Procedures
Abrasive assembly procedure
Wheel adjustment Bona Edge UX 130
Wheel adjustment Bona Edge UX 220
1) The distance between the suction elbow and wheel
support should be approx. 16 mm.
1) The distance between the suction elbow and wheel
support should be approx. 18 mm.
Footprint should be as above to get the best result.
Note! If the whole disc is ๎at and in full contact with the ๎oor it will
create excessive resistance in the motor, leave circular scratch
marks, and the machine will be hard to handle.
1) Check that the machine is
turn off and unplugged from
power supply before remove
the old abrasive disc.
3) Attach the new abrasive disc
on the Velcro surface of the
metal plate disc.
2) Ensure the Velcro surface of the disc is clean and select an
abrasive disc (178mm diameter) with a suitable grain which
does not have a damaged surface.
Only use abrasive discs with a diameter of 178 mm.
