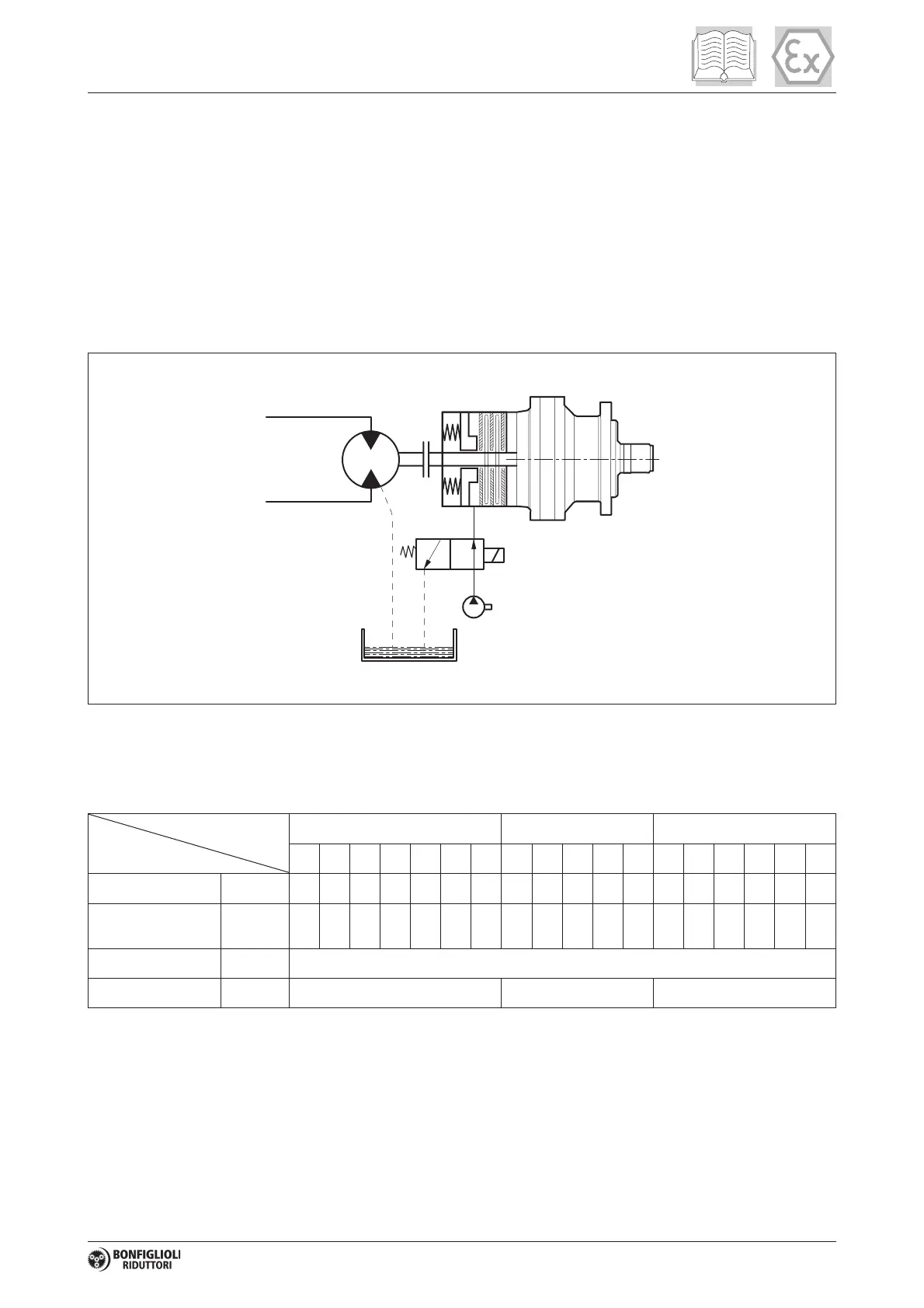

5.4 - CONNECTING THE HYDRAULIC BRAKE
On gear units designed for coupling to hydraulic motors and fitted with a brake, connect the brake control fit
-
ting to the hydraulic circuit at the time of assembly.
Start-up
The minimum pressure to release the brake (see chart) must be less than 320 bar.
TT
Technical data
NOTE: The static torque M
bs
is the maximum torque the brake can exert.
Under dynamic loads the braking torque is reduced. The actual M
bs
values can vary from -5% to +15% of the
rating given in the chart.
4... 5... 6...
ABDFHKLBCEGKBCEGKL
Braking torque M
bs
[daNm] 5 10 16 26 33 40 44 40 50 63 80 100 85 110 150 210 260 320
Minimum release
pressure
bar 10 20 30 20 25 30 33 20 27 20 25 32 14 19 25 19 24 28
Max. pressure bar 320
Weight kg 10 18 35
Brake
Characteristics
