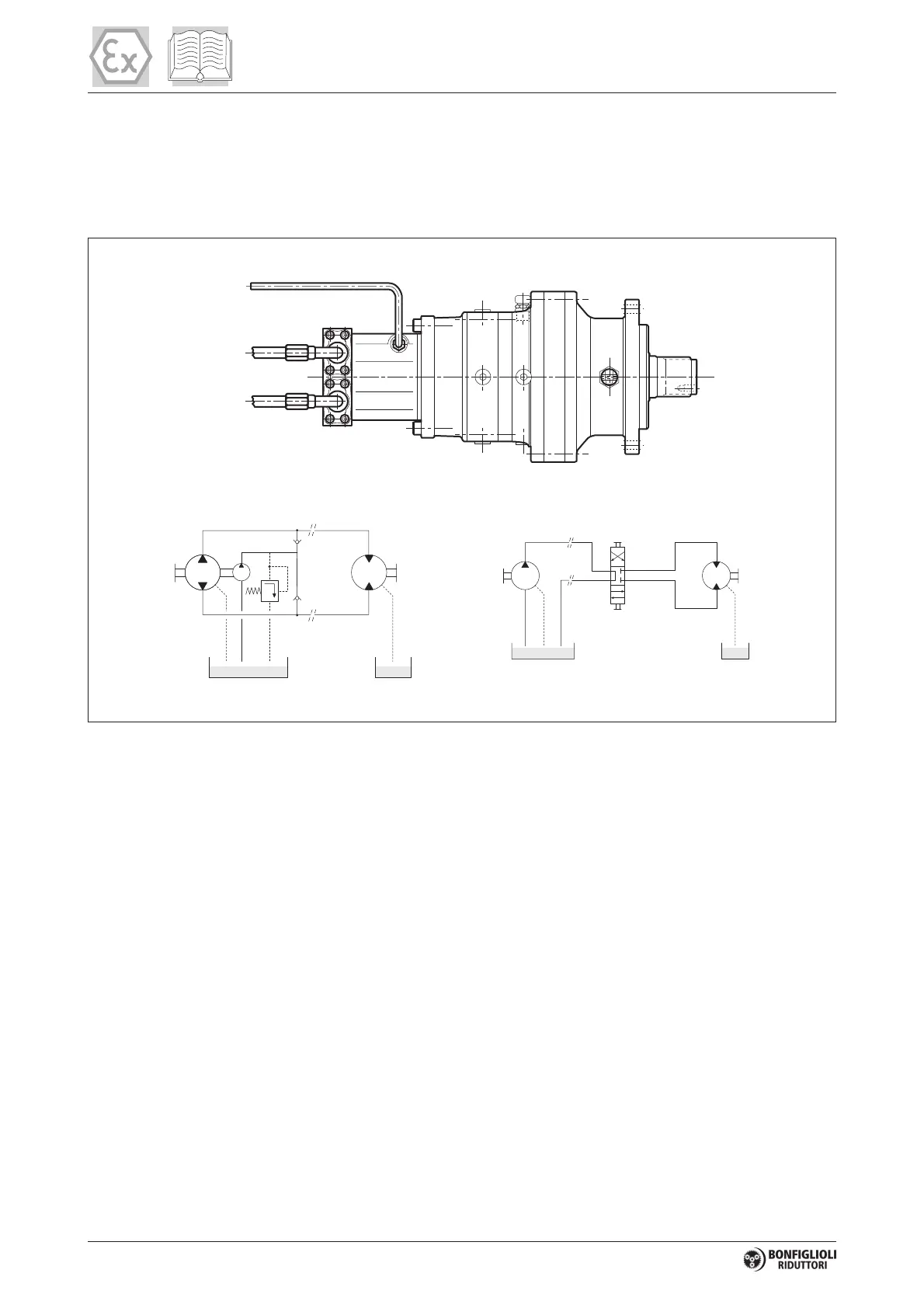

Drive with hydraulic motor
All motors must be charged with hydraulic fluid before being operated and during installation.
Position the drain hole so that it is positioned uppermost for charging with fluid.
Make sure the hoses are routed in such a way as to prevent the motor casing from emptying and hence, pre
-
vent air pockets from forming which may affect pump suction during operation.
A-B= Supply lines
T = Drainage
T
A
B
A
B
T
A
B
T
