B
C
D
E
F
G
H
I
J

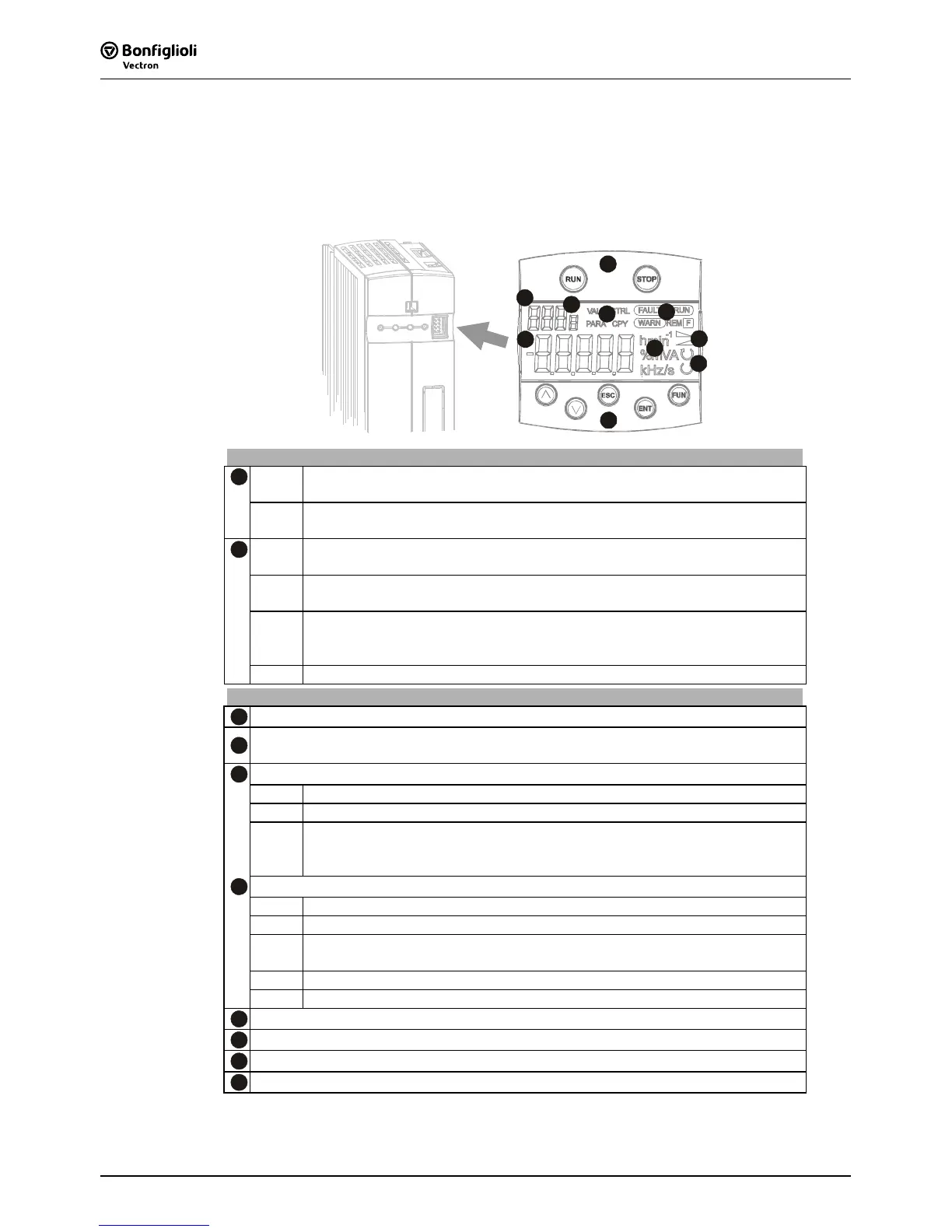

Keys
A
RUN Used for starting the drive and opening the CTRL menu.
Press the RUN key to open the motor potentiometer function.
STOP Used for opening the CTRL menu, stopping the drive and acknowledging
faults
J
� � Used for navigating in the menu structure and selecting parameters.
Increasing/decreasing of parameter values.
ENT Used for opening parameters or switching to another menu within the menu
structure. Confirmation of the selected function or the set parameter.
ESC Used for aborting parameters or switching back to the previous menu within
the menu structure. Canceling the function or resetting the parameter
value.
FUN Used for switching over the key function, access to special functions.
Display
B
Three-digit 7-segment display to show the parameter number
C
One-digit 7-segment display for display of the active data record, direction of
rotation etc.
D
Display of the selected menu branch:
VAL Display actual values
PARA Select parameters and adjust parameter values.
CTRL Select a function for adjustment and/or display via the control unit:
SEtUP guided commissioning
CtrL motor potentiometer and jog function
E
Status and operating messages:
WARN Warning about a critical operating behavior
FAULT Message indicating that the unit was switched off due to a fault
RUN Flashing: signals readiness for operation
Lights up: signals that the unit is operating and the output stage is enabled
REM Active remote control via interface connection
F Function switch-over with the FUN key
F
Five-digit 7-segment display for display of parameter value and sign
G
Physical unit of the parameter value displayed
H
Active acceleration or deceleration ramp
I
Current direction of rotation of the drive
