2 Scope of Supply
Thanks to the modular hardware components, the frequency inverters can be
integrated in the automation concept easily. The scope of delivery described can be
supplemented by optional components and adapted to the customer-specific
requirements. The plug-in type connection terminals enable a safe function and an
economical assembly.
2.1 Frequency Inverter (0.55 to 4.0 kW)
ACT 201 (230 V) and ACT 401 (400 V)
Power range 0.55 kW to 4.0 kW

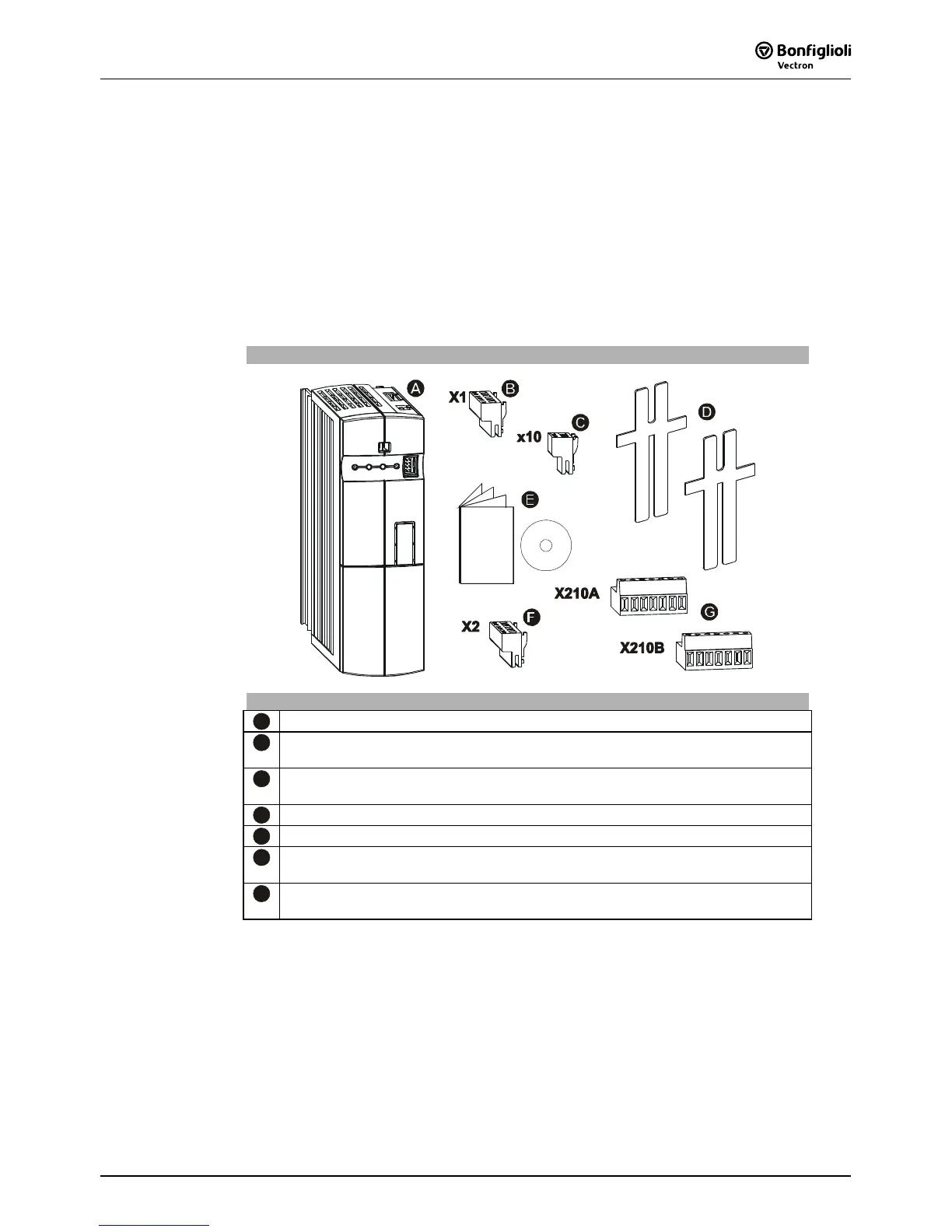

Scope of Supply
A
Frequency inverter
B
Terminal strip X1 (Phoenix ZEC 1,5/ST7,5)
Plug-in terminals for mains connection and DC linking
C
Terminal strip X10 (Phoenix ZEC 1.5/3ST5.0)
Plug-in terminals for the relay output
D
Standard fixtures for vertical assembly
E
Brief Instructions and manuals on CD
F
Terminal strip X2 (Phoenix ZEC 1,5/ST7,5)
Plug-in terminal for brake resistor and motor connection
G
Control terminals X210A / X210B (Wieland DST85 / RM3.5)
Plug-in terminal for connection of the control signals
Note: Please check incoming goods for quality, quantity and nature without
delay. Obvious defects such as exterior damage of the packing and/or
the unit must be notified to the sender within seven days for insurance
reasons.
