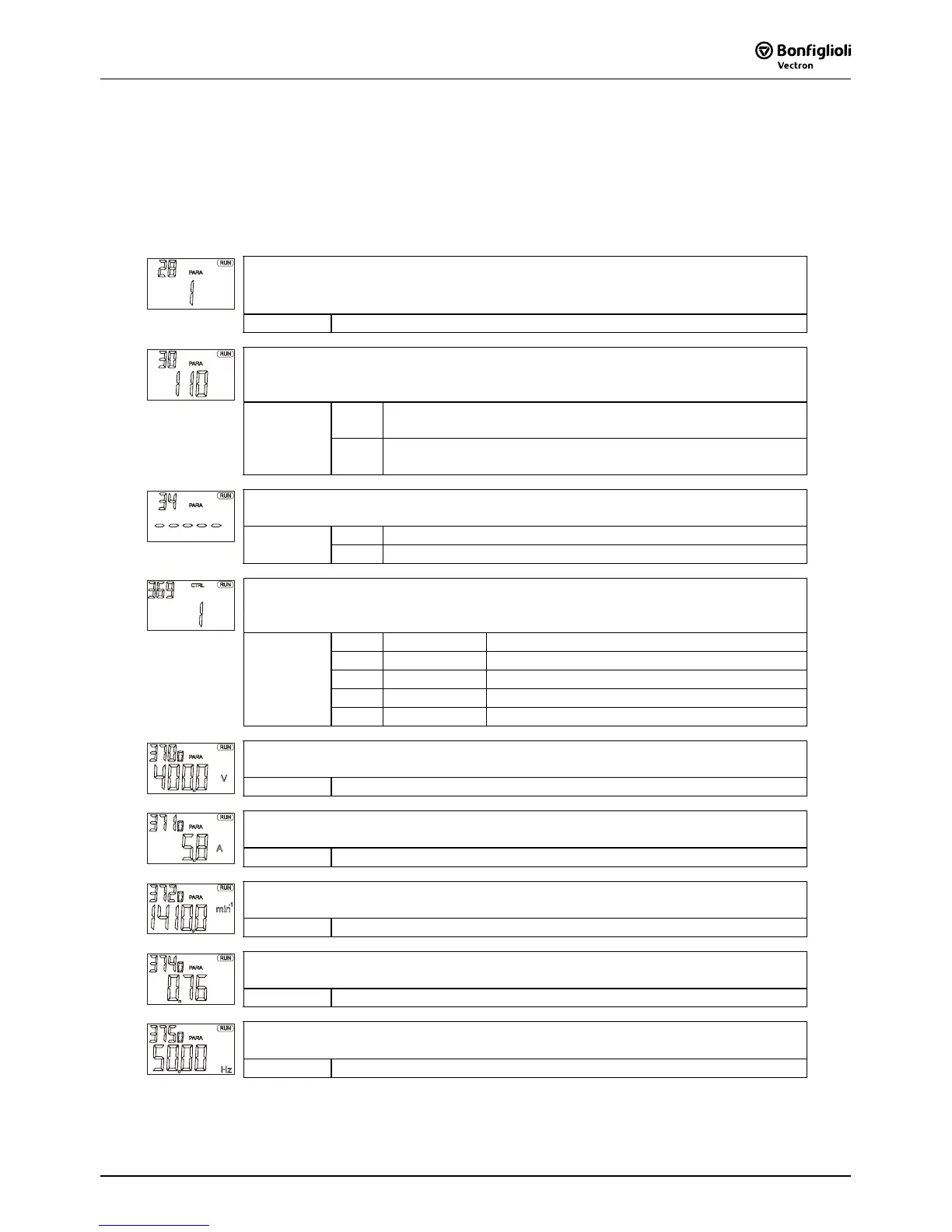

8 Basic parameters
8.1 Menu branch PARA
The parameters displayed in the PARA menu branch are partly set via the guided
commissioning. The parameters documented in the brief instructions are
complemented by the information given in the operating instructions.
Control Level 28 - The brief instructions describe the parameters in control level 1.
The parameters of the higher control levels 2 or 3 are described in the operating
instructions and should be set up by expert operators only.
Setting: 1 ... 3
Configuration 30 - The basic function of the control inputs and outputs as well as
the assignment of the software modules is selected by the configuration. The
selection is made during the guided commissioning.
110 - sensor-less control with U/f characteristic for speed regulation
in a great number of standard applications
Setting:
410 - sensor-less, field-oriented control, for applications with a high
functionality and dynamics
Program(ming) 34 - The factory settings of all parameters is restored or a fault
message is acknowledged (alternative to signal at digital input S1IND).
4444 Activate factory settings
Setting:
123 Acknowledge fault message
Motor type 369 – Setting of connected motor or transformer. The verification of the
entered rated values and the guided commissioning are carried out on the basis of
the parameterized motor type.
0 - Unknown The motor is not a standard type.
1 - Asynchronous Three-phase asynchronous motor, squirrel cage
2 - Synchronous Three-phase synchronous motor
3 - Reluctance Three-phase reluctance motor
Setting:
10 - Transformer Transformer with three primary windings
Rated Voltage 370 - enter the voltage indicated on the type plate of the
asynchronous motor.
Setting: 60.0 V ... 800.0 V
Rated Current 371 - enter the rated current indicated on the type plate of the
asynchronous motor.
Setting:
0.01⋅I
FIN
... 10⋅o⋅I
FIN
Rated Speed 372 – Enter the motor speed (at rated frequency) indicated on the type
plate of the asynchronous motor.
Setting: 96 min
-1
... 60000 min
-1
Rated Cosinus Phi 374 – enter the cos (ϕ) value indicated on the type plate of the
asynchronous motor.
Setting: 0.01 ... 1.00
Rated Frequency 375 – Enter the rated frequency (at parameterized rated speed)
indicated on the type plate of the asynchronous motor.
Setting: 10.00 ... 1000.00
