BONFIGLIOLI Active Cube Series User Manual

11/17
Liquid Cooling ACU/ANG/AEC
15

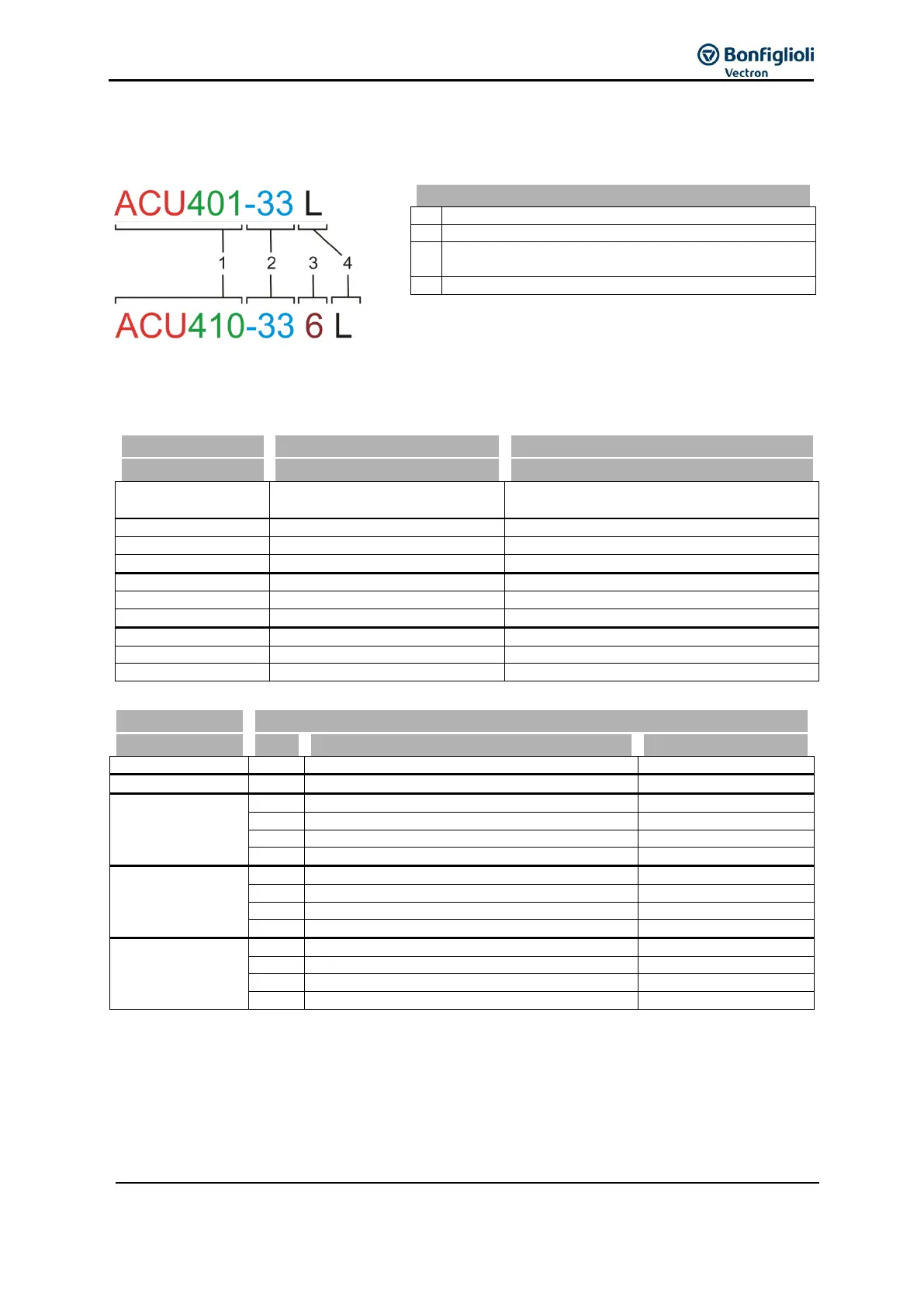

3 Device identification
3.1 Identifier structure
Type key
1
Device series, e.g. ACU401
2
Identifier depending on rated power , e.g. -33
3
Device Size, e.g. 6
(only specified for device series Axx410/510/610)
4
Cooling and installation code, e.g. L for liquid cooling
3.2 Available devices
1
2
3
Device series
Type identifier
Size
1)
ACU401 / AEC401
-27...-49
-
ACU410
-27...-61
5...8
ACU510
-51...-61
8
ACU610
-51...-61
8
ANG410
-27...-61
5...8
ANG510
-51...-61
8
ANG610
-51...-61
8
AEC410
-27...-61
5...8
AEC510
-51...-61
8
AEC610
-51...-61
8
1) only specified in type key for device series Axx410/510/610
1
4
Device series
Cooling and
Installation method
ACU401 / AEC401
L:
stainless steel, open cooling circuit (Size 5…8)
standard installation
ACU401 / AEC401
N
2)
:
stainless steel, open cooling circuit (Size 7, 8)
through-hole installation
ACU410
ACU510
ACU610
L:
stainless steel, open cooling circuit (Size 5…8)
standard installation
M:
aluminum, closed cooling circuit (Size 8)
standard installation
N
2)
:
stainless steel, open cooling circuit (Size 7, 8)
through-hole installation
O:
aluminum, closed cooling circuit (Size 8)
through-hole installation
ANG410
ANG510
ANG610
L:
stainless steel, open cooling circuit (Size 5…8)
standard installation
M:
aluminum, closed cooling circuit (Size 8)
standard installation
N
2)
:
stainless steel, open cooling circuit (Size 7, 8)
through-hole installation
O:
aluminum, closed cooling circuit (Size 8)
through-hole installation
AEC410
AEC510
AEC610
L:
stainless steel, open cooling circuit (Size 5…8)
standard installation
M:
aluminum, closed cooling circuit (Size 8)
standard installation
N
2)
:
stainless steel, open cooling circuit (Size 7, 8)
through-hole installation
O:
aluminum, closed cooling circuit (Size 8)
through-hole installation
2) designation “N” only for size 7 and size 8 devices
