BONFIGLIOLI Active Cube Series User Manual

20
Liquid Cooling ACU / ANG /AEC
11/17
5.1 Size 5 (liquid-cooled)

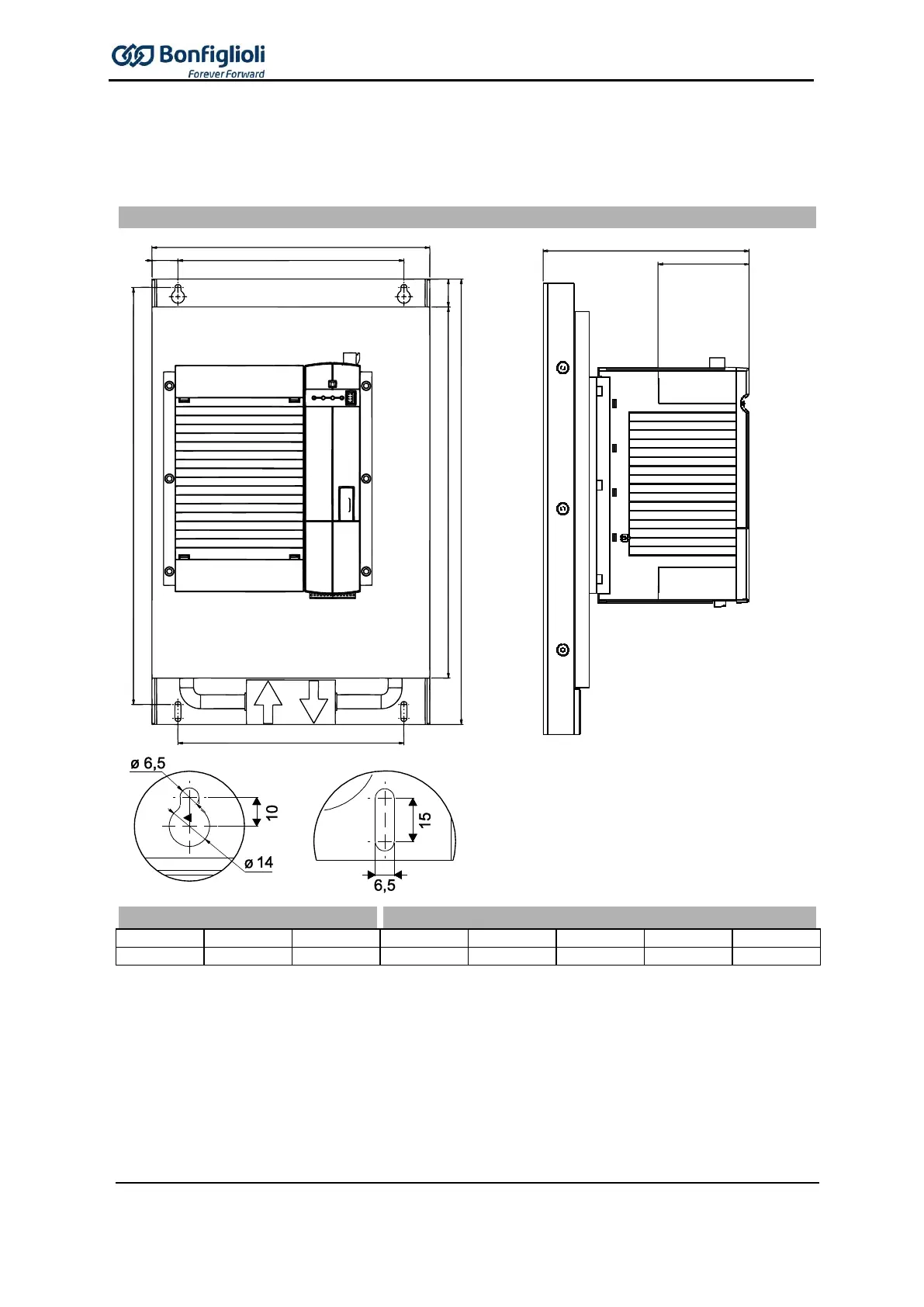

The frequency inverter is mounted in a vertical position on the assembly panel. The following illustration
shows the standard fitting.
Standard installation
Dimensions [mm]
Assembly dimensions [mm]
a
b
c
a1
a2
b1
b2
c1
400
300
220
450 … 464
480
28
244
97
Assembly is done by screwing the two fixing brackets to the heat sink of the frequency inverter and the
assembly panel.
The frequency inverters are provided with fixing brackets, which are fitted using four thread-cutting
screws. The dimensions of the device and the installation dimensions are those of the standard device
without optional components and are given in millimeters.
ACU210Size5-TZ-LiquidCool ing_01-V00
b2
b
b1
a1
a a2
b2
c1
c
