5.2 Size 6 (liquid-cooled)
The frequency inverter is mounted in a vertical position on the assembly panel by means of the standard
fittings. The following illustration shows the standard fitting.

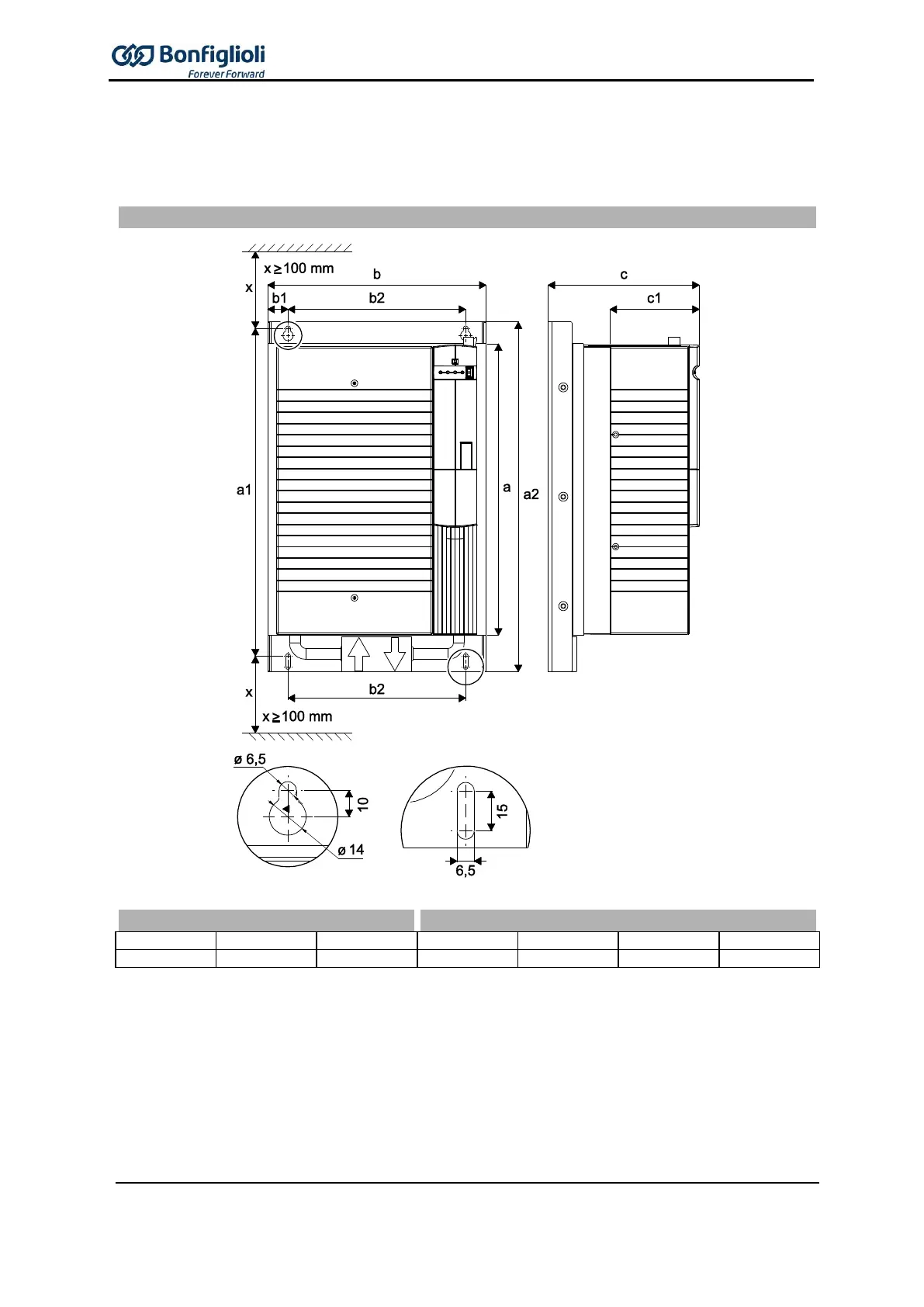

Standard installation
Dimensions [mm]
Assembly dimensions [mm]
a
b
c
a1
a2
b1
c1
400
300
208
450 … 464
480
28
123
Assembly is done by screwing the two fixing brackets to the heat sink of the frequency inverter and the
assembly panel.
The frequency inverters are provided with fixing brackets, which are fitted using four thread-cutting
screws. The dimensions of the device and the installation dimensions are those of the standard device
without optional components and are given in millimeters.
