BONFIGLIOLI Vectron S2U IP20 User Manual

2
Quick Start Guide S2U IP20
08/19

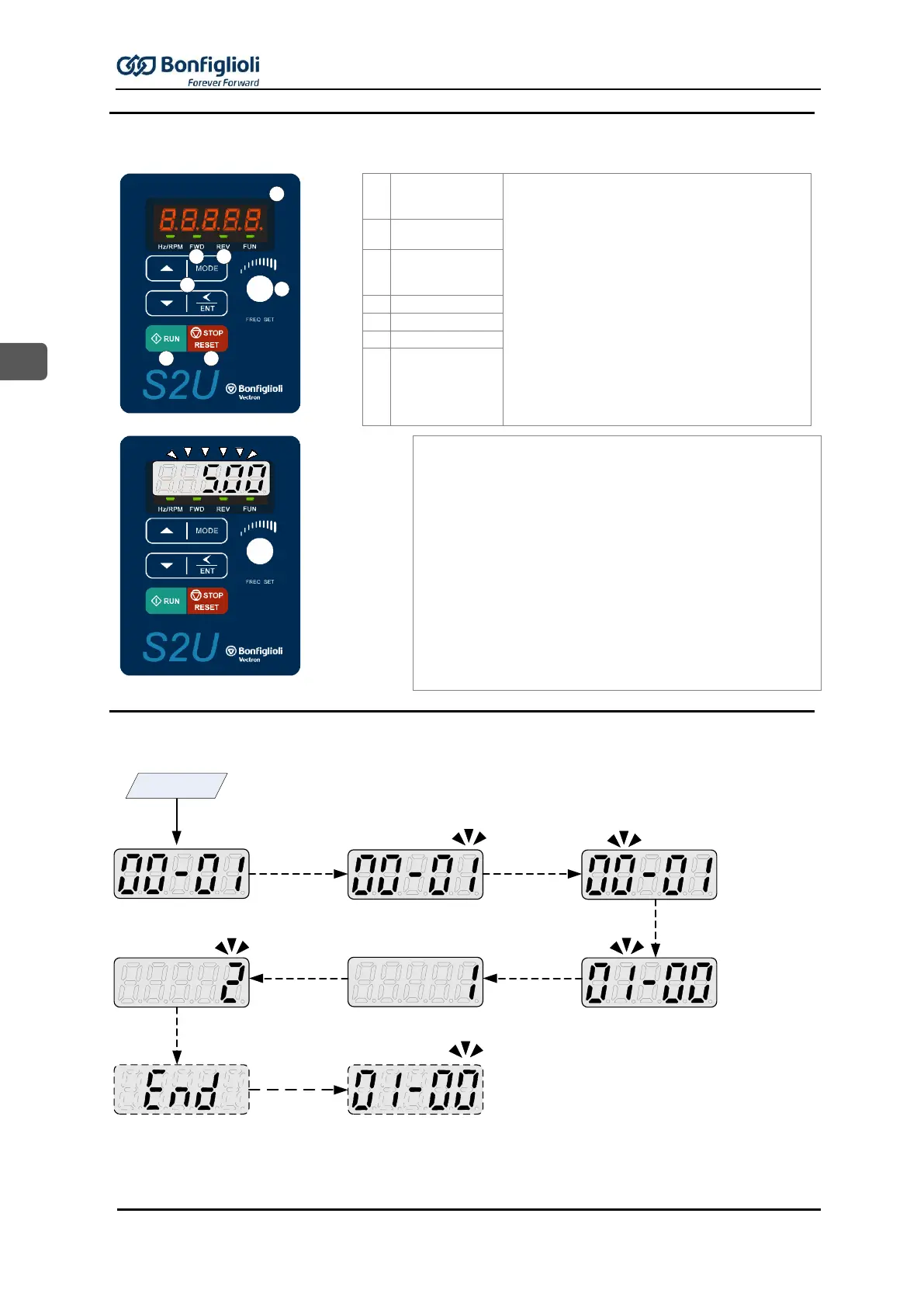

Step 2 – Power up the inverter, check digital operator
This step describes the indications and functions of the Operator panel.
A
Forward
direction status
indicator
Description of keys (C):
RUN: Run inverter in Local Mode.
STOP/RESET: Decelerate or Coast to Stop. / Reset
alarms or resettable faults.
▲: Increment parameter number and preset Values.
▼: Decrement parameter number and preset
Values.
MODE: Switch between available displays
FUN: Examine the parameter content
ENT: Display the preset Value of parameters and
save the changed parameter values.
“” Left Shift: used to change parameters or
parameter Values
FREQ SET: Set the frequency.
B
Reverse direction
status indicator
C
6-button
membrane
keypad
D
Run button
E
Stop button
F
LED display
G
Frequency
potentiometer
Fig. 1a
S2U IP20 Control Settings (Factory Default)
 RUN/STOP Control: RUN/STOP buttons on keypad
Press RUN button to START the drive.
 SPEED Control: Arrow buttons UP and Down on keypad
While number is flashing the speed reference can be changed.
Step 3 – Changing parameters
Example 1: Modifying Parameters (in complete Parameter Set)
Short press
</ENT once
Short press
</ENT twice
Short press▲
once
Long press
</ENT once
Frequency
Short press▲
once
Short press
MODE once
Long press
</ENT once
A B
C
D E
F
G
S2UIP20_TD_QSGKeypad
S2UIP20_TD_QSGKeypad
EN
