Quick Start Guide S2U IP20
Step 4 – Using External RUN/STOP
Instructions to change to External Run/Stop
Follow instructions below to use digital input for start command.
Power down the drive, wait 5 min.

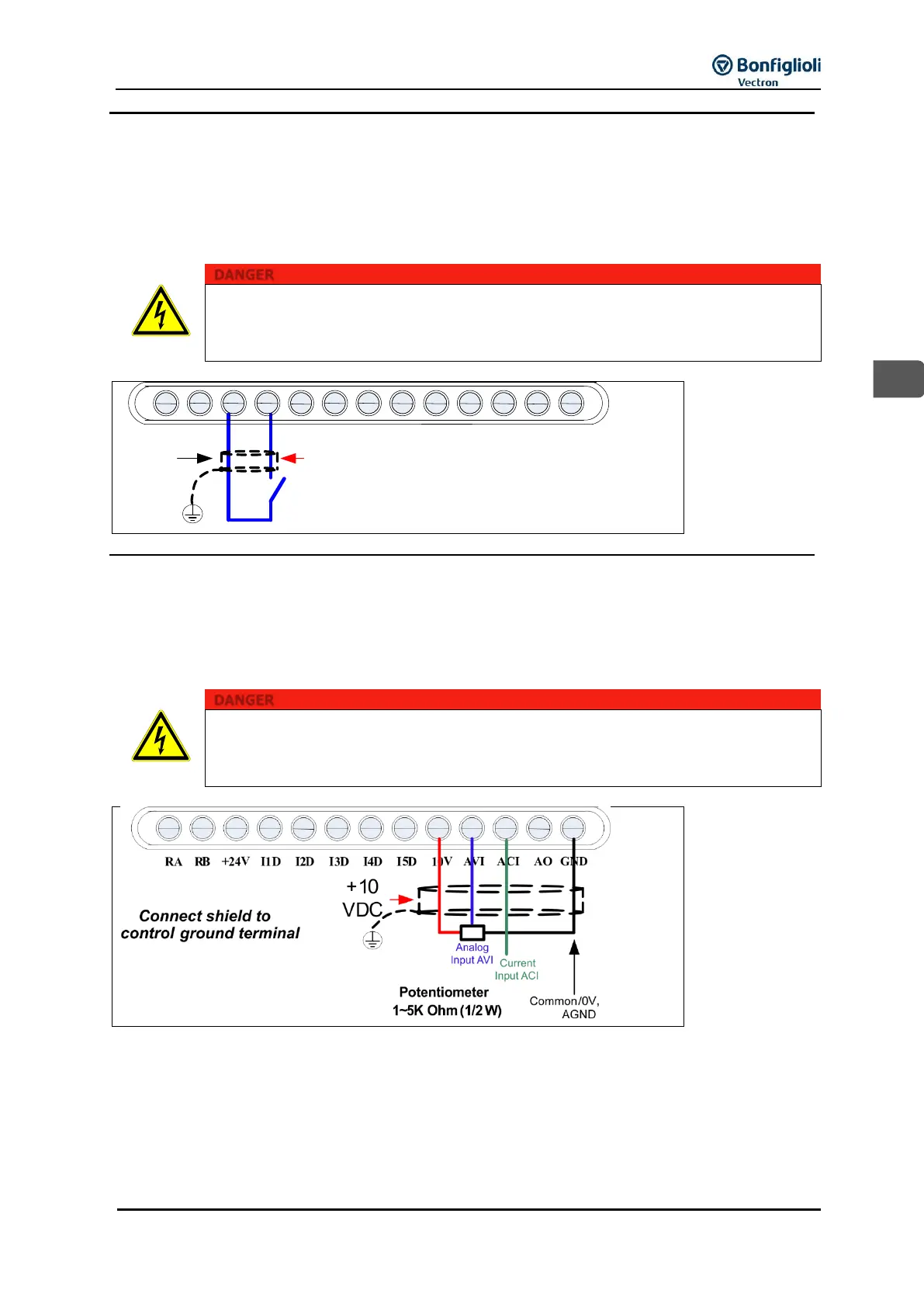

Make the connections as shown below in Fig. 2a.
Verify that all connections are secure and power-up the drive.
Set Par. F_10 “Main Run Source Selection” = 1: “External Run/Stop”
Risk of electric shock
Touching blank or not connected wires/cables will result in electric shock and physical injury including the risk
of death.
Do not apply power until all connections are correct and secure and all protective covers are in place.
Step 5 – Using an external Analog Input for speed control
Follow instructions below to use External Analog Input as setpoint reference.
Power down the drive, wait 5 min.
Make the connections as shown below in Fig. 2b.
Verify that all connections are secure, replace covers and power-up the drive.
Set Par. F_11 “Main Frequency Source Selection” = 2: “External AVI Analog Signal Input”
Risk of electric shock
Touching blank or not connected wires/cables will result in electric shock and physical injury including the risk
of death.
Do not apply power until all connections are correct and secure and all protective covers are in place.
Start / Stop
Switch
(Maintained)
Digital
Input
Common
RA RB +24V I1D I2D I3D I4D I5D 10V AVI ACI AO GND
Forward FWD
EN
