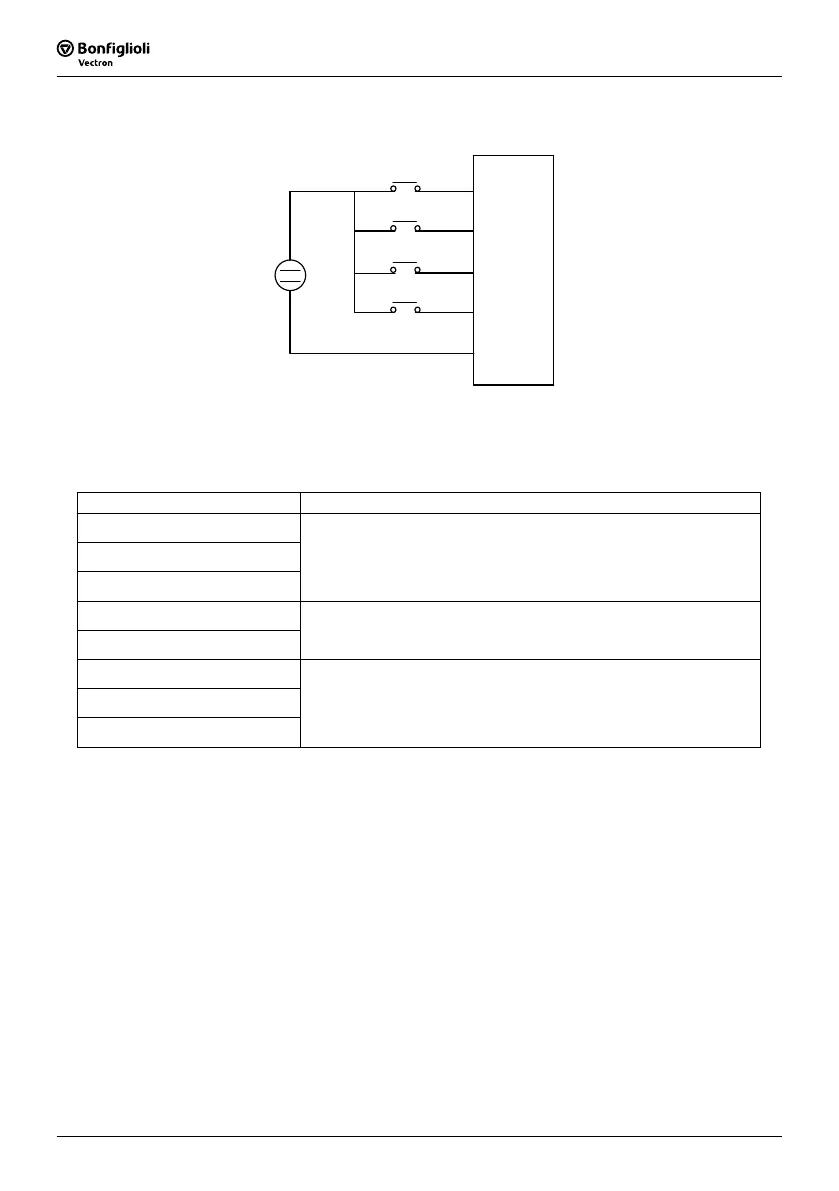

(External 24V supply)
Primary Circuitry Terminal Block (TM1) descriptions
Terminal Symbol Function Description
L1 (R)
L2 (S)
L3 (T)
Primary power source input to Drive
Single phase: L1/L2
(for SYN10 S 115 01/03/05 and S 220 01/03/05) or L/N
Three phase: L1/L2/L3
P
R
External braking resistor terminal
(Only for models SYN 10 S 220 07/09 and T 400 05/07/09)
T1 (U)
T2 (V)
T3 (W)
Inverter output to Motor
Tightening torque for TM1 is 1 Nm (in the S 115 and S 220 01/03/05 models).
Tightening torque for TM1 is 1.3 Nm (in the S 220 07/09 and T 400 05/07/09 models).
* Wire voltage rating must be a minimum of 300V (200V series) and 600V (400V series)
TM2
FWD
REV
SP1
RST
0V
3
4
6
7
10
+
24V
–
Inverter terminal descriptions
