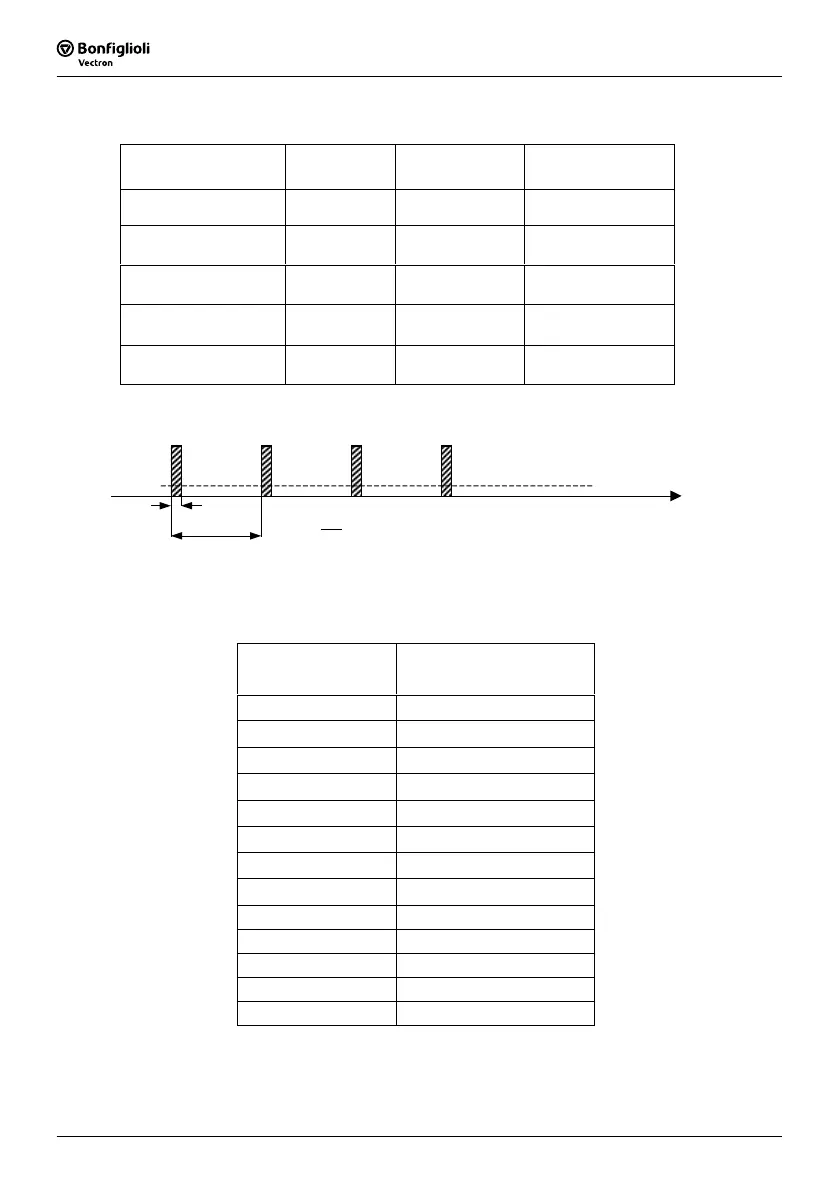

Braking resistor features
Inverter model Resistor type Rated data
Maximum braking
torque M
max
SYN10 S 220 07 AF ... SR-0.75-S
100 Ω
150 W
85 %
t
on
=10s, δ=10%
SYN10 S 220 09 AF ... SR-0.75-S
100 Ω
150 W
60 %
t
on
=10s, δ=10%
SYN10 T 400 05 AF ... SR-0.75-T
300 Ω
150 W
150 %
t
on
=11.5s, δ=11.5%
SYN10 T 400 07 AF ... SR-1.5-T
100 Ω
150 W
150 %
t
on
=10.7s, δ=10.7%
SYN10 T 400 09 AF ... SR-2.2-T
150 Ω
300 W
150 %
t
on
=8s, δ=8%
t
on
T
t
on
δ =
T
⋅ 100
M
max
t
M
∞
Altitude derating:
Altitude (Meter)
Rated current
percentage
1.000 100
1.200 99
1.500 99
1.800 98
2.100 98
2.400 97
2.700 96
3.000 96
3.600 95
4.300 93
4.900 92
5.500 91
6.100 90
