SYN10 S 220 07/09 IP65 S – SYN10 T 400 05/07/09 IP65 S TYPE INSTALLATION:
REV-0-FWD
220-240V
380-480V
Single/ThreePhases
L1 L2 L3
3 Phases
IM
T1 T2 T3
SWITCH
STOP
RES ET
RUN
ENT
DSP
FUN
DATA
Potentiometer
POWER
SWITCH
NOTE:
1.POWER SWITCH,REV-0-FWD SWITCH
and Potentiometer are only for SYN10 S 220 07/09
IP 65 S - T 400 05/07/09 IP 65 S TYPE
2.Power supply cable : SYN10 S 220 #12AWG(3.5mm
2
)
SYN10 T 400 #16AWG(1.25mm
2
)
3. Motor cable : SYN10 S 220 #14AWG(2.0mm
2
)
SYN10 T 400 #16AWG(1.25mm
2
)
4. Torque value of Screw :
(1).Power/Motor cable Terminal (TM1/TM3): 8 kgf-cm (6.94 in-lb)
(2).Remote control wire : 4 kgf-cm (3.47 in-lb)
(3).Outer Cover (M4) : 8kgf-cm (6.94 in-lb)
NOTE:
(1).Input source:
single-phase[ L1 (L), L2 (N),
] ensuring
that it isconnected to a 200/240 supply.
or three-plase(L1,L2,L3,
) ensuring that it
is connected to a 200/240,380/460V supply.
(2).Output Motor:three-phase(
,T1,T2,T3).
Caution:
_Do not start or stop the inverter using the main
circuit power.
_ FOR SYN 10 S 220 07/09 IP65 S - T 400 05/07/09
IP 65 S TYPE Please always remain REV-0-FWD
switch at 0 position. In order to keep
inverter has no running signal before power-on
again after power supply interrupted.

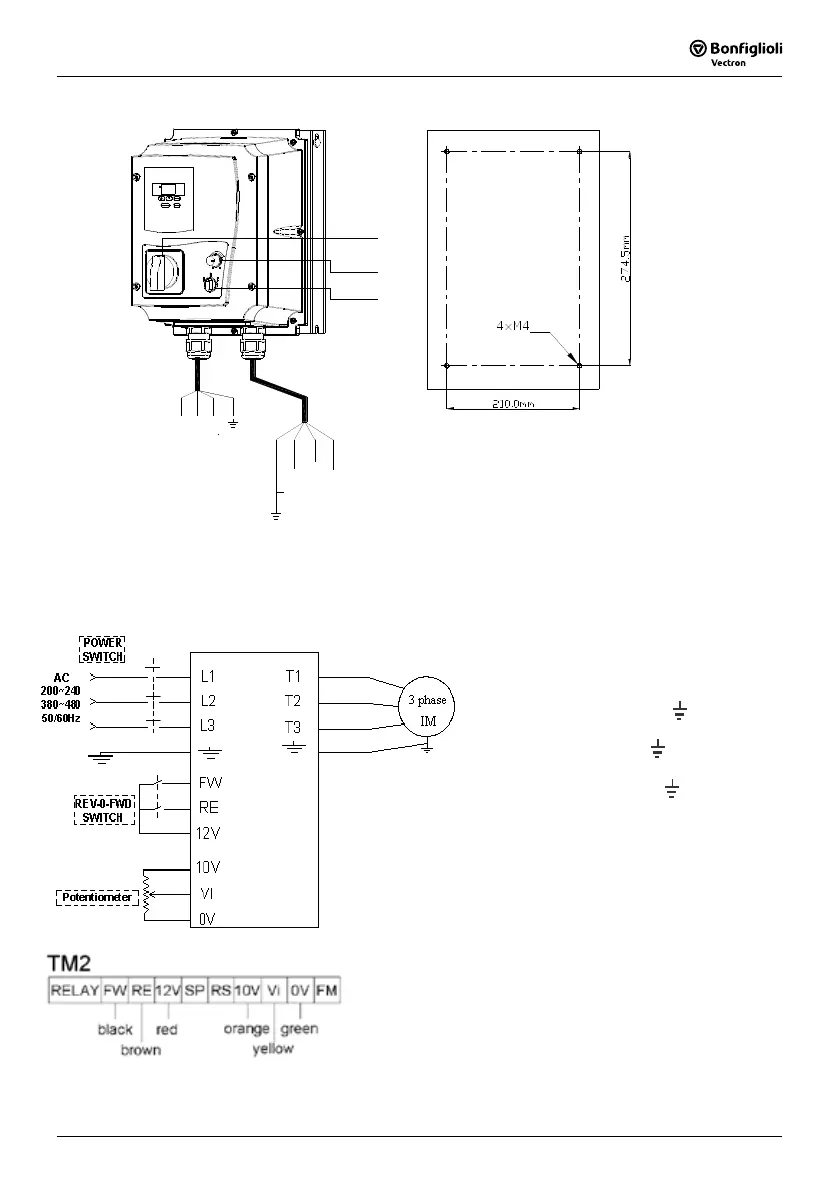

CIRCUIT DIAGRAM
_FOR SYN 10 S 220 07/09 IP65 - T 400 05/07/09
IP 65 TYPE Please always remain RE-or-FW
switch at OFF position. In order to keep inverter
has no running signal before power-on again
after power supply interrupted.Otherwise, injury
may result.
(L)
Otherwise, injury may result.
(N)
