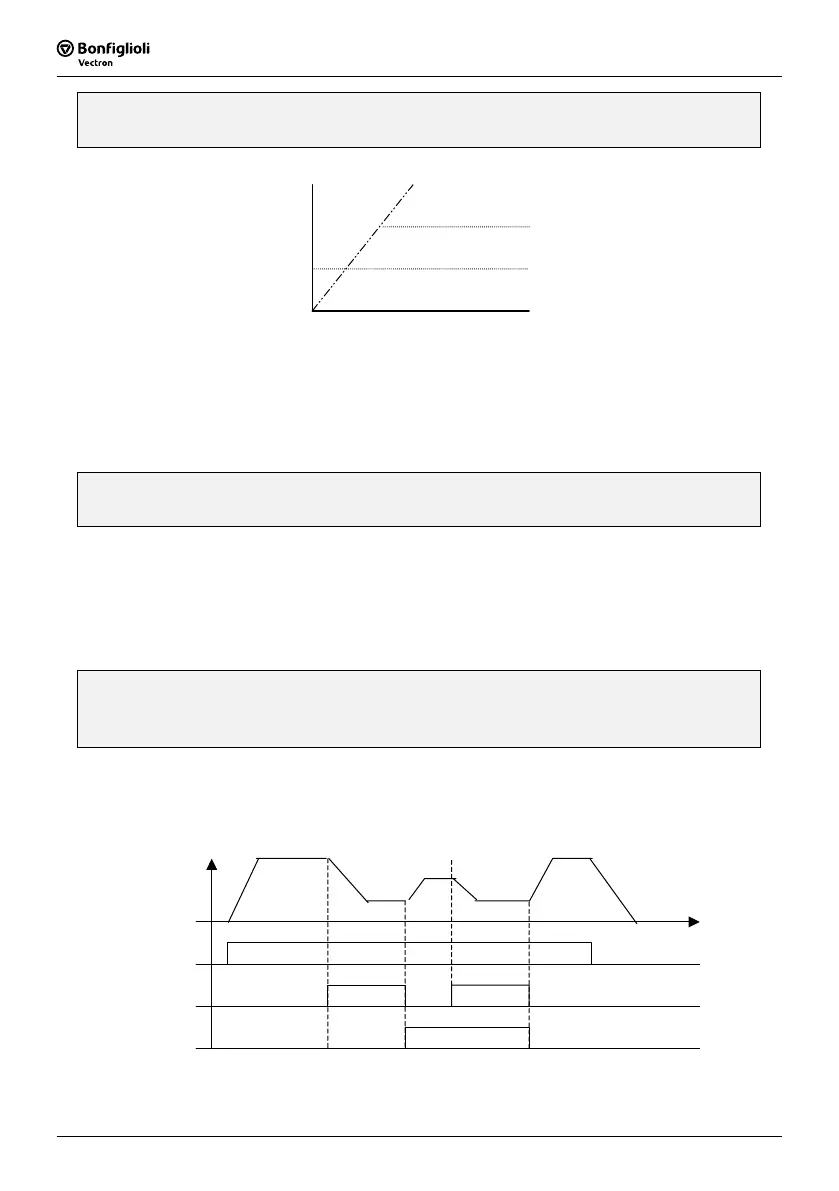

F_06: frequency upper limit range=1~200Hz
F_07: frequency lower limit range=1~200Hz
F_06: Factory setting refers to F_25.
NOTE:
If F_07 = 0 Hz, If the frequency instruction is equal to 0Hz, the inverter will
stop at 0 speed.
If F_07 > 0 Hz, If the frequency instruction is lower than F_07, the inverter will
output a minimum speed according to the setting in F_07
F_08: SP1 frequency = 1 ~ 200Hz
F_09: JOG frequency = 1 ~ 200Hz
1.
When F_19 or F_20 = 2 and the multifunction input terminal is ON, the inverter operates at sp1
frequency (F_08)
2.
When F_19 or F_20 = 1 and the multifunction input terminal is ON, the inverter operate at jog
frequency (F_09)
3.
The priority of reading frequency setting is: Jog

Sp1

Keypad setting or external frequency
signal using a speed pot.
F_10: Start / Stop Control
= 0: Keypad
= 1: Terminal (TM2)
NOTE: When F_10=1 (Terminal Control), quick stop on the Keypad is enabled.
When F_10=1, please refer to the descriptions of F_23/24, in order to avoid the damage to
the human and the machine.
Internal
frequenc
y
signal
(NOTE)
Frequency setting signal
F_06 (freq. Upper limit)
F_07 (freq. Lower limit)
Time
Hz
F_10=1 or =0
F_09=10Hz
F_19=1
F_08=30Hz
F_20=2
ON OFF
OFF
ON OFF
ON
OFF
OFF ON
OFF
35
F_11: Speed Control
= 0: Keypad
= 1: Analog Speed Pot Terminal (TM2) (0 ~ 10V / 0-20mA)
= 2: ( 4-20mA ) (TM2)
NOTE 1:
When jog frequency or Sp1 frequency is
switched on, the frequency is setup by Sp1
speed, the
and
buttons on the keypad is
disabled.
Original setting will be restored after the Sp1
connection is removed.
NOTE2:
During the contact closure of the jog function,
the keypad control remains in a sleep state until
the jog contact connection is re-opened.
F_12: Carrier Frequency = 1 ~ 10
F_12 Carrier frequency F_12 Carrier frequency F_12 Carrier frequency
1 4 kHz 5 8 kHz
9
15 kHz
2 5 kHz 6 10 kHz
10
16 kHz
3 6 kHz 7 12 kHz
4 7.2 kHz 8 14.4 kHz
NOTE If F_12=7~10,the inverter must operator with low load.
Although an IGBT TYPE inverter can provide a low audible noise level during its operation, it is
possible that the switching of the high carrier frequency may interfere with external electronic
components (or other controllers) or even cause vibration in the motor. Adjusting the carrier
frequency can usually correct this problem.
F
_
06
0mA
0V
4mA
20mA
10V
F_11=1
F_11=2
