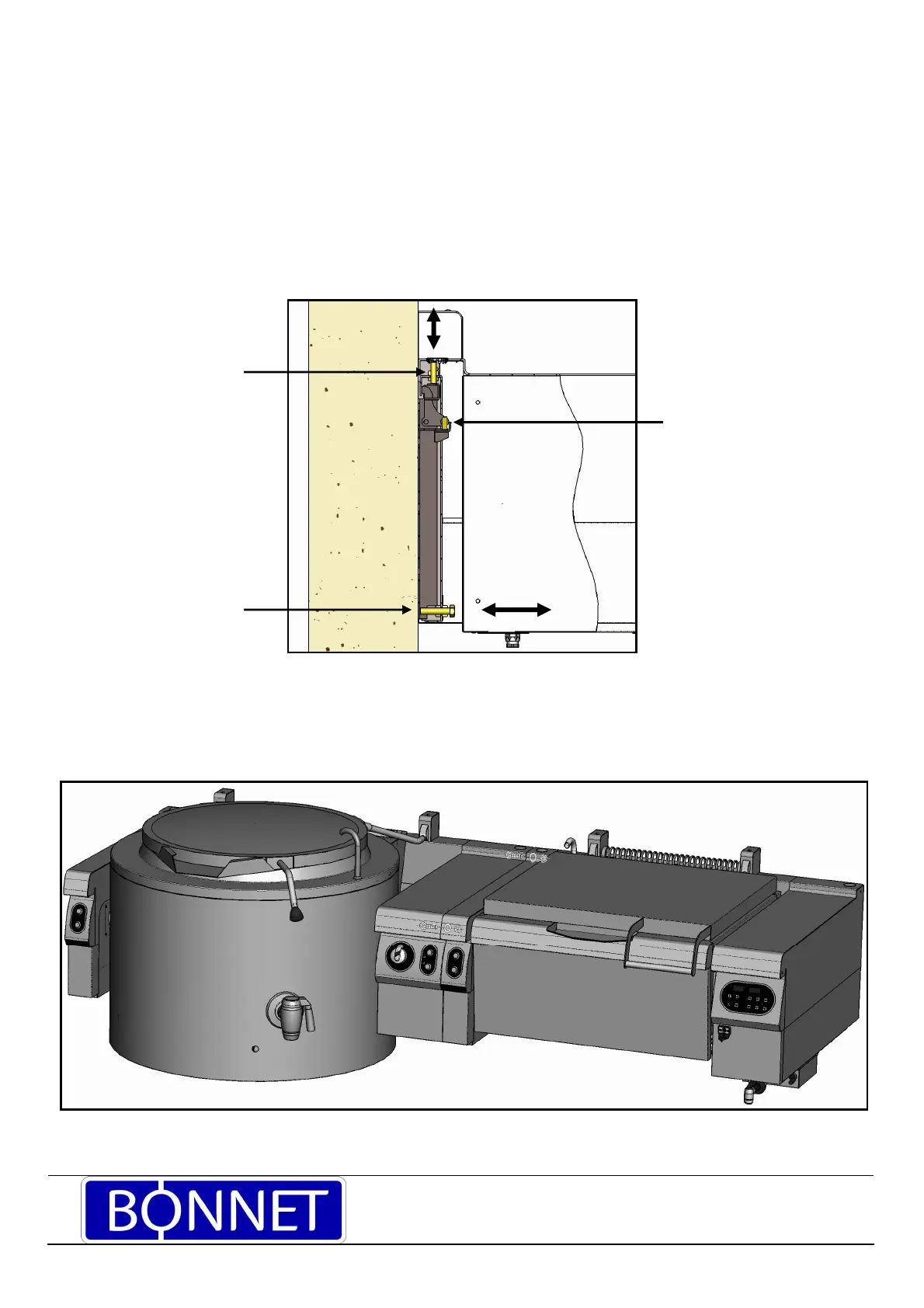

It is advisable, when cantilevering equipment off a concrete wall to comply with the following points:
- The reinforced concrete should be of at least 30 N/mm2 (C20/25) standard
- Use SPIT FIX 12/40 rawl bolts or equivalent (6 for ranges).
- The rawl bolts require a 12mm diameter hole at least 72mm deep (Note: the minimum distance
between the rawl bolt hole and a side wall or corner is 95mm).
- Hook the first unit onto its supports.
- Flatten it against the wall using the adjuster screw in the bracket
- Adjust the height (900mm), and level right to left using the top adjuster.
- Level front to back with the lower adjuster.
- Tighten the nuts and the lock nuts.
- Fit the other units in the same way.
- Fix adjacent units together, at the rear through the sides of the flue vents and at the front through the front
edge, in both cases using 5 x 16mm setscrews and 5mm washers.
Screw to adjust
the distance to
the
wall
Height adjuster
screw
Level adjuster
screw
