4 INSTALLATION: CONNECTIONS
4.1 ELECTRICAL CONNECTION
Note: these units are fitted with a polarised electronic flame control unit.
Before connecting them ensure neutral is wired to neutral and phase to phase.
4.1.1 GAS BRATT PANS

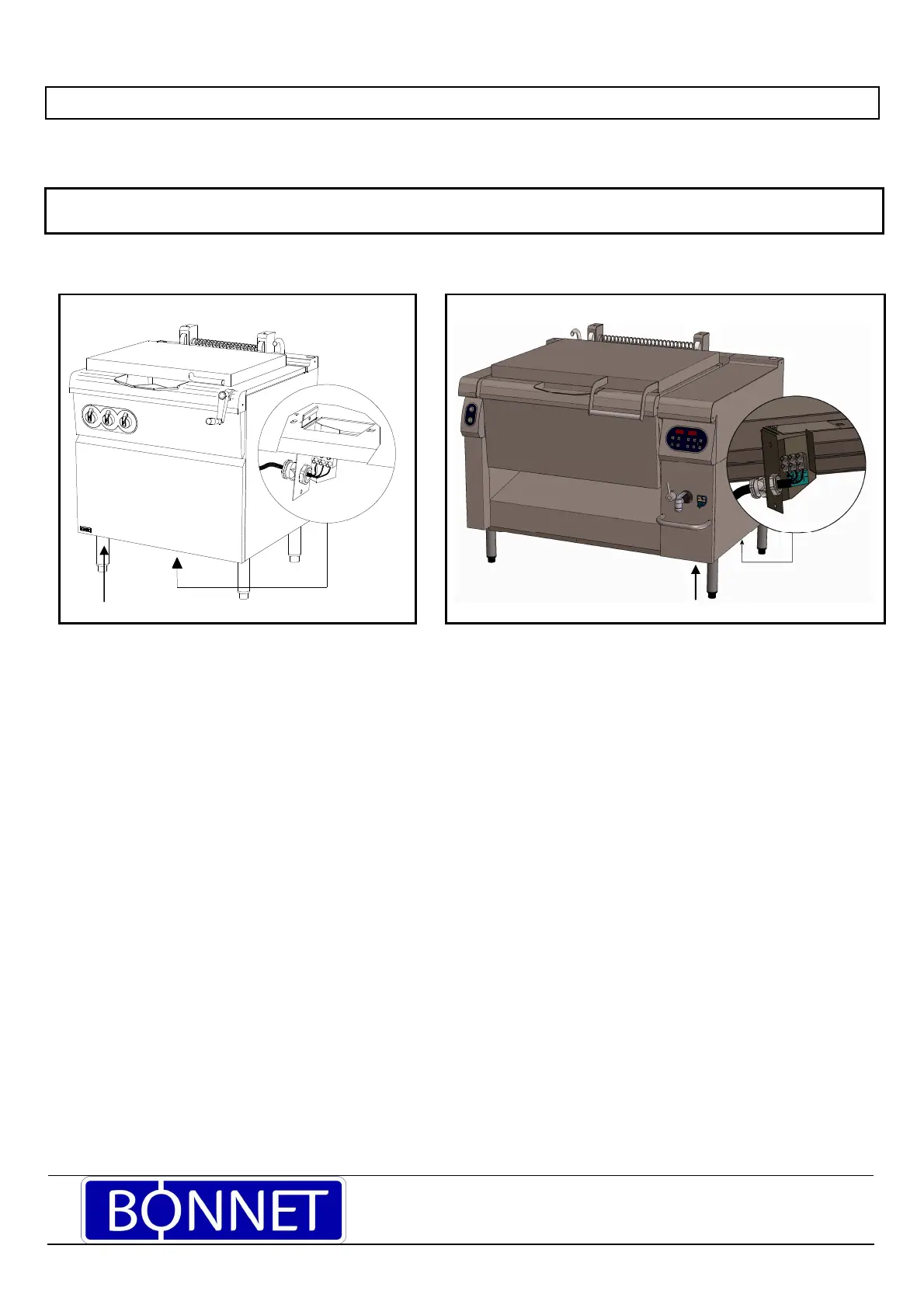

Advancia type bratt pan Advancia Plus type bratt pan
Location of the earth cross bonding terminal Location of the earth cross bonding terminal
The electrical connection is below the unit at the front irrespective of model.
- Undo the screw holding the terminal strip support plate.
- Tilt to the left.
- Thread the cable through the gland.
- Tighten the gland.
- Connect the wires.
- Refit the plate.
- Connect the earth cross bonding to the terminal provided.
• Only use H07 RN-F type supply cable 3 x 2.5mm
2
section
A local isolator must be provided for fixed supply wiring. All aspects of the installation should be in
compliance with current local regulations (In France: NFC 15.100).
The appliance must be connected to the earth. Different electric appliances must also be cross
bonded (all metallic structures at the same potential) by means of the terminal provided for this
purpose located next to the cable gland.
The manufacturer accepts no responsibility whatsoever if these instructions are not followed.
