BONNET GRANDE CUISINE
Registered office:
Rue des Frères Lumière - Z.I Mitry Compans
F-77292 MITRY MORY Cedex
65 dm
2

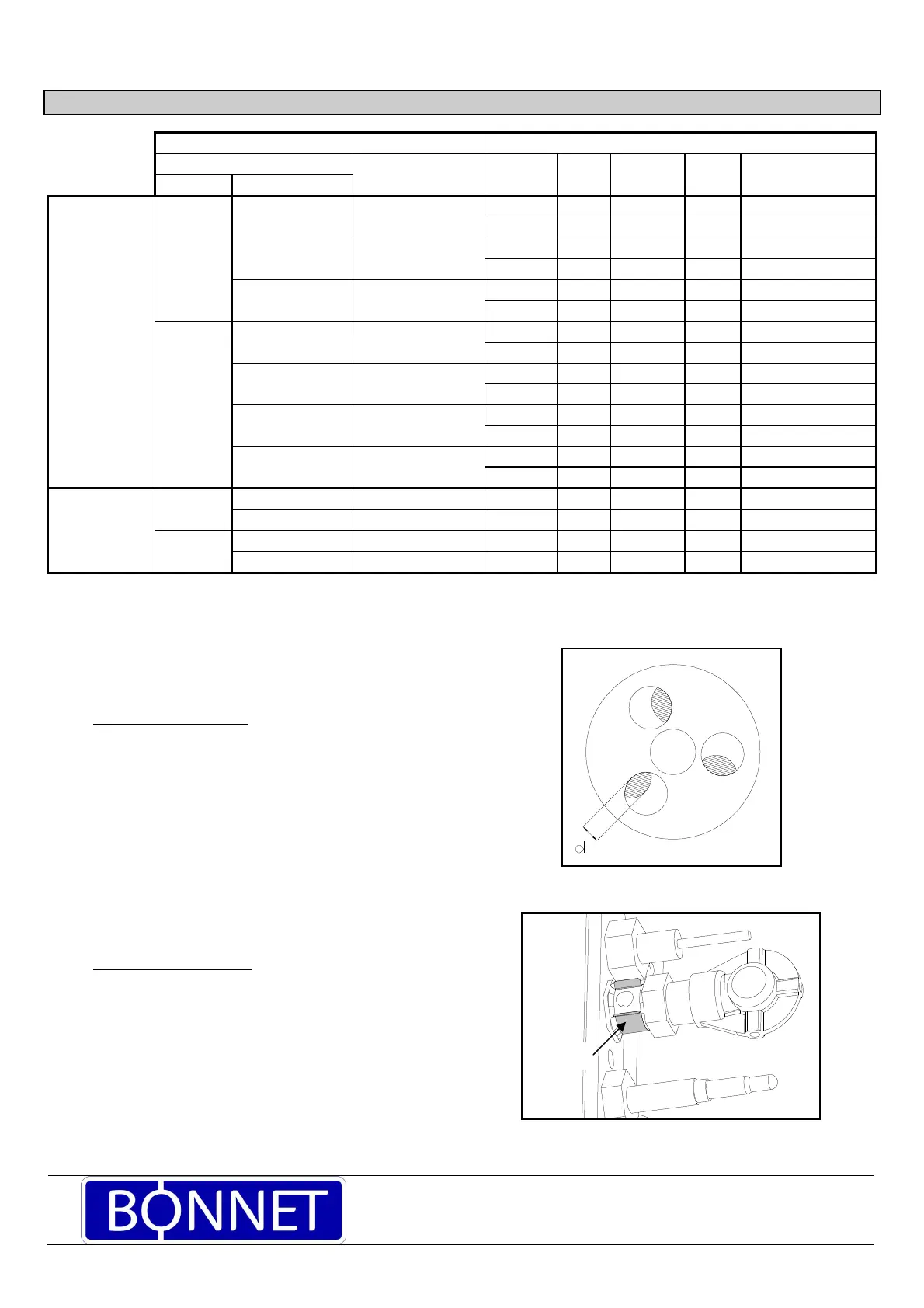

BRATT PAN
GAS JETS
Designation Pressure Burner No. Diameter d Code
Family Type (mbar)
type
(1/100th) (mm)
Burner Natural G 20 / G 25 20 / 25 BP 4 165 5 311 131-165
Gas BS G/D 2 195/175 7/5 311 131-195/175
G 25 20 BP 4 185 5 311 131-185
BS G/D 2 220/195 7/5 311 131-220/195
G 25*** 25 BP 4 170 5 311 131-170
BS G/D 2 205/185 7/5 311 131-205/185
L.P.G G 30 28-30 BP 4 100 7.5 311 131-100
BS G/D 2 115/105 9/7.5 311 131-115/105
G 31 30 or 37 BP 4 110 7 311 131-110
BS G/D 2 125/110 9/7 311 131-125/110
G 30 or G 31* 50 BP 4 95 6.5 311 131-95
BS G/D 2 105/100 9/6.5 311 131-105/100
G 31** 50 BP 4 100 6 311 131-100
BS G/D 2 120/110 8/6 311 131-120/110
Pilot Natural G 20 / G 25 20 / 25 - 1 41 - 310 273
Gas G 25 20 - 1 45 - 311 172
L.P.G G 30 or G 31 28-30 or 37 - 1 25 - 310 274
G 30 or G 31 50 - 1 25 - 310 274
BSG: Left hand secondary burner BSD: Right hand secondary burner
* Configuration valid only for propane 50 mbar in Austria
** Configuration not permitted in Austria *** Configuration valid only in Netherlands.
RA: Air adjustment
Air adjustment sleeve must be set to the
dimensions given for “d“ above.
.
Pilot air adjustment (Valid for all models)
Airflow can be adjusted using the collar that
obstructs 1 of the two primary air holes.
Collar
