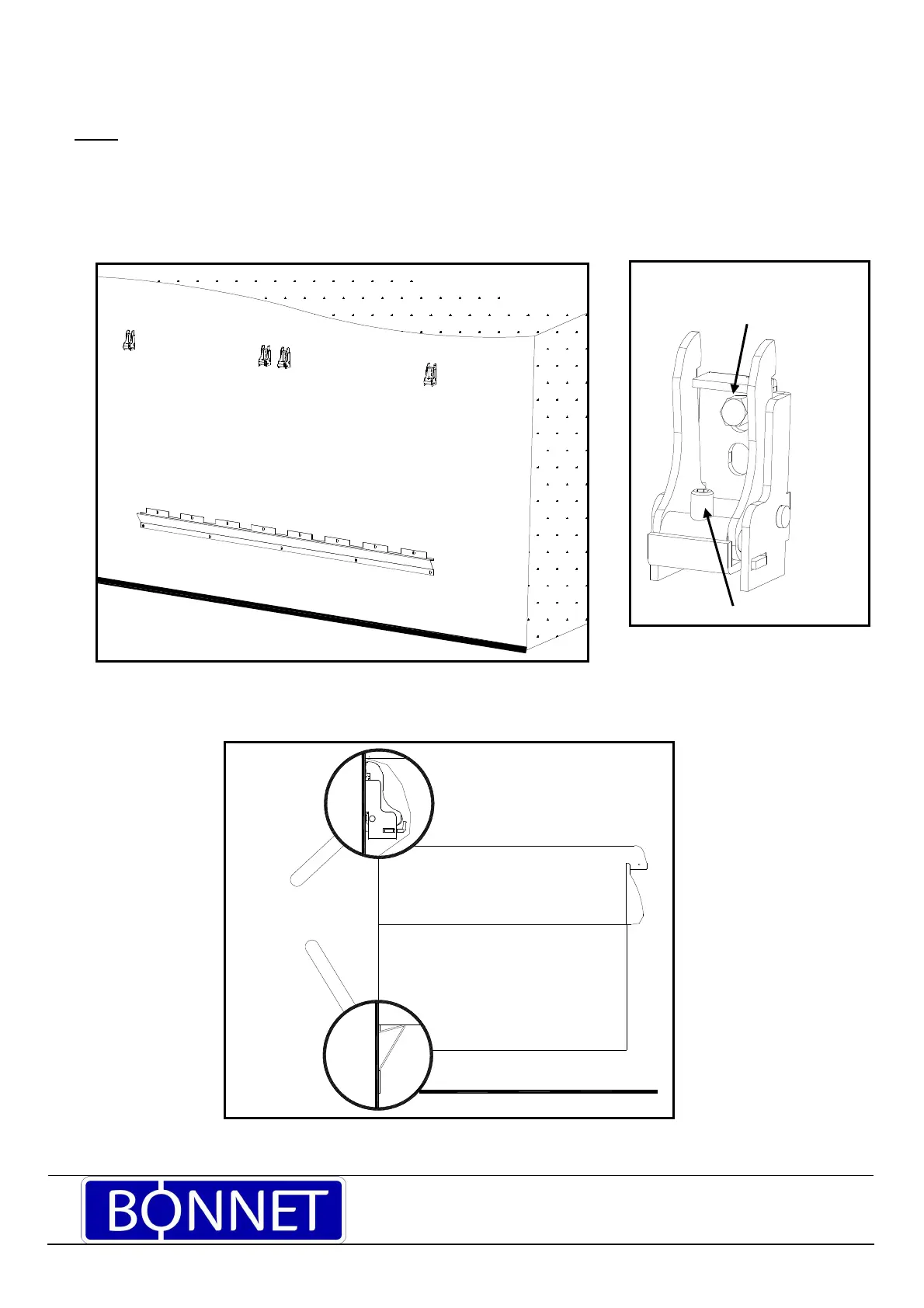

- Drill through 5mm ∅ holes for the fixing brackets. Use the top holes (2 fixing brackets per unit).
Note: Where it isn’t possible to drill through the top holes (Service runs, wall reinforcing...) use the
bottom holes.
- Remove the template.
- Enlarge the fixing bracket holes to 8mm ∅ and to a depth of at least 65mm.
- Bolt the fixing brackets to the wall. Use HSA-R M 8 x 75mm rawlbolts or equivalent.
- Open the brackets to their maximum using the central screw
Bracket open
Opening screw
- Position the units on the brackets and tighten the brackets fully.
Note: The units should rest on the support beam
Support
beam
Fixing bolt
