BOOM TRIKES V2 Automatic - Electrical System and Troubleshooting; Fuse and Relay Identification

5.0 FUSES, RELAYS
ALWAYS FIND AND RECTIFY THE FAULT THAT LED TO A FUSE BLOWING BEFORE YOU
REPLACE IT: NEVER USE ALTERNATIVE METHODS OF BRIDGING THE ELECTRICAL
CIRCUIT (E.G. WIRE).

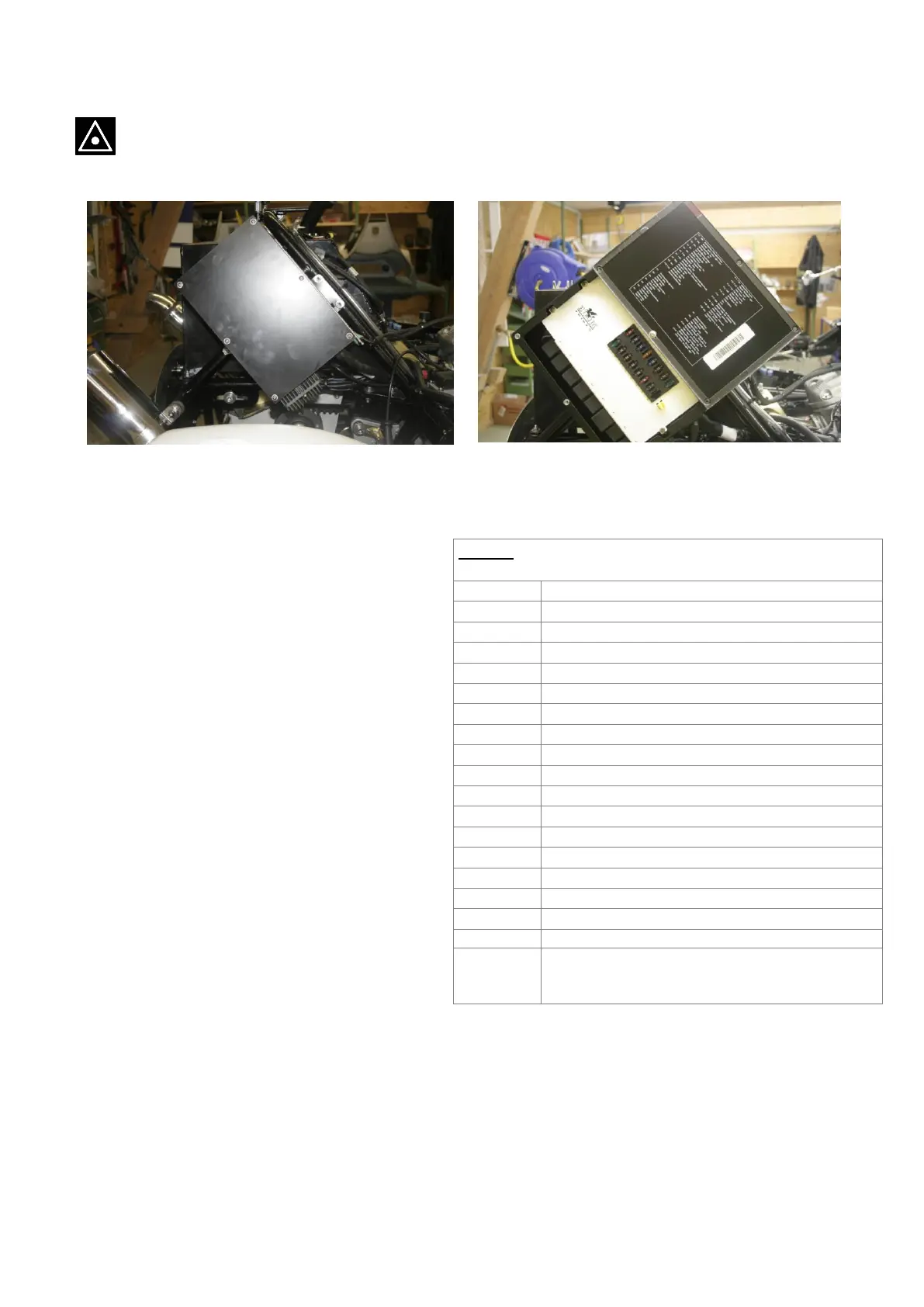

Fig. 30 Fig. 31
Fuses and relays are located in the safe-box besides the engine.
Relays:
K1 = Power supply
K2 = Starter relay
K3 = Fuel pump relay
K4 = Fan relay
K5 = Upkeep relay
K6 = Starter (externally)
K7 = Indicator relay
K8 = Dipped headlights relay
K9 = Full beam relay
Relays underneath the plastic tank-dummy:
K10 = Dipped headlights Jet-Lights left
K10F = Full beam Jet-Lights left
K11A = Dipped headlights Jet-Lights right
K11F = Full beam Jet-Lights right
Also see page page 38 - 39
35
Fuses:
F1 10A
Ignition lock/Brake light/Horn
F2 15A
Starter relay K2
F3 15A
Fuel pump relay K3
F4 5A
Engine control unit
F5 5A
Radiator fan relay/Decoder K4
F6 7.5A
Parking lights links
F7 7.5A
Parking lights right/Instruments lights
F8 30A
Jet-Lights left
F9 30A
Jet Lights right
F10 7.5A
Dipped headlights left
F11 7.5A
Dipped headlights right
F12 7.5A
Full beam left
F13 7.5A
Full beam right
F14
Free
F15
Free
F16
Free
F17 40 A
Starter relay K6 (externally)
F18 7.5A
Alarm system (facultative)
F19 15A
Alarm system (facultative)
F20 60A
Main fuse at battery
