5.2 MAGCODE POWERSYSTEMPRO 12/24V
Important informations for the outdoor use of the Power System 12/24 V
(Hints by Company MagCode):
To extend the operational life span of this product, the following measures should be taken:
- after the outdoor use of the Port clean it quickly with a cloth
- from time to time remove cutting debris on the side of the contact of Port and Clip with an adhesive
strip.
- Every 1 2 months spray some contact spray on Port- and Clip contacts.
Attention:
The MagCode PowerSystemPro 12/24V is outfitted with a mechanic bayonet cap. It can be cut
without unlocking under load, what can cause damages and/or a malfunction of the system.
Thus always unlock manual!
NEW:
As of now available retrofittabel problem-free:
Covering for Code PowerPort 12V/24V and MagCode PowerPortPro 12V/24V.
More detailed product informations (f. e. installation manual) on our Homepage (www.magcode.com).

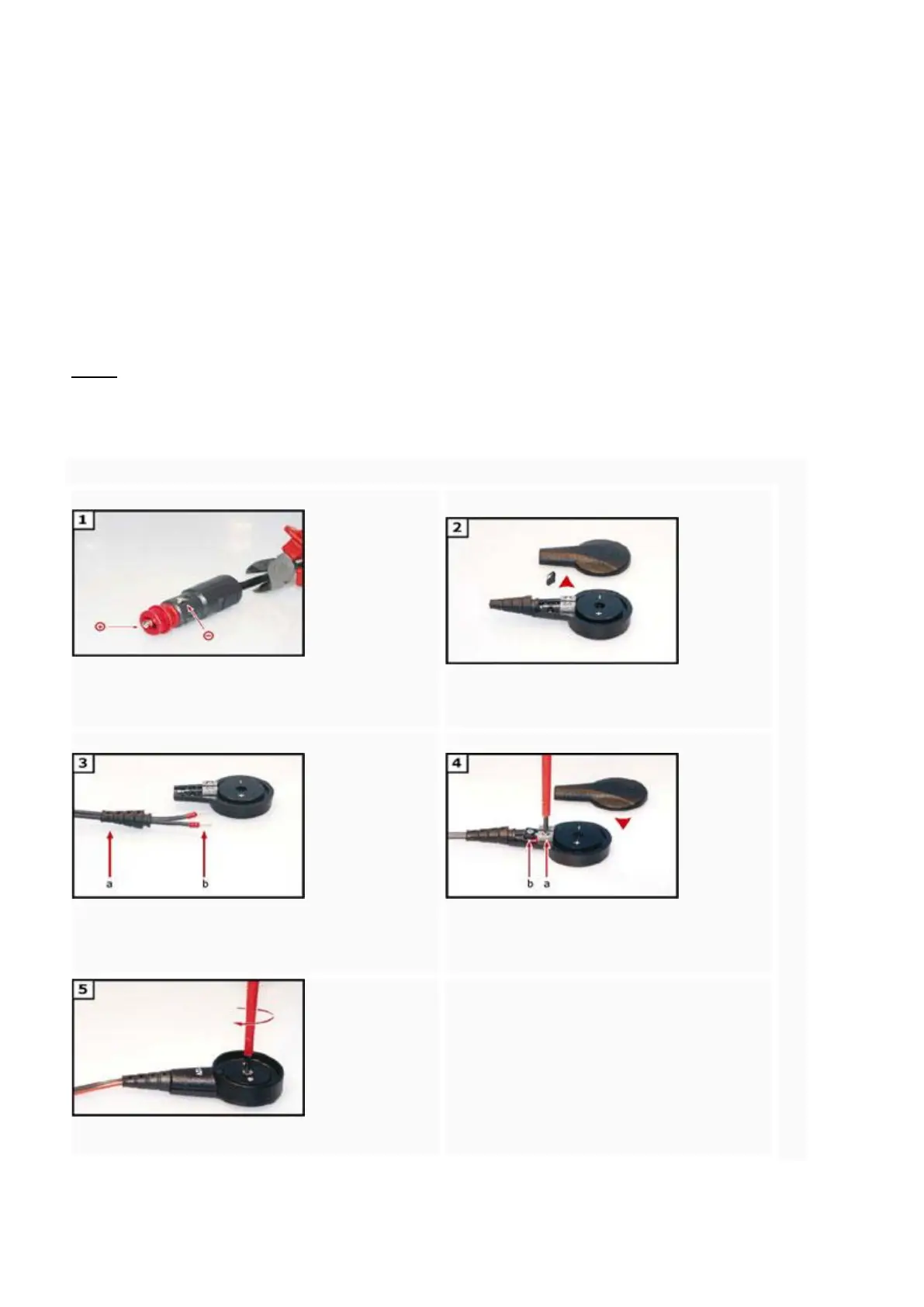

1. Cut-off existing plug -
notice polarity.
2. Open MagCodePowerClip and
remove pull relief.
3. Cut grommet to size for thicker
cables (3a) and apply multicore
wiring sleeves (3b).
4. Fix cable ends in screw terminals
(4a)(notice polarity) and mount pull relief
(4b) and grommet.
5. Close housing with screw - Ready!
37
