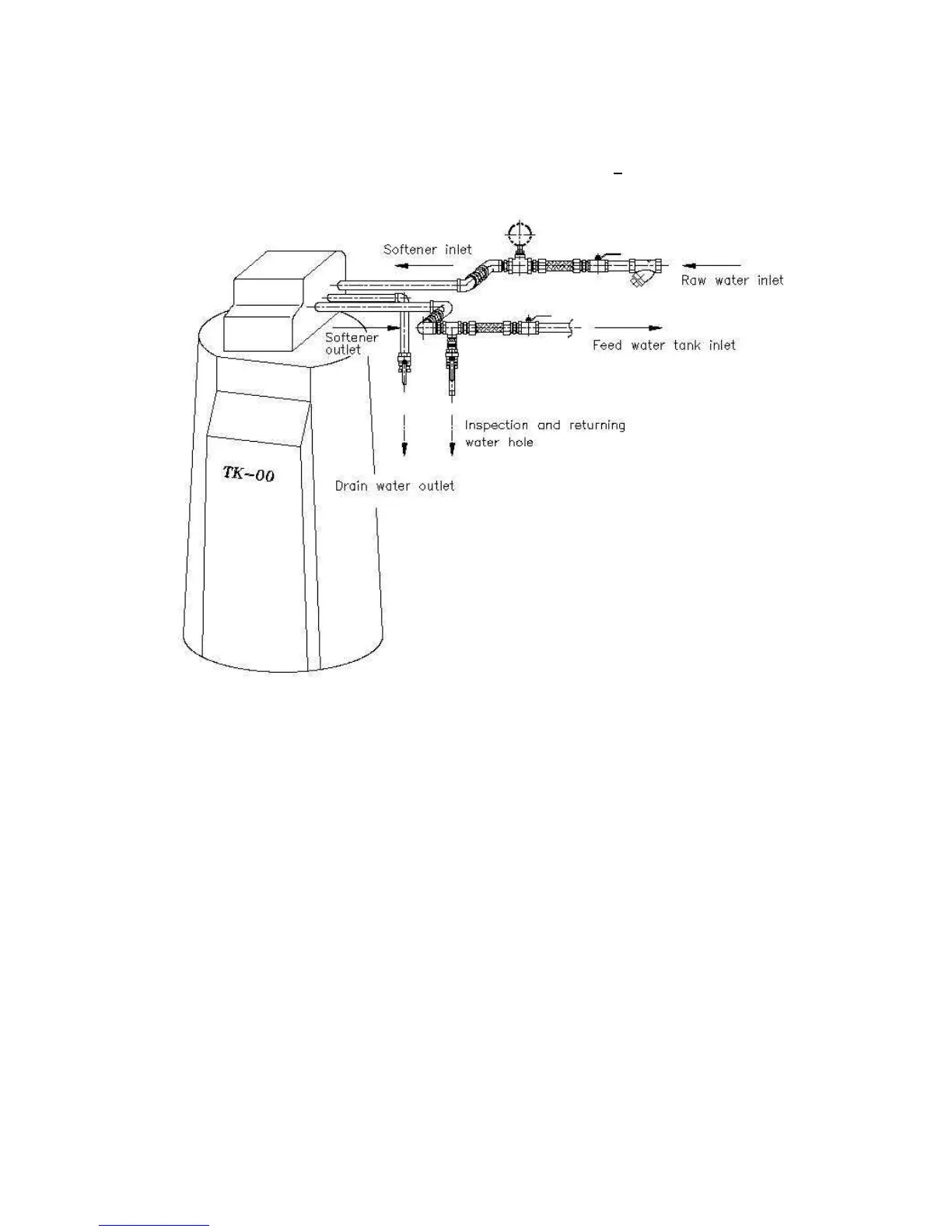

7-3 Piping Diagram for Feed Water Pump and Feed Water Tank
Note
1. The length of each pipe is to be as built.
2. Piping connection of softener is to be TK -12, 20, 30, 40.
3. If softener inlet pressure(water head) is 1.5 Kg/cm2 and below, the pressurizing pump is to be installed.
