1) The area where the air compressor will be installed should be clean, dry and well ventilated.
2) Use current with the correct voltage, deviation ±5%.
3) Keep the oil level at the red indicator.
4) Recommended oil for the compressor is SAE30 or L-DAB100 when the indoor temperature is above 10°C and SAE10 or L-DAB68 when the temperature
is below 10°C.
5) Open the outlet valve, set the pressure switch to On position. Allow the air compressor to run for 10 minutes without load to confirm lubrication of the
moving parts.
6) Check the tension of V-belt. It is correct when you can push it with your finger 10-15mm down in the center of the belt.
7) Select the correct power supply according to the parameters shown on the motor nameplate.
The compressor is controlled by the pressure switch when operating normally. It can stop automatically when the pressure increases to the maximum and
start as soon as the pressure drops to the minimum. The pressure value is adjusted at the factory. Do not change it. Once you turn off the motor, the com-
pressed air in the discharge pipe should be released through the release valve under the switch. This is a necessary point for starting otherwise the motor

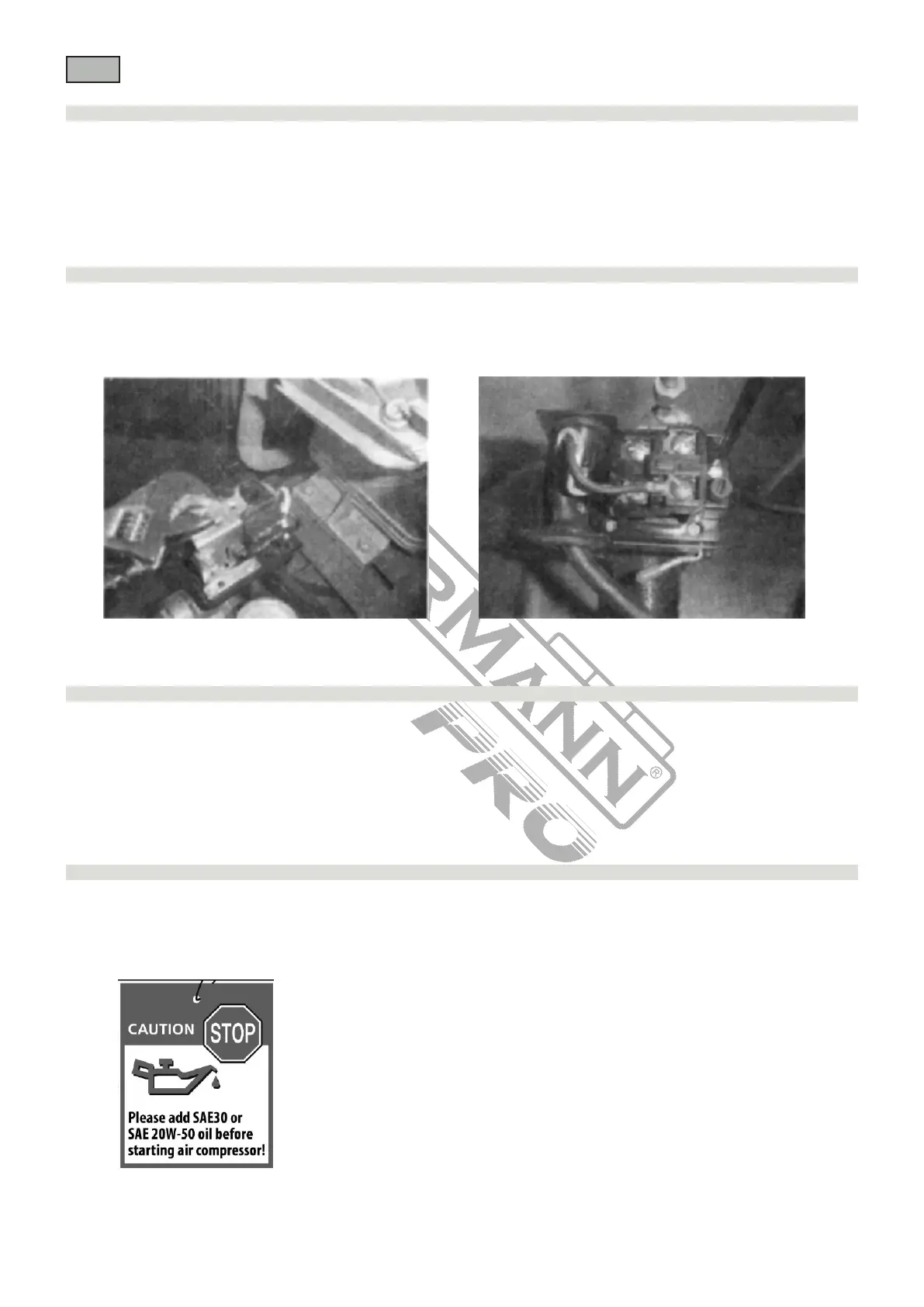

may be damaged. The pressure value can be adjusted by turning the adjusting bolt on the switch (figure 1 or figure 2).
1) Do not unscrew any part of the connecon when the container is under pressure.
2) Do not disassemble any electrical part before unplugging.
3) Do not adjust the safety valve carelessly.
4) Do not use the compressor where the voltage is too low or too high.
5) Do not use the metal part or electric cable smaller than 4mm
2
and more than 5m long.
6) Do not disconnect the power plug to stop the compressor. Set the switch to the O posion.
7) If release valve does not work as the motor stops nd the cause immediately to prevent damage to the motor.
8) Lubricang oil should be clean. The level should be at the red circle point.
9) Disconnect the plug from the outlet when you nish using.
10) The protector has set the protecon valve and parameters according to the working condions, do not change them.
1) Clean the crankcase and change the lubricang oil aer the rst 20 hours of operaon.
2) Check the oil level every 20 hours of operaon and replenish if necessary.
3) Open the drain cock under the tank every 60 hours of operaon.
4) Clean the crankcase, renew the oil, clean the air lter and check the safety valve and pressure gauge aer 120 hours of operaon.
Fig.1 Fig.2
