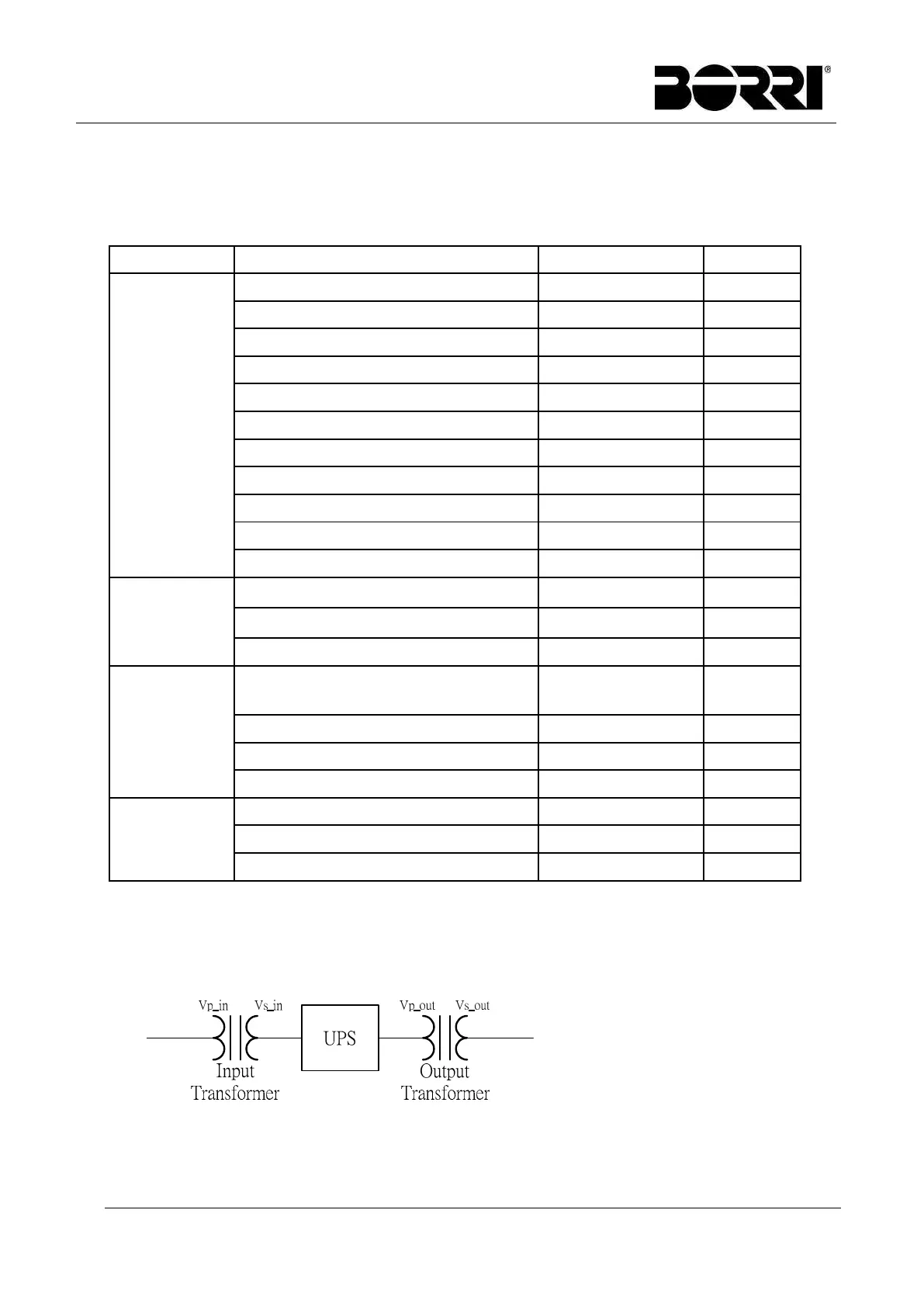

UPS parameters which can be modified by the user from the control panel are listed in
the table below.
Parameters List
Parameters Content Range Default
Battery
Independent/Common Ind. / Common Common
Total cell number 192 ~ 240 240
Capacity 1~1000 18
#1
Voltage temp. compensation Yes / No No
Detect the batt. connecting Yes / No Yes
Charger current 0.0~1.0 0.1
CV Charger voltage [V/cell] 2.000~2.550 2.300
FV Charger voltage [V/cell] 2.000~2.550 2.250
Low battery voltage [V/cell] 1.850 ~ 1.883 1.850
Weak battery voltage [V/cell] 1.600 ~ 1.800 1.600
Battery test 2 minutes Yes / No Yes
Output
Output voltage
220、230、240
230
Output frequency
50、60
50
Fine adjustment voltage -8 ~ 8 0
Transformer
Input transformer
Bypass
No
Input transformer ratio
#2
0.00~10.00 0
Output transformer No / Yes No
Output transformer ratio
#2
0.00~10.00 0
Other
Unit number 1 ~ 6 1
Number of units in parallel system 1 ~ 6 1
Set EPO logic NO/NC NO
#1
The default setting from 10kVA to 40kVA is 18 AH and 60kVA is 88AH.
#2
Transformer ratios can be calculated as following,
Input transformer ratio = Vp_in/Vs_in
Output transformer ratio = Vp_out/Vs_out
Note: for more information refer to the user manual
