Battery Test
Schedule
#1
To define the schedule for battery test.
Setting
Language Select the display language
Update Prog. Upgrade the software of LCD touch display.
General Set the turn off time of LCD backlight.
Date and Time Set date and time.
Peripherals
#1
Set communication card.
Parameters
#1
Set UPS parameters.
Please refer the parameters list table below.
Event Log Display the event log list of UPS.
Log on Load
Display the history curve of loading. (Up to 7 days
data).
Permission
Setting
Login/Logout Login with the password
#2
Password
Modification
#1
Chang user password.
Maintenance
#1
Screen
Calibration
Calibrate the touch screen.
#1
This function menu only appear after login, please refer to “Permission Setting”.
#2
Default password is “3366”.

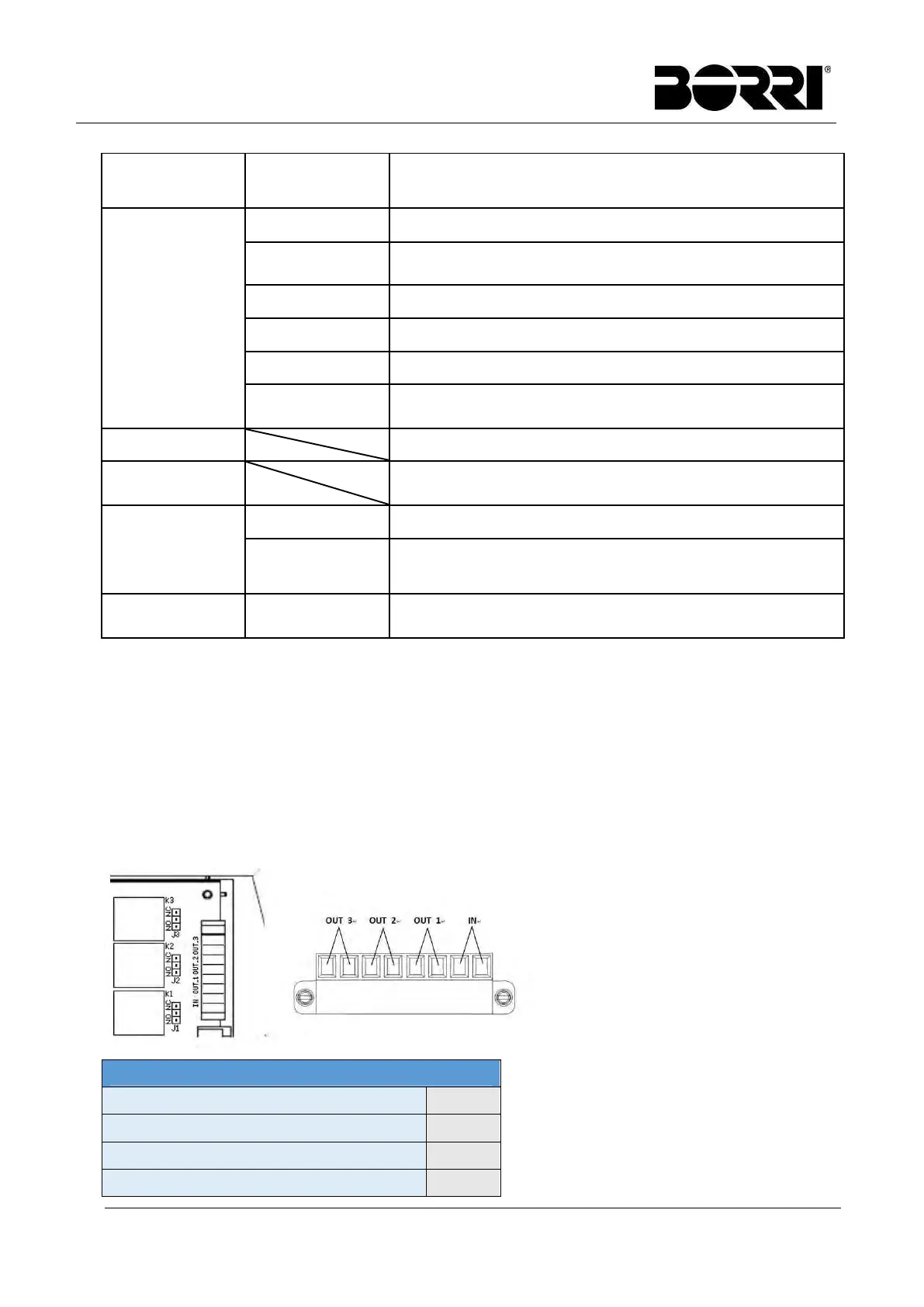

1.5 OUTPUT & INPUT CONTACTS
The UPS provides 3 output dry contacts and1 input contact.
Specification of Output dry contact：250 VAC/ 2 A; 30 VDC/2 A
There have 3 jumpers (J1~J3) to set NC/NO for each output contact.
To short the input contact for send a command to UPS.
The user can change the definition
for each contact, please contact
the local authorized service agent
to change the setting.
Default I/O Definition
General alarm OUT-1
Load on inverter OUT-2
Load on Bypass OUT-3
Normal mode IN
