Pagina 11 di 36 OMP68017 Rev. D 24/12/17

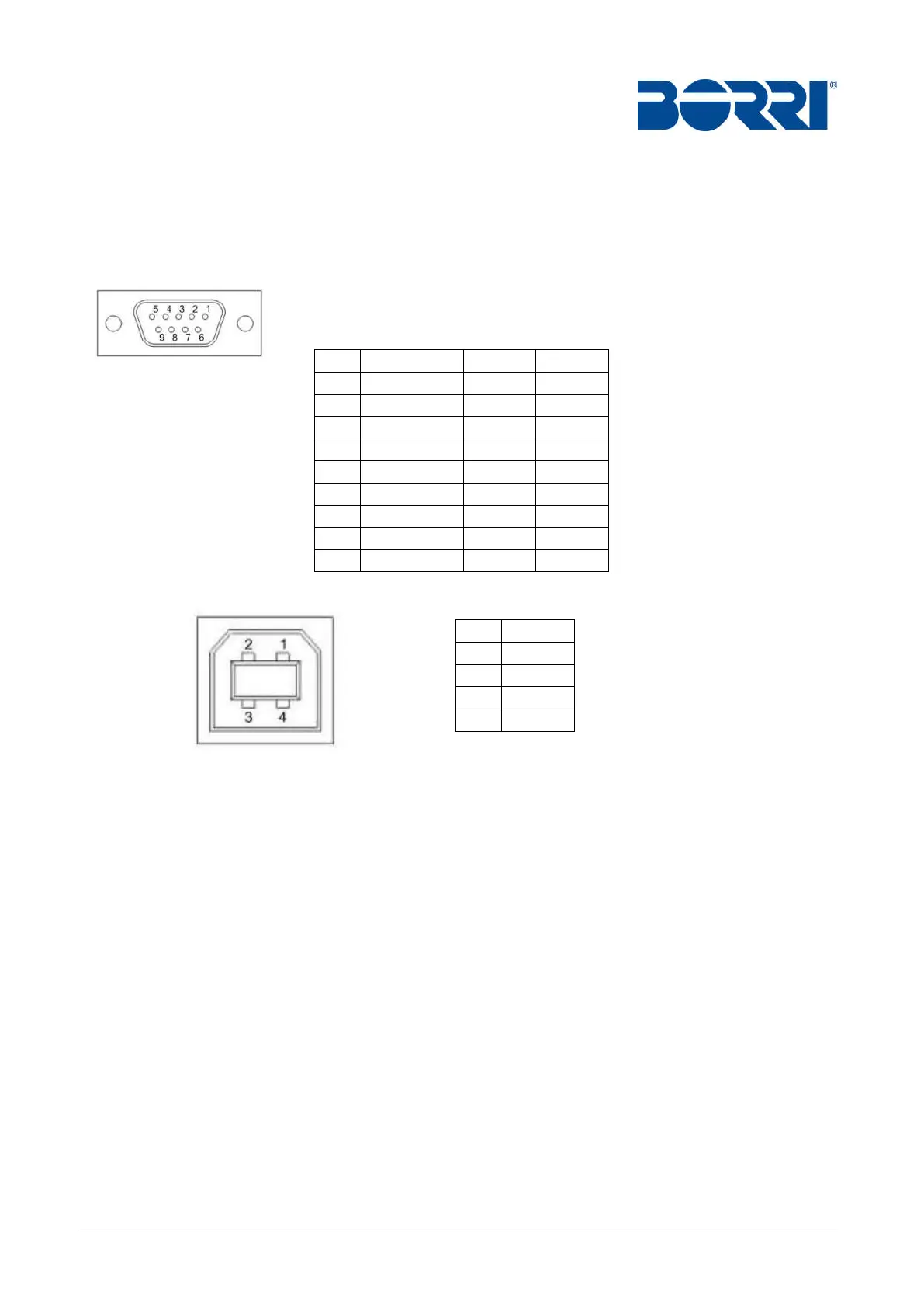

INTERFACE

The STS is equipped with three communication ports and one optional external

communication port.

RS-232 PORT

USB PORT

Pin

Definition

Type

Signal

1 N/A N/A N/A

2 TX Output

TX

3 RX Input RX

4 N/A N/A N/A

5 GND Earth N/A

6 +12 V Signal

N/A

7 N/A N/A N/A

8 N/A N/A N/A

9 N/A N/A N/A

Pin

Signal

1 VBUS

2 D -

3 D +

4 GND
