BACK PANEL

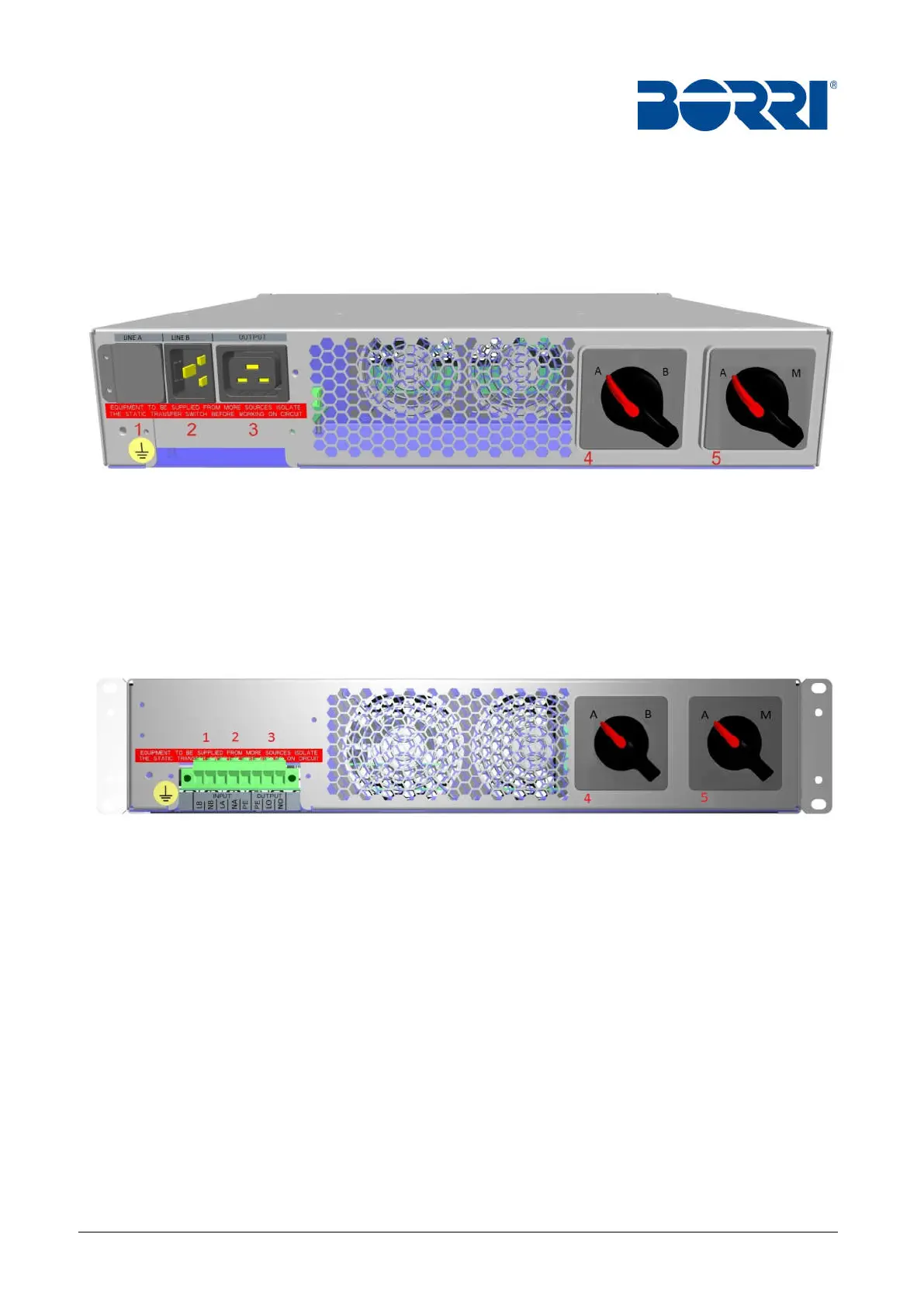

Shown below is the back of the device with the basic preliminary
Information (It will be revised)
STS / ITS – 16 (230V – 16A)
1. LINE B Input
2. LINE A Input
3. Output (NO to the left, LO to the right, PE to the top in the middle)
4. Line A Line B Switch (A/B). Manual Use line selection.
5. Manual Automatic Switch(A / M)
STS / ITS – 32 (230V – 32A)
1. Input/output connector (LB, NB,)
2. Input/output connector (LA, NA, PE)
3. Input/output connector (PE, LO, NO)
4. Line A Line B Switch (A/B). Manual Use line selection.
5. Manual Automatic Switch(A / M)
STS – 32 (230V – 32A)
1. Input and Output Connector
2. IEC Output sockets
