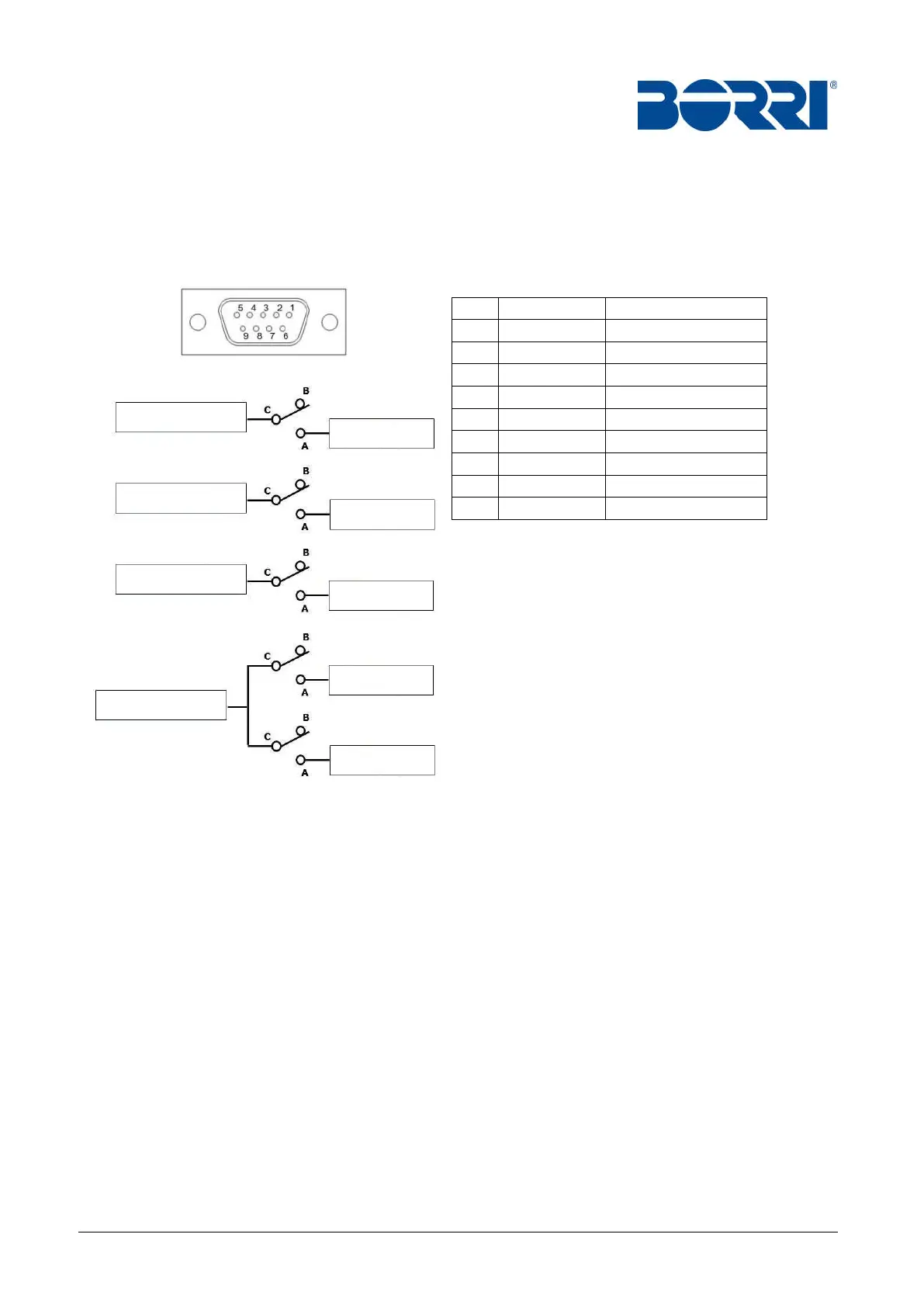

ALARM CONNECTOR

The STS is equipped with 5 configurable clean contacts. Each contact is made up of one

24Vdc/1A relay, to see the complete alarm list, refer to Appendix A.

Definition

Default Signal

1 Common 3

N/A

2 Relay 3 General alarm

3 Relay 4 Overload

4 Common N/A

5 Relay 5 High temperature

6 Common 1

N/A

7 Relay 1 Fault Source A

8 Common 2

N/A

9 Relay 2 Fault Source B

COMMON 1

COMMON 2

COMMON 3

COMMON

RELAY 1

RELAY 2

RELAY 3

RELAY 4

RELAY 5
