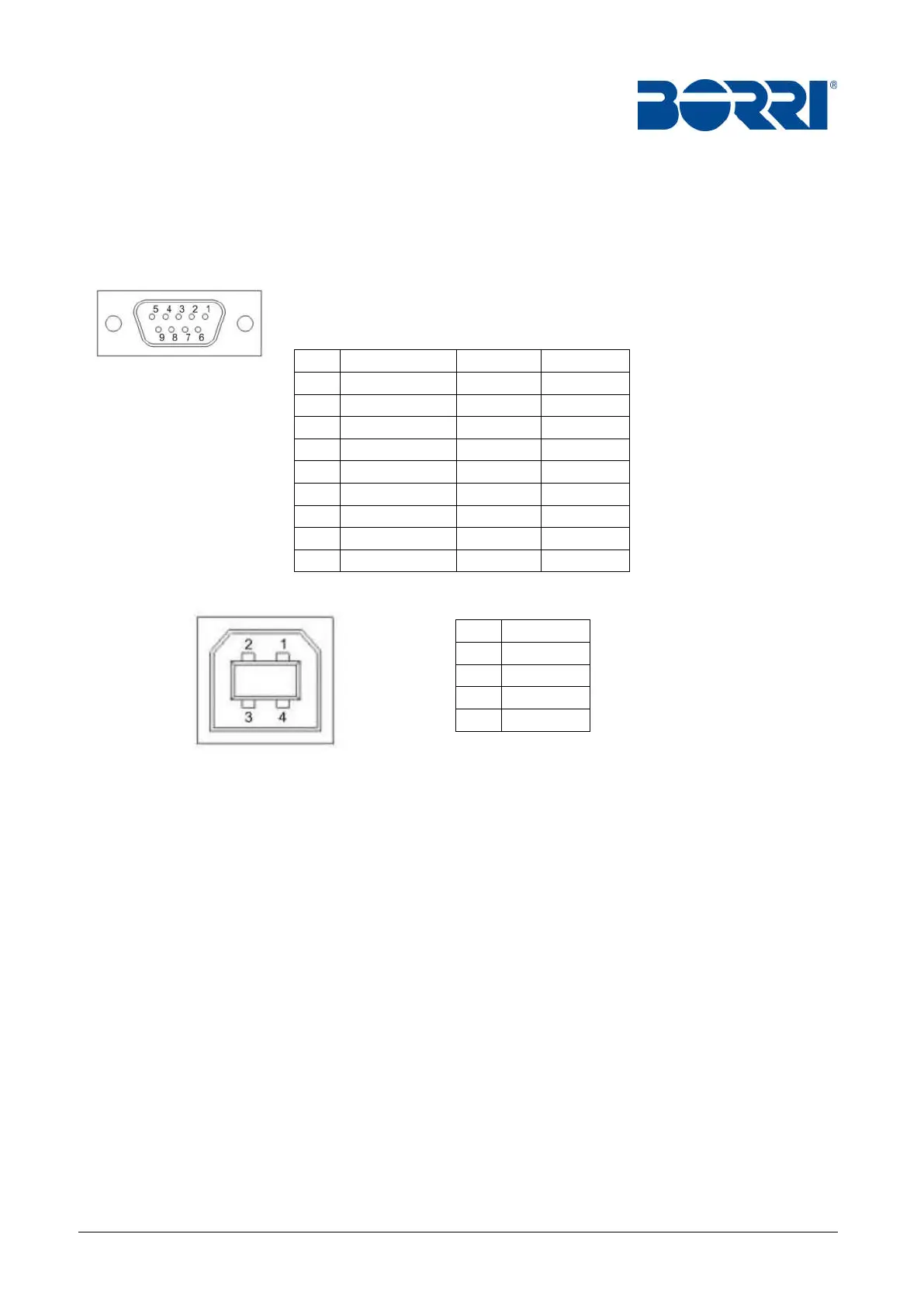

Pagina 27 di 36 OMP68017 Rev. D 24/12/17
INTERFACCIA
L’STS è provvisto di tre porte di comunicazione ed una porta di comunicazione esterna
opzionale.
PORTA RS-232
PORTA USB
Pin
Definizione
Tipo
Segnale
1 N/A N/A N/A
2 TX Output TX
3 RX Input RX
4 N/A N/A N/A
5 GND Terra N/A
6 +12 V Segnale
N/A
7 N/A N/A N/A
8 N/A N/A N/A
9 N/A N/A N/A
Pin
Segnale
1 VBUS
2 D -
3 D +
4 GND
