Operation
Initial Operation
Connecting the Charger to Household Electricity
Note the household voltage! The voltage of the power
supply must correspond to the specifications given on
the battery charger nameplate.
Plug the charger plug C3 of the power cord into the charger
socket C2 of the charger.
Connect the power supply cable (country-specific) to the
household electricity supply.

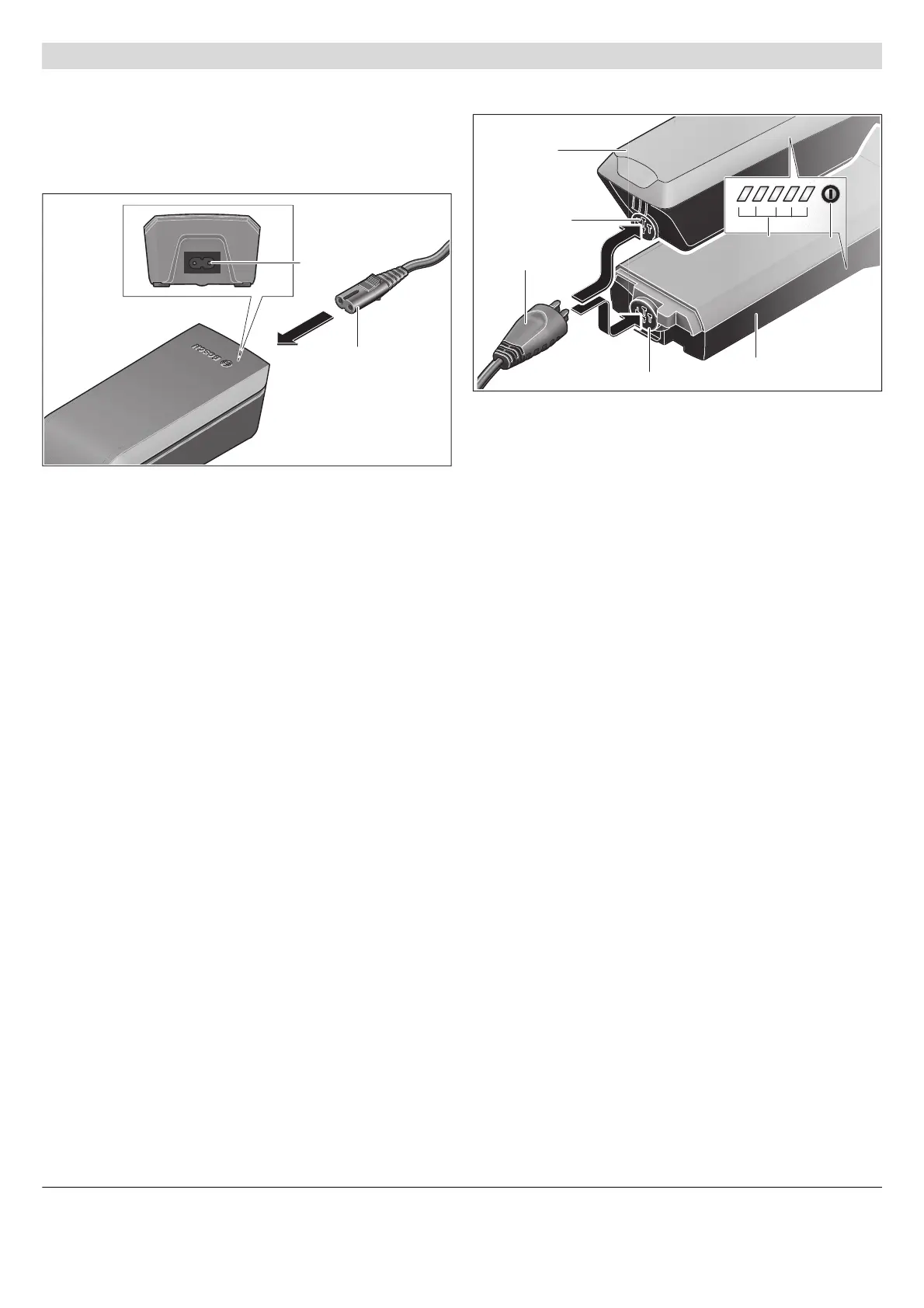

Charging the Removed Battery
C5 Charge connector
C6 Socket for charge connector
A2 Rack-type battery pack
A3 Operation and charge-control indicator
A4 Battery On/Off button
A8 Standard battery pack
Switch the battery pack off and remove it from the holder of
the eBike. To do this, read and follow the operating instruc-
tions for the battery pack.
Put the battery pack down only on clean surfaces. In
particular, avoid getting the charge socket and the con-
tacts dirty, e.g., with sand or soil.
Insert the charger plug C5 for the battery charger into the
socket C6 on the battery pack.
A3
C5
C6
A8
C6
A2
A4
