3 Installation
When installing the communicator into a supporting module or control panel, refer to the
compatible documentation for more information.
Caution!
Remove all power (AC and battery) before making any connections. Failure to do so might
result in personal injury and/or equipment damage.
3.1 Insert the SIM card
Follow these instructions for SIM card installation.
1. Break away the SIM card from the die-cut.
2. Insert the SIM card into the SIM card holder by sliding it into the card holder.
3. Make sure the gold contact side of the SIM card is against the module.

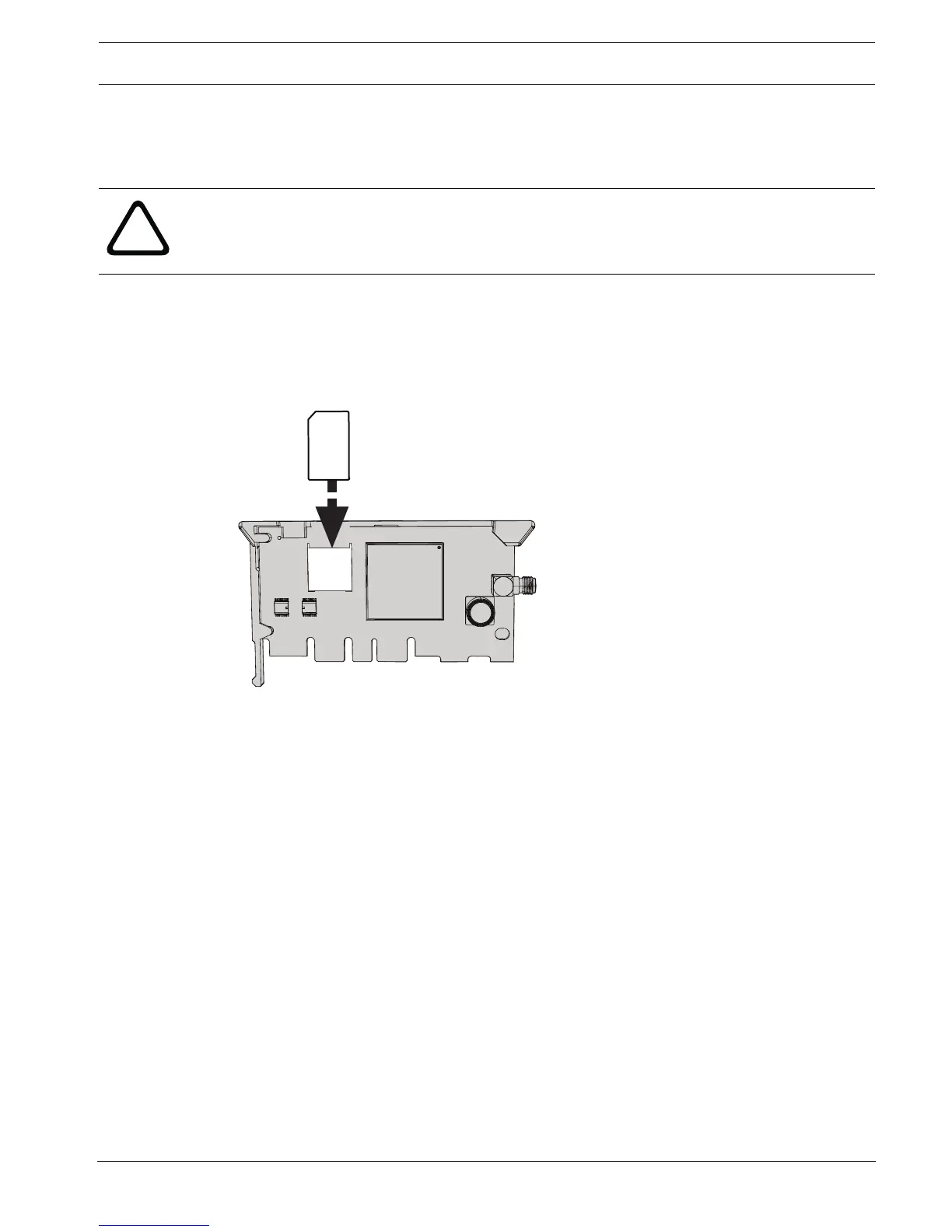

Figure3.1: Inserting the SIM card
3.2 Install the antenna
1. Put the magnetic antenna on top of the enclosure, or vertically on another metal surface.
2. Put the antenna cable through a knockout.
3. Connect the antenna cable to the module.
4. Make sure the antenna cable is inside the enclosure.
