8 en | Installation Conettix Cellular Communicators
2018.04 | 02 | F.01U.345.070 Installation Manual Bosch Security Systems, Inc.

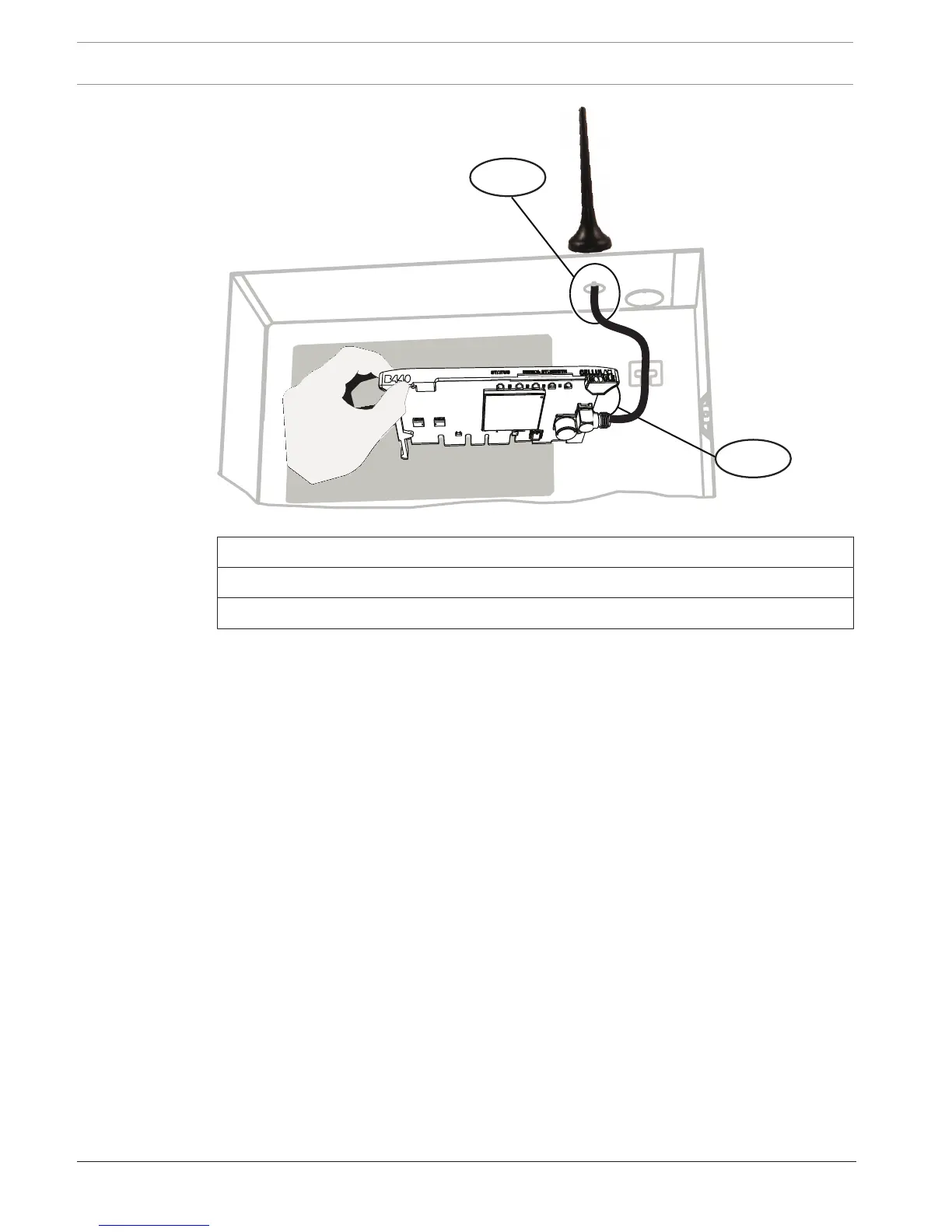

Figure3.2: Installing the antenna
Callout - Description
1 - Antenna routed through any knockout
2 - Antenna cable connected to the module
3.3 Install the communicator
Control panel/universal dual path communicator installation
1. Put the support leg into the support hole labeled X. Refer to Figure 3.3.
2. Align the PCB metal contacts with the on-board connector.
3. Push the module into place. The retention clip snaps closed and secures the module in
place.
