Conettix Cellular Communicators Installation | en 9
Bosch Security Systems, Inc. Installation Manual 2018.04 | 02 | F.01U.345.070
1
3
2

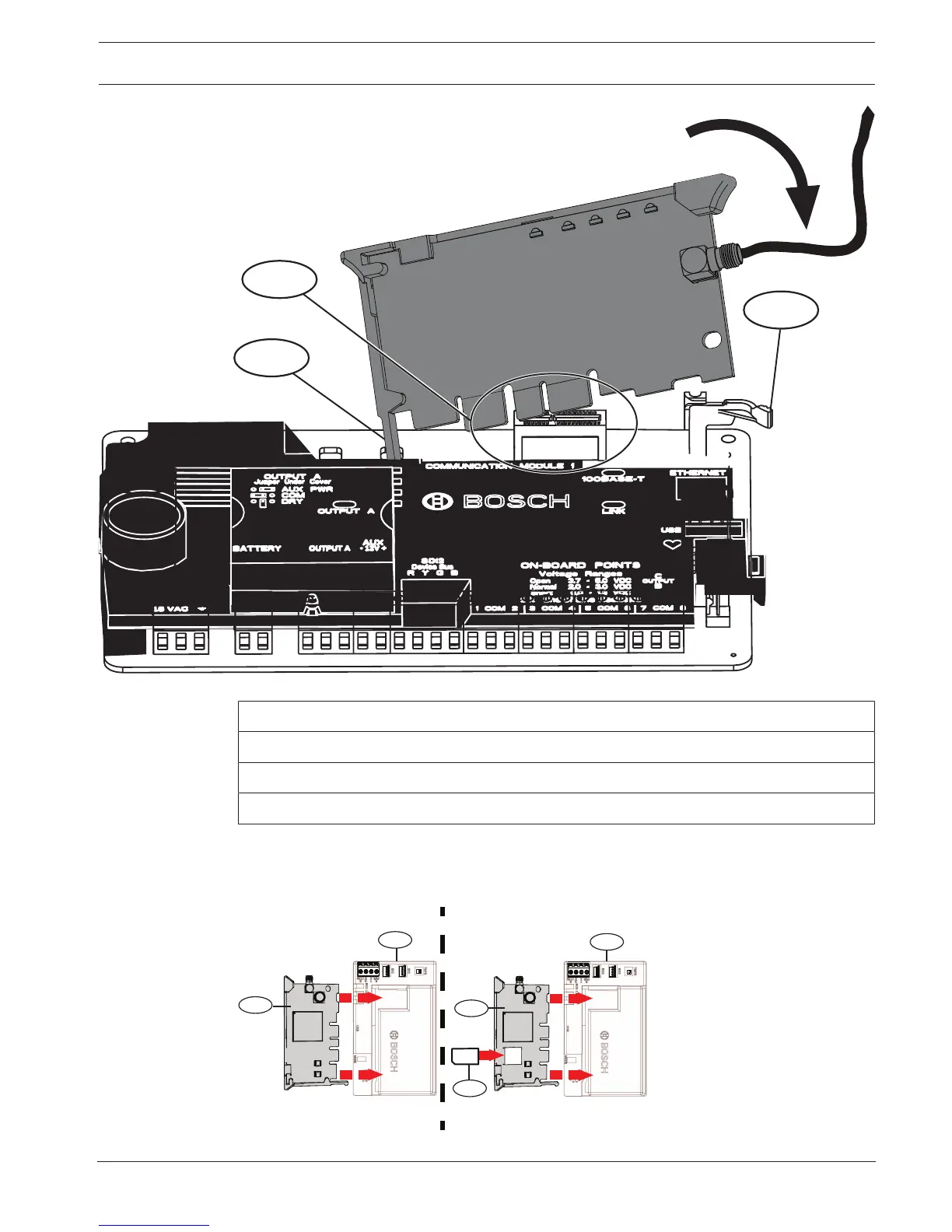

Figure3.3: Communicator installation (B6512 control panel shown)
Callout - Description
1 - Support leg inserted into the compatible device support holes
2 - PCB metal contacts resting on the on-board connector
3 - Plug-in communicator retention clip
Plug-in communicator interface installation
1. Insert the communicator into the slot of the plug-in communicator interface.
2. Push in until you feel it "click" into place.
3
1
2
3
2
Figure3.4: Communicator installation (B450 shown)
