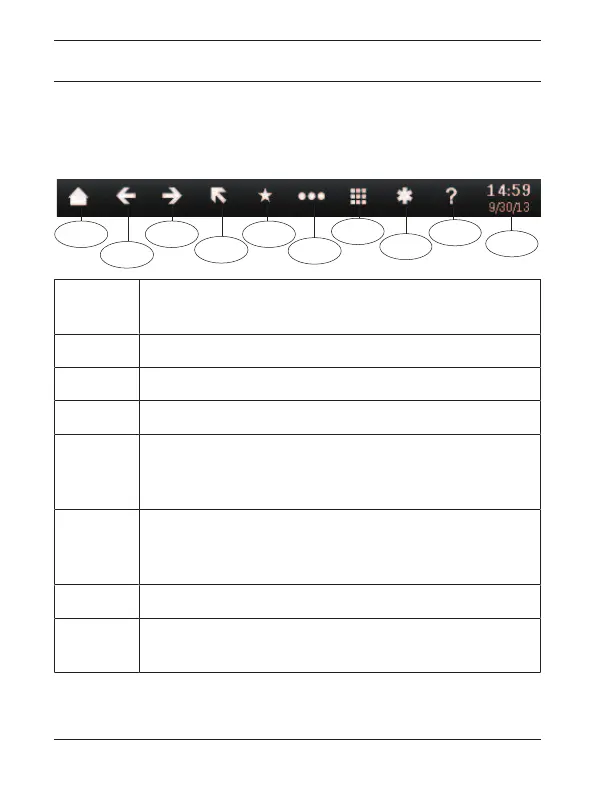

11.2 Ribbon bar overview
The Ribbon bar includes several icons and the date and time. Each icon
lights only when available.
10
9
8
7
6
5
4
3
2
1
Callout
Number
Description
1 Home. Press to return to the home (main) display.
2 Previous. Press to return to the previous screen or menu.
3 Next. Press to advance to the next screen or menu.
4 Esc. Press to exit a menu and return to the previous level.
Press and hold to exit and return to idle text from any
level of the menu structure.
5 Shortcuts. Press to open the Shortcuts menu to quickly
access functions you use most. Your security company
programs these shortcuts for you.
6 Menu. Press to open the Main Menu.
7 Keypad. Press to replace the main display area with the
keypad screen.

Bosch B4512 Specifications

General

Control Panel Type	Hybrid
Wired Zones	8
Outputs	2
Programmable Outputs	2
Onboard Ethernet	Yes
Cellular Communication	Optional
Series	B Series
Partitions	2
Type	Control Panel
Model	B4512
Manufacturer	Bosch
Input Voltage	16.5 VAC
Communication Formats	Contact ID, SIA
Power Supply	16.5 VAC
Backup Battery	12 V, 7 Ah
Operating Temperature	0°C to +50°C
Weight	1.5 kg
Compatibility	Bosch accessories
