5. Unused Battery Mode
The QC Test "Unused Battery" enables you to quickly
check new batteries in your inventory. The test can verify
up to 100 batteries in succession This test differs from
the Battery Test in that the decision is either pass or fail.
i Neither decision will tell you that a battery is bad, but
rather that the measured voltage and CCA fall in or out
of your requirements.
1. Select UNUSED BAT. MODE from the Main Menu
and
press
E.
2. Select ON and press E.
3. The tester displays the total number of Inventory Tests
completed out of 100. Select Clear Memory to clear
the results from memory and reset the total to 0 or
select Add To Memory to add the results to memory.
! Be sure to monitor the number of tests performed
and be ready to print the results as the number ap-
proaches 100. When the limit is reached you will no
longer be able to test until you clear all results from
memory.
4. Press
E to continue.
5. APPLICATION
Scroll to and select AUTOMOTIVE, MOTORCYCLE, or
MARINE.
6. BATTERY TYPE
Scroll to and select STANDARD, AGM FLAT PLATE,
AGM SPIRAL, or GEL where applicable.
7. BATTERY STANDARD
Scroll to and select the battery’s rating system. Not
all rating systems are available for each application.
Standard
Description Range
CA Cranking Amps 100-2000
CCA Cold Cranking Amps 100-2000
MCA Marine Cranking Amps 100-2000
EN Europa-Norm 100-2000
EN2 Europa-Norm 2 100-2000
DIN Deutsche Industrie-Norm,
German industry norm
100-1200
SAE Society of Automotive Engineers, the
European labeling of CCA
100-2000
IEC International Electrotechnical
Commission
100-1200
JIS
Japanese Industrial Standard, shown on
a battery as a combination of numbers
and letters.
26A17 thru
245H52
8. BATTERY RATING
Scroll to and select the rating units. Hold down the
or
to increase the scrolling speed.
9. VOLTAGE LIMIT
Scroll to select the voltage limit to be used for the
test.
10. Press E to start test. After several seconds the
tester displays the decision on the battery’s con-
dition and the measured voltage. The tester also
displays your selected battery rating and the rating
units.

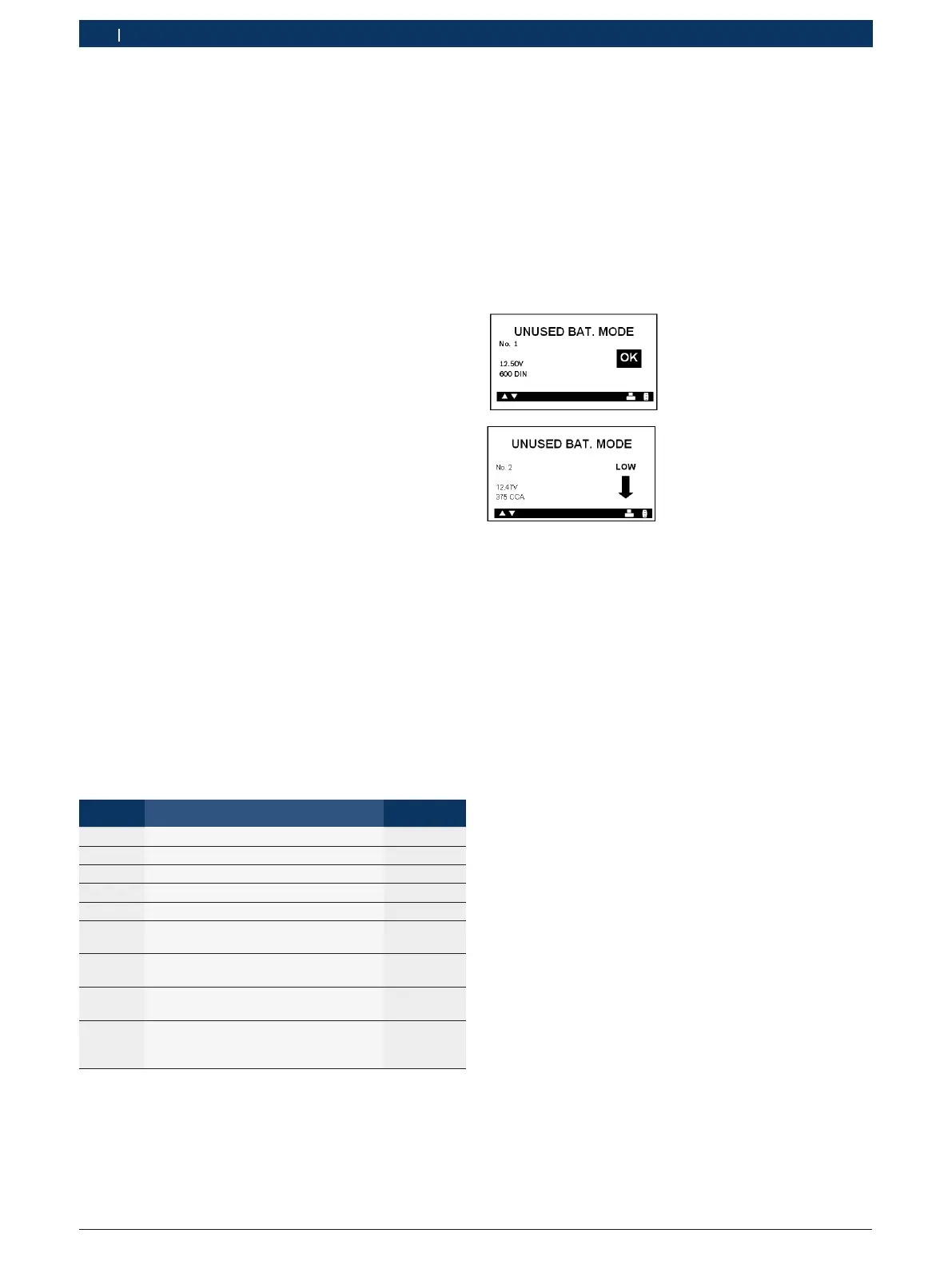

Fig. 2: Example of displayed results for a test of two batteries
i Press to print the test results or to return to the
Menu.
