Bosch Bulls Aminga E1 - Steel Suspension Fork Structure; Air Suspension Fork Structure

MY20B01-32_1.0_21.06.2019
18
Overview
3.1.2.1 Steel suspension fork structure

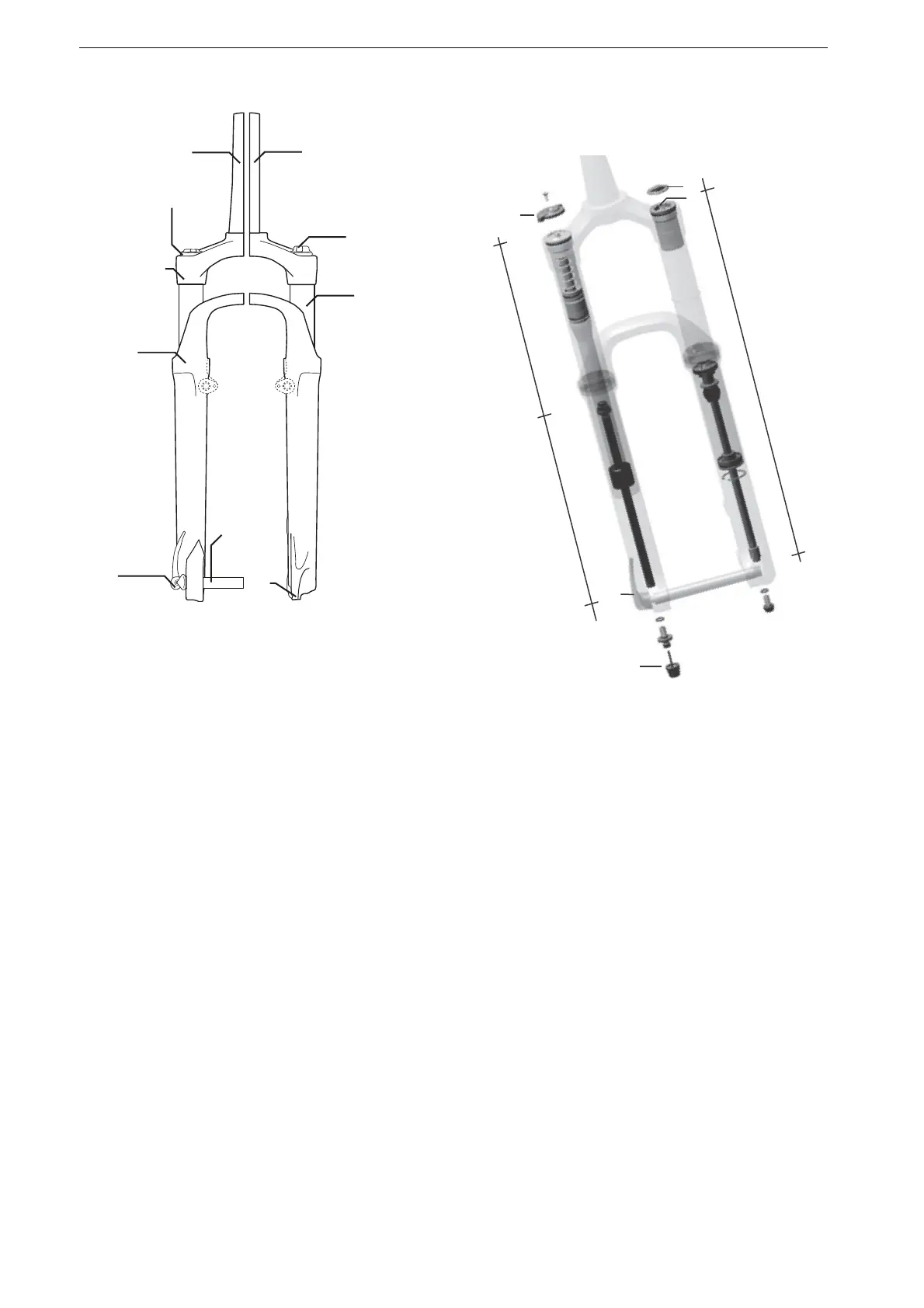

Figure 5: Example showing Suntour fork
The stem and handlebars are fastened to the fork
steerer (1). The wheel is fastened to the quick
release axle (6). Other elements: the compression
setting (2), crown (3), Q-Loc (5), dust seal (6),
fork end for quick release (7), stanchion (8) and
spring (9)
3.1.2.2 Air suspension fork structure
The pedelec's fork features both air suspension and
a compression damper plus a rebound damper in
some cases.
Figure 6: Example showing Yari fork
You can see the following components in the
diagram: Air valve (1), valve cap (2) fork lock (3),
quick release (4) and rebound damper
adjuster (5) and the assembly groups: Air
suspension fork (A), compression damper
assembly group (B) and rebound damper
assembly group (C)
1
1
2
3
4
5
6
7
8
7
A
B
C
1
2
3
4
5
A
B
C
